ACROS headset bearing set | IS41/28.6 | IS52/40 1 1/8" - 1 1/2"
From the tranquil town of Renningen, in the green state of Baden Württemberg, straight to your bike! Behind Acros is a group of passionate cyclists and engineers. Their motto: ride more, worry less.
This replacement bearing set for fully integrated headsets typically consists of two high-quality double-sealed stainless steel angular contact ball bearings, which are filled with optimized headset grease. The two sealing washers with double lip seal keep the grease safely inside the bearings and protect it from moisture and dirt. This is an IS version (Integrated System) with an outer diameter of 41 mm at the top and 52 mm at the bottom.
Technical data:
Material: Stainless steel, plastic
Type: IS (integrated)
Steerer tube: tapered 1 1/8" to 1 1/2" (1.5")
S.H.I.S. top part: IS41/28.6
S.H.I.S. lower part: IS52/40
Press-in dimension top Ø: 41 mm
Top offset: 6.5 mm
Press-in dimension bottom Ø: 52 mm
Offset bottom: 7 mm
Bearing seat top: n.a.
Bearing seat bottom: 45°
Outer diameter top: 41 mm
Outer diameter bottom: 52 mm
Overall height top: n/a
Overall height bottom: n/a
Bearing: Stainless steel - angular contact ball bearing, double sealed
Color: silver
Weight according to manufacturer: 50g
Weight when weighed: 52g

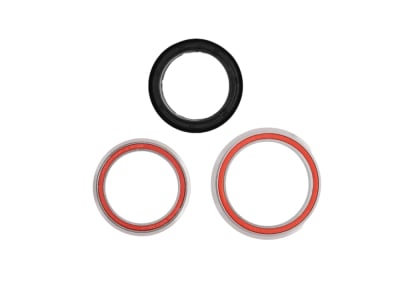

Scope of delivery:
1x ACROS headset bearing IS41/28.6 1 1/8"
1x ACROS headset bearing IS52/40 1 1/2"
1x centering ring with vulcanized seal
