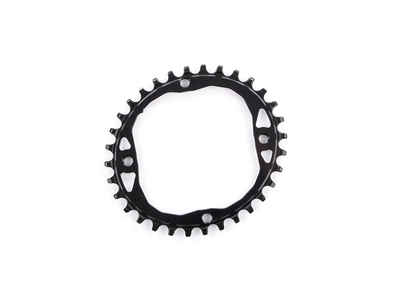

ABSOLUTE BLACK chainring oval 1x LK104 | narrow wide black
The chainrings from Absolute Black are CNC-milled from a single piece of aluminium and then anodized. This ensures a stiff and durable chainring. They were developed for 1x10 or 1x11 drivetrains. The chainrings have special teeth that prevent the chain from jumping off. The principle follows that of the SRAM XX1 chainrings. In conjunction with a SRAM Type2 or Shimano Shadow+ rear derailleur, which have a greatly increased cage preload, the chain is reliably held in position even without a chain guide.
The ovalization of the chainring increases performance by varying the drivetrain and optimizing resistance. When pedaling with the legs, the natural strengths and weaknesses are harmonized. This results in better use of the stronger muscle groups and compensates for the weaker muscles in the work stroke (shorter stroke).
The chainring with 30 teeth is supplied with special bolts and spacers to fit the 104 millimeter spider.
technical data:
Application: MTB
Material: aluminum 7075 Txxx
Technology: Narrow Wide
Bolt circle: 104 mm (standard)
Mounting: 4-arm spider
Number of teeth: 30, 32, 34 or 36 teeth
Compatibility cranks: all cranks with 104 mm standard bolt circle
Compatibility chain: 10-speed, 11-speed or 12-speed (SRAM Eagle)
Mounting: external
Chainline: 48 mm (30T), 48.5 mm (32T), 50 mm (34 and 36 teeth)
Ovalization:10.2 - 14.4%, maximum diameter at 110.5 - 116.3° (optimized for each chainring size)
Colour: black
Weights:
30 teeth - 35g
32 teeth - 39g
34 teeth - 42g
36 teeth - 53g
Scope of delivery: 1x chainring (30 teeth chainring additionally with chainring bolts and spacer)
