Description

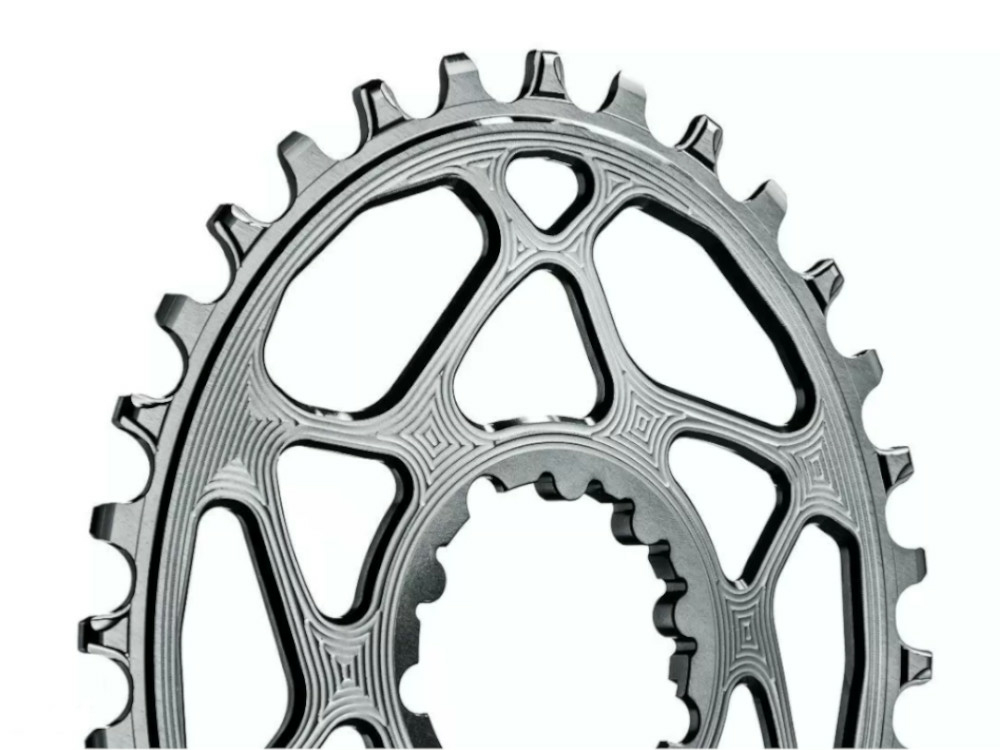

ABSOLUTE BLACK chainring Direct Mount oval BOOST 148 | 1-way narrow wide SRAM crank | titanium
SRAM's XX1 group ushered in a new era in mountain biking. A chainring at the front and a broadly graduated sprocket block at the rear adorn many bikes from Cross Country to Allmountain. Absolute Black has developed a combination of single chainring and spider that can be mounted on any SRAM GXP crank in groups XX1, X0, X9 or X7. The combination is screwed directly to the crank arm. This saves weight, is very stiff and ensures a clean and individual look. A 7075 Txxx aluminum alloy ensures low wear. The chainrings have special teeth that prevent the chain from jumping off. The principle follows that of the SRAM XX1 chainrings. In conjunction with a SRAM Type2 or Shimano Shadow + rear derailleur, which have a greatly increased cage preload, the chain is reliably held in position even without a chain guide.
The ovalization of the chainring increases the performance by varying the drive train and optimizing the resistance. When kicking with the legs, the natural strengths and weaknesses are brought into harmony. In this way, better use of the stronger muscle groups is achieved and a balance is created in the weaker muscles on the way to work (lower stroke).
This chainring is specially designed for the 148 millimeter BOOST standard. Due to the offset of 3 millimeters, the chain line optimized for the BOOST rear triangle.
Note: compatible with SRAM / Truvativ GXP and BB30 cranks . BB30 cranks are only compatible if it is the model with a longer axle . These can be recognized by the built-in 16 mm spacer on the drive side.
Technical specifications:
intended use : MTB
Material: aluminum 7075 Txxx
Technology: Narrow Wide
Mounting: SRAM Direct Mount
Number of teeth: 28, 30, 32, 34 or 36 teeth
Compatibility cranks : SRAM / Truvativ crank (XX1, X01, X0, X9, X7 ... etc.)
Compatibility chain: 10-speed , 11-speed or 12-speed (SRAM Eagle)
chain line : 52mm
Offset: BOOST
Range (ovalization): 10.2 - 14.4% (optimized for each chainring size)
Timing (force introduction): 110.5 - 116.3 ° after TDC (OT) (optimized for each chainring size)
Color: titanium
Weight according to the manufacturer: 28T (50g), 30T (55g), 32T (59g), 34T (66g), 36T (74g)

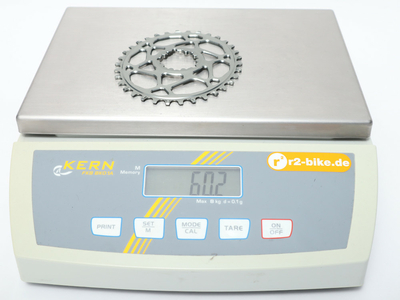

Weight weighed: 60g (34T)
Scope of delivery: 1x chainring
