Description

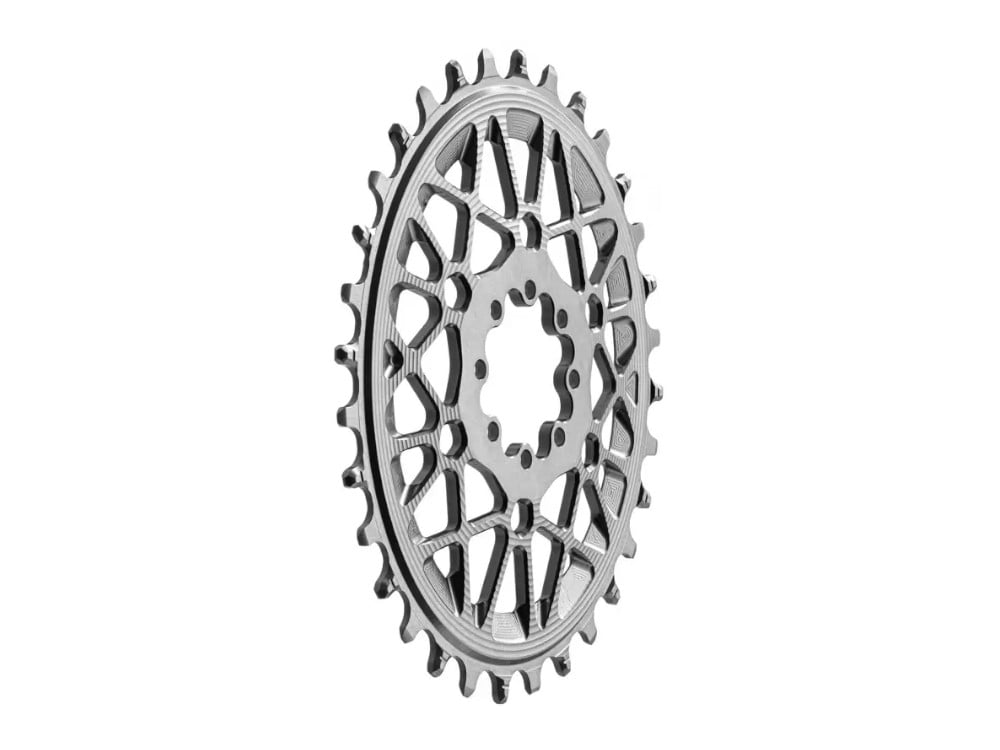

ABSOLUTE BLACK Chainring Direct Mount oval 3 mm Offset | 1-speed narrow wide for SRAM Eagle Transmission | titanium
CNC milling art at its finest from Absolute-Black! Derived from their original, oval premium chainring, the Poles bring chainring variants onto the market especially for SRAM transmission drives. The teeth, which have been specially optimized for the Flattop chains, effectively prevent dirt accumulation and chain dropping, even in muddy conditions. With their 8-hole direct mount standard, the chainrings have been developed for SRAM transmission cranks with a 174 millimeter Q factor. With an offset of 3 millimeters, a chain line of 55 millimeters is achieved on SRAM transmission cranks .
The ovalization of the chainring increases performance by varying the drive train and optimizing resistance. When kicking with the legs, the natural strengths and weaknesses are brought into line. In this way, better use of the stronger muscle groups is achieved and a balance is created in the weaker muscles on the way to work (less stroke).
Technical data:
intended use : MTB
Material: Aluminum 7075 Txxx
Technology: Narrow Wide
Direct Mount Standard: SRAM Direct Mount 8-Bolt
Number of teeth: 30, 32 or 34 teeth
Compatibility cranks : SRAM XX SL/XX/X0/GX Eagle Transmission (only with 174mm wide Q-factor)
Compatibility chain: SRAM Flattop 12-speed
chain line : 55 mm
Offset: 3mm
Adjustment options: none
Range (ovalization): 10.2 - 14.4% (optimized for each chainring size)
Timing (force application): 110.5 - 116.3° after TDC (OT) (optimized for each chainring size)
Color: titanium
Weight according to manufacturer: 30T (54g), 32T (64g), 34T (66g)
Weight weighed: kA
Scope of delivery: 1x ABSOLUTE BLACK chainring Direct Mount oval 3 mm offset | 1-speed narrow wide for SRAM Eagle Transmission | titanium
