Description
ABSOLUTE BLACK Chainring Direct Mount Narrow Wide for SRAM BB30 Short Spindle | SuperBOOST crank | black
Reliable, extremely lightweight, stiff and with a clean look on the bike, the Absolute Black chainrings are the best solution for SRAM BB30 | PF30 cranks with short axle . Spiderless chainrings provide optimum setup for single-speed or 1x 9/10/11 and 1x12 (SRAM Eagle) drives. With its offset of 0 millimeters, the chainring is also suitable for current SRAM SuperBOOST cranks . The chainrings save more than 150 g compared to conventional spider / chainring combination. The station wagon is screwed directly to the crank arm. A 7075 aluminum alloy ensures low wear. Special teeth on the chainring effectively prevent the chain from jumping off. The principle follows that of the SRAM XX1 chainrings. In conjunction with a SRAM Type2 or Shimano Shadow + rear derailleur, which have a greatly increased bias of the cage, the chain is reliably held in position even without chain guide.
Note: only compatible with SRAM / Truvativ BB30 cranks with short axle . These are recognizable by the installed 9 mm spacer on the drive side.
Technical specifications:
intended use : MTB
Material: aluminum 7075 Txxx
Technology: Narrow Wide
Attachment: Direct Mount

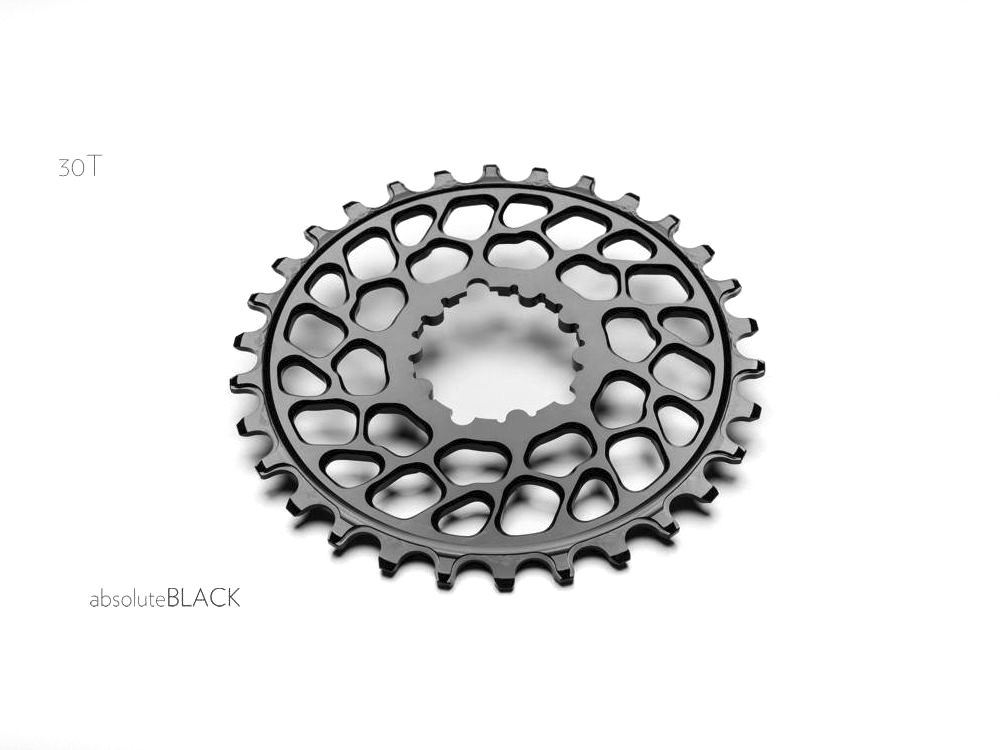

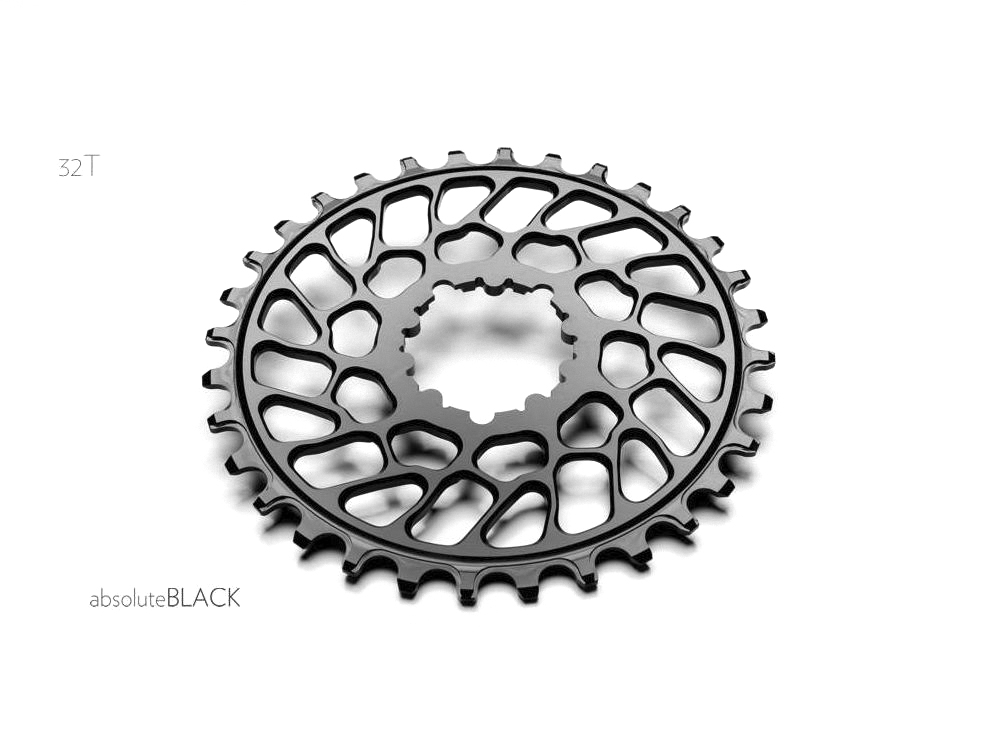

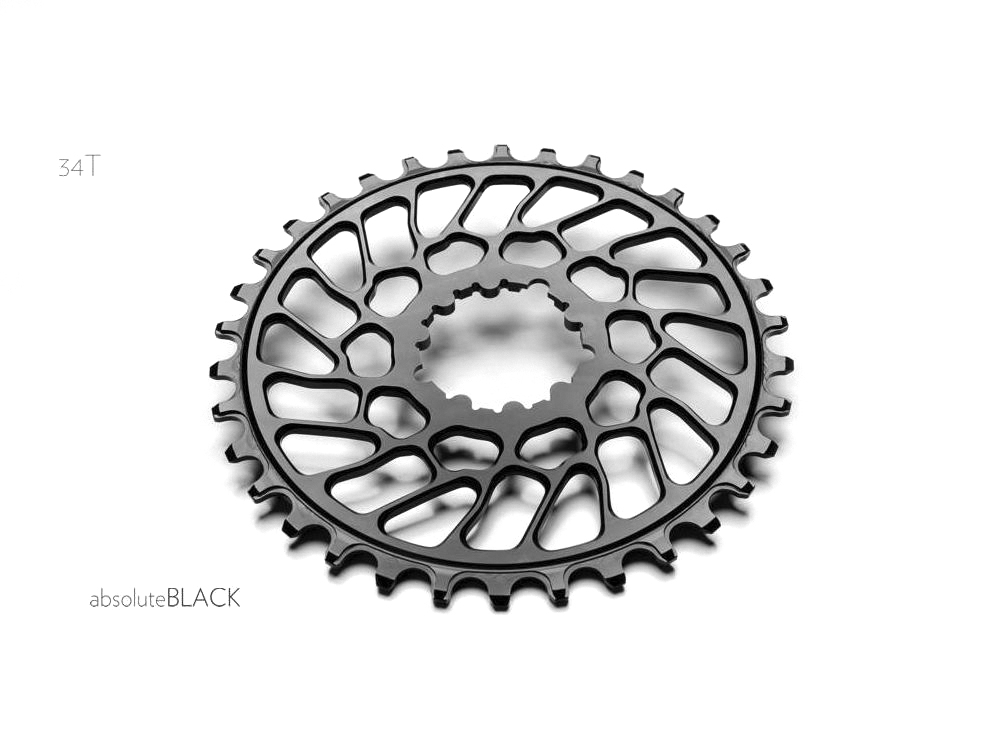

Number of teeth: 30, 32 or 34 teeth
Compatibility cranks : SRAM BB30 short shaft (SRAM XX1, X01, X0, X9, X7, S2210, S1400) | SRAM SuperBOOST | SRAM Fatbike GXP
Compatibility Chain: 10-speed , 11-speed or 12-speed (SRAM Eagle)
chain line : 49 (SRAM BB30 mm cranks |) 55 mm (SRAM SuperBOOST cranks )
Offset: 0 mm
Color: Black
Weight (manufacturer): 30T (53g), 32T (57g), 34T (66g)
Scope of delivery: 1x chainring
SRAM, GXP, Eagle and XX1 are trademarks of SRAM LLC and are used for informational purposes only.
Reliable, extremely lightweight, stiff and with a clean look on the bike, the Absolute Black chainrings are the best solution for SRAM BB30 | PF30 cranks with short axle . Spiderless chainrings provide optimum setup for single-speed or 1x 9/10/11 and 1x12 (SRAM Eagle) drives. With its offset of 0 millimeters, the chainring is also suitable for current SRAM SuperBOOST cranks . The chainrings save more than 150 g compared to conventional spider / chainring combination. The station wagon is screwed directly to the crank arm. A 7075 aluminum alloy ensures low wear. Special teeth on the chainring effectively prevent the chain from jumping off. The principle follows that of the SRAM XX1 chainrings. In conjunction with a SRAM Type2 or Shimano Shadow + rear derailleur, which have a greatly increased bias of the cage, the chain is reliably held in position even without chain guide.
Note: only compatible with SRAM / Truvativ BB30 cranks with short axle . These are recognizable by the installed 9 mm spacer on the drive side.
Technical specifications:
intended use : MTB
Material: aluminum 7075 Txxx
Technology: Narrow Wide
Attachment: Direct Mount
Number of teeth: 30, 32 or 34 teeth
Compatibility cranks : SRAM BB30 short shaft (SRAM XX1, X01, X0, X9, X7, S2210, S1400) | SRAM SuperBOOST | SRAM Fatbike GXP
Compatibility Chain: 10-speed , 11-speed or 12-speed (SRAM Eagle)
chain line : 49 (SRAM BB30 mm cranks |) 55 mm (SRAM SuperBOOST cranks )
Offset: 0 mm
Color: Black
Weight (manufacturer): 30T (53g), 32T (57g), 34T (66g)
Scope of delivery: 1x chainring
SRAM, GXP, Eagle and XX1 are trademarks of SRAM LLC and are used for informational purposes only.
MPN:
5110846000173
