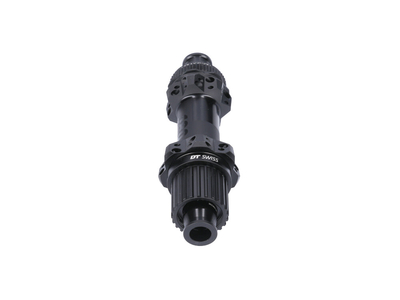

DT SWISS rear hub MTB 180 Straightpull Center Lock 12x148 mm thru axle | Freewheel Shimano Micro Spline | 28 holes
Lighter, stiffer, more precise and easier to maintain - these are the strengths of the DT Swiss 180 hubs, which have been further developed with the new RATCHET EXP technology. The super reliable freewheel system ensures direct power transmission without losses. Another smooth advantage is provided by the smooth running SINC Ceramic ball bearings; they ensure minimal rolling resistance. The rigidity on the hub body serves to distribute the load more evenly on the spokes. Drive and braking forces are transmitted even better from both spoke flanges to all spokes. One-sided load peaks are prevented, which protects the hub, spokes and rim.
DT Swiss hubs stand for the simplest construction and highest reliability. The latter is achieved with the 180 hubs with smooth-running, durable hybrid ceramic bearings. Thanks to the use of complex seals and bearing sizes adapted to the loads, the hubs can do without adjusting the bearing play. So the driver does not have to worry about the function of the hubs for years! Should a service be necessary after tens of thousands of kilometers, the hubs can be dismantled and serviced within a few minutes thanks to the DT Swiss plug-in system.
Technical specifications:
intended use : mountain bike
Hub material: aluminum, steel
Material freewheel body: aluminum
axle type : 12x148 mm thru-axle Boost
Number of holes: 28 holes
Brake disc mount: Center Lock
Freewheel compatibility: 12-speed Shimano Micro Spline
Freewheel type: 2 tooth lock washers, 36 grids
bearing : smooth running SINC Ceramic ball bearings
Spoke type: Straightpull spokes
Max. permissible spoke tension: 1200 N
maximum system weight: 130 kg
Color hub: black matt
Color decals: black
Weight according to the manufacturer: 193g
Weight weighed: 197g
Scope of delivery: 1x rear wheel hub DT SWISS MTB 180 Straightpull Center Lock 12x148 mm thru axle | Freewheel Shimano Micro Spline | 28 holes
