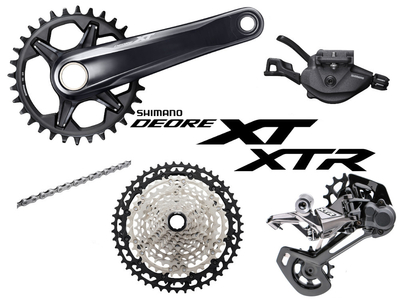

SHIMANO Deore XT/XTR MTB groupset M8100/M9100 | FC-M8100 crank | 10-51 teeth
The Shimano MTB groupsets have been a top seller on the bike market for years. They are considered perfect in performance, very reliable and durable. The 12-speed version also continues this tradition. The special highlight - this groupset includes the XTR rear derailleur from the Shimano top group!
SHIMANO Deore XT shifters SL-M8100 12-speed right | with clamp or I-Spec EV
As one of the contact points, the shifters are an important link between rider and bike. Compared to the M8000 shifter, the operating forces have been reduced by 35% thanks to a modified gear ratio in combination with a lower cage tension on the rear derailleur. The tried-and-tested Rapidfire Plus shifting logic with two-way release on the right-hand side has been carried over from the previous version. However, the M8100 shifter with its revised inner workings shifts faster thanks to Instant Release. The shift cable is released immediately when the lever is actuated, allowing the rider to react even more quickly to changing track conditions.
With the I-Spec EV version, the lever can be attached to Deore XT M8100 brake levers to save space. In addition, the new standard mounting offers a 14 millimeter wide lateral adjustment range and the shifter can also be rotated by 60 degrees.
SHIMANO XTR rear derailleur 1x12 RD-M9100 SGS Shadow+ | long cage
The XTR M9000 rear derailleur was already known for its clean shifting and smooth chain movement. With the M9100, these characteristics have been further improved and even faster gear changes have been achieved. In order to be equipped for the extreme bandwidths of the 10-51 tooth cassette, the rear derailleur was redesigned from the ground up. The derailleur pulleys are positioned in such a way that they keep the chain at the optimum distance from the cassette in all gears. The size of these has also been increased to 13 teeth. This not only provides the chain with better guidance, but also ensures smoother and more energy-efficient running. The Shadow+ system also prevents annoying chain slap on rough surfaces.
To get the best performance, Shimano recommends using this rear derailleur only with 1x12-speed drivetrains.
SHIMANO Deore XT cranks Direct Mount 1x12 FC-M8100 Standard | BOOST | without chainring
With the M8100 Deore XT crank, Shimano is taking a big step forward in several aspects. Probably the most striking innovation: The M8100 is designed for direct mount chainrings. Thanks to the special DCE+ Narrow Wide profile of the teeth and the Hyperglide+ chain design, the 52 millimeter offset of the chainrings is suitable for both BOOST and standard rear hubs. The matching direct mount chainrings are available with 28 to 36 teeth.
Shimano continues to rely on the proven Hollowtech 2 technology with a 24 millimeter crankshaft for the crank design. The design of the current generation of cold-forged aluminium cranks has been optimized to further reduce weight and increase rigidity at the same time.
The FC-M8100 crank has a chainline of 52 mm and is therefore suitable for standard and BOOST rear triangles.
SHIMANO Deore XT SM-CRM85 Direct Mount chainring
The matching 1-speed direct mount chainrings for the FC-M8120 Deore XT cranks. With their special Dynamic-Chain-Mount+ design, they guide the CN-M8100 chain safely and with low vibration even on rough trails. In combination with the Hyperglide+ chain, the chainrings work with standard, BOOST and SuperBoost Plus rear hubs.
The chainrings are attached to the crank with a lockring, which has the mount for the Shimano bottom bracket tool. For easier handling of the thin lockring, Shimano also offers a special tool for installation. The chainrings are available with 28-36 teeth.
SHIMANO Deore XT cassette 12-speed CS-M8100 | 10-51 teeth
Smooth and precise shifting has always been a hallmark of Shimano cassettes. In the Hyperglide cassettes of the last generations, the sprockets were positioned in such a way that the chain runs extremely smoothly and with little vibration, especially when shifting to a larger sprocket. With the XT M8100 cassette, Shimano introduces Hyperglide+. Thanks to this technology, shifting now runs just as smoothly even when shifting into a heavier gear and is 1/3 faster than with the CS-M8000 cassette.
SHIMANO Deore XT CN-M8100 12-speed chain | 126 links with chain lock
The CN-M8100 chain is specially designed for the M8100 chainrings and cassettes. Thanks to cut-outs on the inside of the plates, the chain harmonizes perfectly with the Dynamic Chain Engagement+ (DCE+) Narrow-Wide tooth profiles of the new Deore XT chainrings. The design results in a tighter fit of the chain on the teeth. Vibrations are avoided and the smoother chain run is not only noticeable when pedaling, but also manifests itself acoustically through a quieter drivetrain. Thanks to a new chromed surface in combination with the proven SIL-TEC coating, the service life of the chain has been kept at the same level as the M8000 chain, despite the smaller outer width.
SHIMANO XT bottom bracket SM-BB800 (for an extra charge)
These bottom brackets complete the groupset. They are of typical high manufacturing quality and equipped with maintenance-free, smooth-running bearings. Two different versions are available: BSA or PressFit with 41 mm diameter in the bottom bracket shell.
Technical data:
Cassette material: steel, aluminum
Trigger and rear derailleur material: Aluminum
Crank material: Aluminum
Gear steps: 12
Crank length: 165, 170 or 175 mm
Chainring: 30, 32 or 34 teeth
Chainline: 52 mm (for standard and 148 mm Boost rear triangles)
Q-factor: 172 mm
Shift lever mounting: I-Spec EV or clamp
Abstufung: 10-12-14-16-18-21-24-28-33-39-45-51
Gear range: 510%
Freehub compatibility: Shimano Micro Spline
Rear derailleur compatibility: Shimano 10-51 tooth cassettes
Color: anthracite, black
Weight according to manufacturer: n.a.
Weight self-weighed: from approx. 1780g (including 32 tooth chainring; without bottom bracket)
Scope of delivery:
1x Shimano Deore XT crank FC-M8100
1x Shimano Deore XTR rear derailleur RD-M9100 SGS
1x Shimano Deore XT shift lever SL-M8100 right with clamp or I-Spec EV, incl. shift cable
1x Shimano Deore XT cassette CS-M8100 10-51 teeth
1x Shimano Deore XT chain CN-M8100 126 links with chain lock
1x Shimano Deore XT chainring SM-CRM85 (optional)
1x Shimano Deore XT bottom bracket (optional)
Note: Weights may vary depending on the selected configuration. Any tools and mounting accessories you may need can be found in our store.
