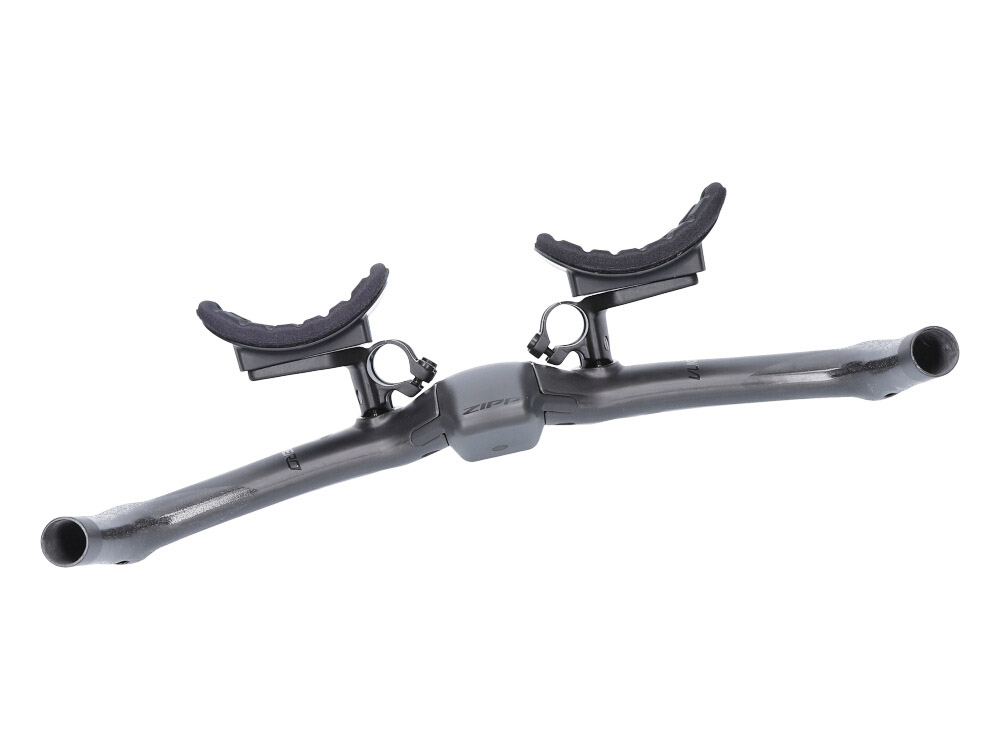

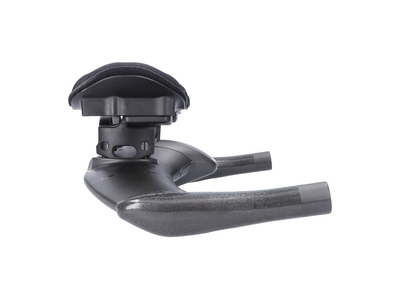

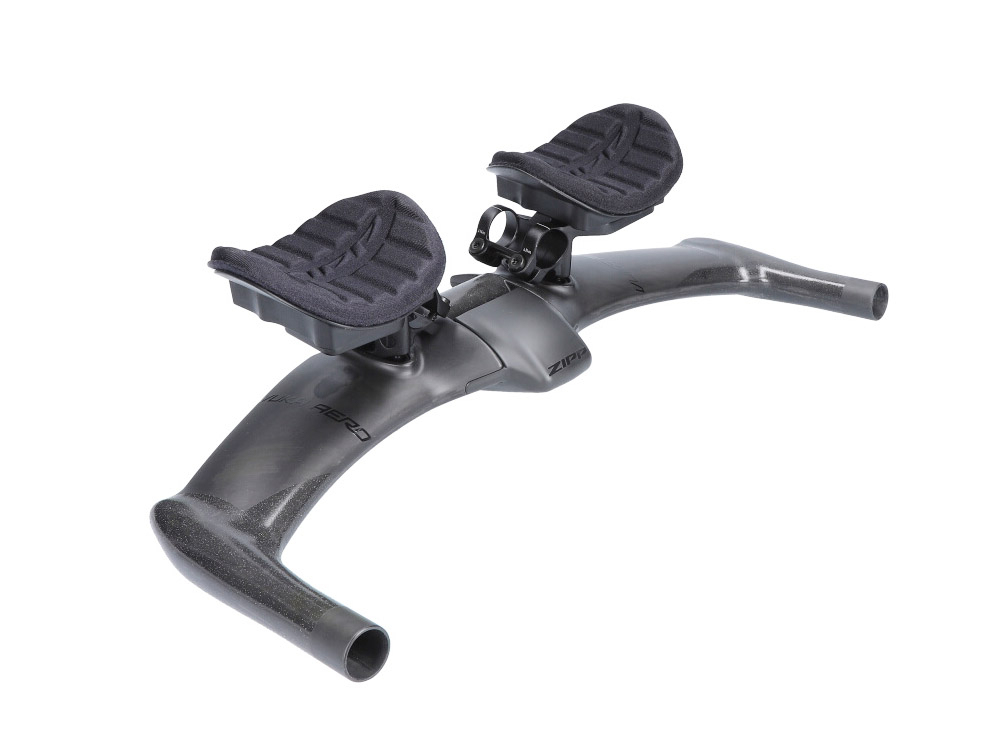

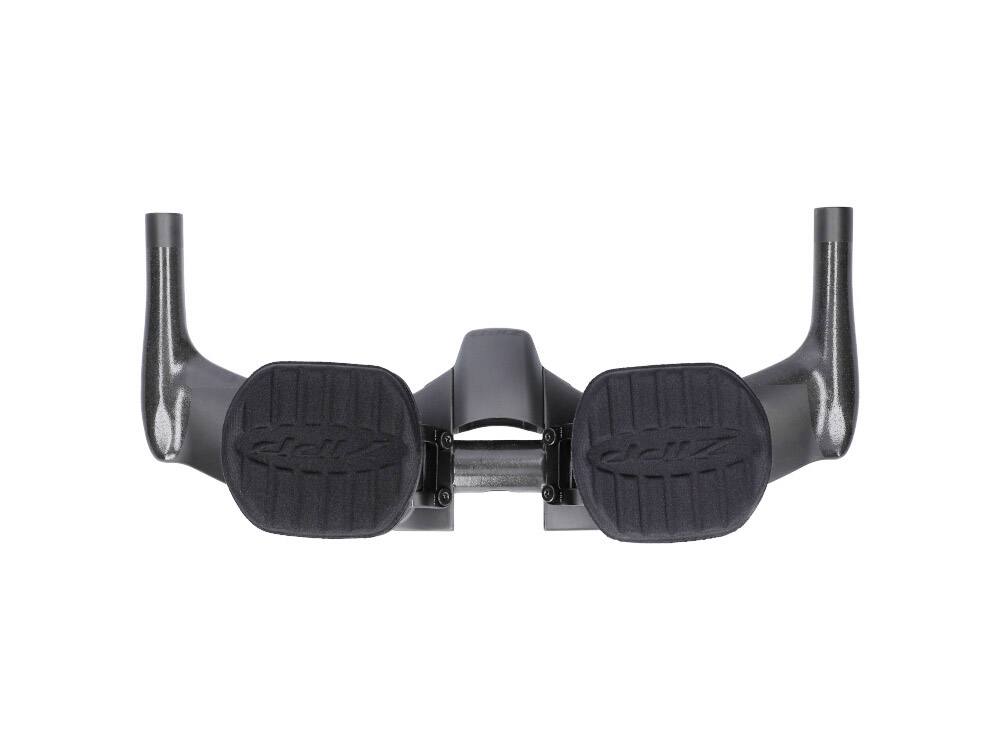

ZIPP time trial handlebar | Triathlon handlebar Vuka Aero 31.8 mm
The Vuka Aero time trial handlebar sets standards not only with its aerodynamic shape. Its adjustability and broad compatibility with most time trial and triathlon bikes also make it unique. The Vuka Aero can be combined with any classic stem with a 31.8 millimeter clamp diameter. The SRAM AXS Blip Box can be stowed behind a fairing in front of the stem. This not only ensures a tidy cockpit, the fairing also significantly improves the aerodynamics of the cockpit. The brake lines are of course routed through the handlebars and can either be routed through openings on the handlebars to the frame or be routed fully integrated through the stem from an opening on the stem clamp. When pedaling in the brake handle position, the high rigidity of the full carbon handlebars helps you put the power on the pedal. At high speed, the elongated wing profile cuts through the air with minimal resistance.

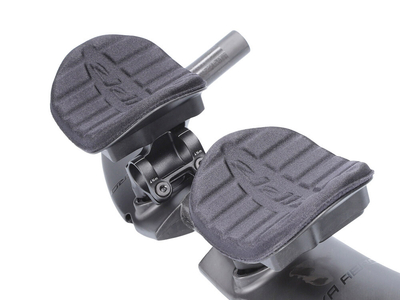

So that you can find your optimal sitting position in the aero attachment, the arm pads can be moved forwards/backwards and inwards/outwards over a wide range. The angle of attack of the aerobar can also be adjusted from 0 to 10 degrees and the arm pads can also be tilted from 0 to 15 degrees. The height of the arm pads can be adjusted in 5 millimeter increments from 60 millimeters to 115 millimeters using the included risers and screws. With an additional riser kit, the arm pads can be adjusted to a maximum height of 150 millimeters.
NOTE: If the riser height under the arm pads exceeds 50 millimeters, an optionally available bridge must be installed.
Technical data:
intended use : triathlon, time trial
Material: carbon
Handlebar clamp Ø: 31.8 mm
Handlebar width: 400 mm (center - center)
Forward position / reach: 160 mm
Rise (height arm pads): 60 mm (without riser), 65 - 115 mm (adjustable with included riser kit), maximum height 150 mm (with optional riser kit)
Angle arm pads: 0 - 15°
Aerobar clamping angle: 0 - 10°
max. system weight kA
Tightening torque max: Extensions - 4 Nm, armrests - 6 Nm
Finish: UD carbon matt
Color: Black
Weight according to the manufacturer: 700g

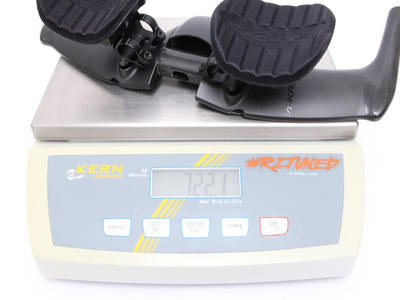

Weight weighed: 722g (with lowest armpad height)

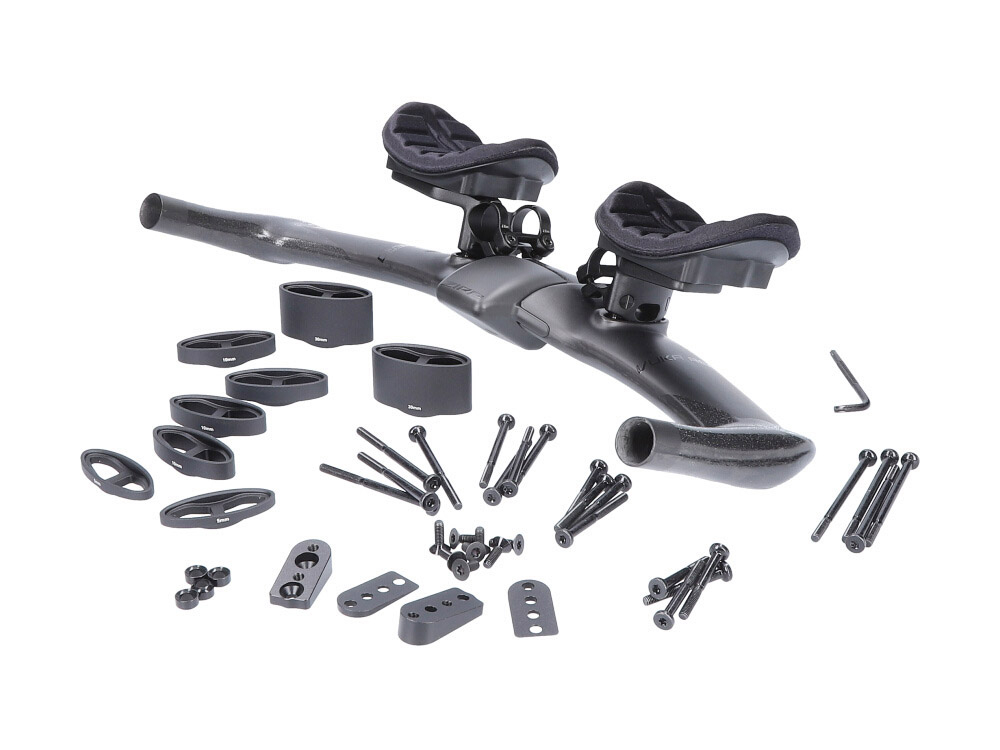

Scope of delivery:
1x basic handlebar Vuka Aero 31.8 mm
2x Aerobar clamps
2x arm pads
2x 30mm risers
4x 10mm risers
2x 5mm risers
5x screw kits for risers
4x conical washers
3x pairs of tilt spacers for arm pads
1x Torx key
1xMonday paste
Manuals / Downloads
Manual EN | D | F | I
