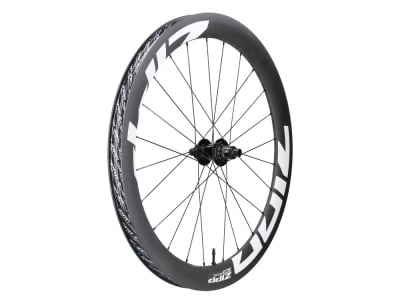

ZIPP rear wheel 28" 303 XPLR S Carbon Clincher | Tubeless | Center Lock | 12x142 mm thru axle | SRAM XDR freehub body | white
With the 303 XPLR wheels, the Americans from Zipp are once again breaking new ground. In recent years, gravel races have become significantly faster thanks to better material and increasing professionalization. With average speeds of 35 km/h and more not uncommon, aerodynamics are playing an increasingly important role. Zipp has taken this development into account and, with the 303 XPLR, has built its fastest wheels specifically for gravel tires.
Typical tire widths for gravel races are usually between 38 and 50 millimeters, which leads to an aerodynamically unfavorable "light bulb shape" in the profile in relation to the significantly smaller outer width of conventional gravel wheels. The Zipp 303 XPLR wheels therefore have an outer width of 40 millimetres and a profile height of 54 millimetres. With this rim profile, the most aerodynamically efficient wing shape with an almost seamless transition between tire and rim can be achieved with the right rim-tire combination, just like with modern road bike wheelsets.
As a side effect, the inner width has also been increased to a gigantic 32 millimetres, which allows you to ride a suitable tubeless tire with significantly less air pressure without the risk of the tire buckling uncontrollably in fast bends. In practice, this means more grip and significantly reduced vibration losses, which gives you more speed on rough gravel tracks with the same performance and at the same time makes you less tired on long distances. The optimum function is achieved with the Goodyear XPLR Slick and XPLR Inter tires specially developed for the Zipp XPLR wheels.
With the rim edges of the hookless rims widened by 77% compared to the previous models, the 303 XPLR have become significantly more robust in the event of punctures and the risk of tire damage is reduced due to the larger contact surface on impact.
Despite their oversized dimensions, Zipp was able to keep the weight of the 303 XPLR S wheelset surprisingly low at 1623 grams (weighed including tubeless valves), which makes the wheels an extremely efficient choice even for mountainous courses.
Total System Efficiency (TSE)
The 303 XPLR wheels were developed under the TSE approach. The development goal was to find the best possible wheel design to overcome the speed barriers that exist under realistic riding conditions. In addition to wind resistance, gravity and rolling resistance, these also include vibration losses in poor road conditions.
Zipp 176 DB hub
With its pawl freewheel with 3 pawls and 36 engagement points, the 176 DB rear hub offers extremely direct engagement.
Zipp Lifetime Warranty
Zipp grants you a lifetime warranty on your Zipp wheel when used properly. The warranty also covers racing use and damage caused by riding errors, as long as the wheel has been used for its intended purpose. The warranty is only valid for the original purchaser and proof of purchase is mandatory!
NOTE: The 303 XPLR wheels are only compatible with tires approved by Zipp. You can find a tire compatibility overview here.
Technical data:
Area of application: Gravel
Wheel size: 28" (ETRTO: 32-622)
Rim type: Carbon clincher (clincher and folding tires)
Brake type: for disc brakes only
Brake rotor mount: Center Lock
Hub material: Aluminum, steel
Rim material: Carbon
Spoke material: Steel
Inner width: 32 mm
Outer width: 40 mm
Rim height: 54 mm
Offset: none
Number of holes: 24 holes
Spokes: 24x Sapim CX-Sprint J-Bend (black)
Spoking pattern: 2x crossed
Axle standard: 12x142 mm thru axle
Bearings: 4x stainless steel industrial ball bearings
Freehub compatibility: 12-/13-speed SRAM XDR
Freehub type: 3 pawls, 36 engagement points per wheel rotation
recommended tire width: 40-64 mm
maximum air pressure (tire width): 3.45 bar (40 - 44 mm); 3 bar (45 - 54 mm); 2.5 bar (55 - 64 mm)
tubeless capable: yes
Maximum system weight: 135 kg (rider, bike, clothing and possibly luggage)
Valve hole: Presta valve (SV)
Rim color: UD carbon matt, white decals
Color hubs: black, matt
Weight according to manufacturer: 1610g (wheelset)
Weight self-weighed: 801g (including tubeless tape and tubeless valve)
Scope of delivery:
1x rear wheel Zipp 303 XPLR S Carbon Clincher | Tubeless | Center Lock | 12x142 mm thru axle | SRAM XDR | white
1x tubeless rim tape
1x tubeless valve
1x center lock ring
1x 1.8 mm adapter for SRAM XD cassettes
