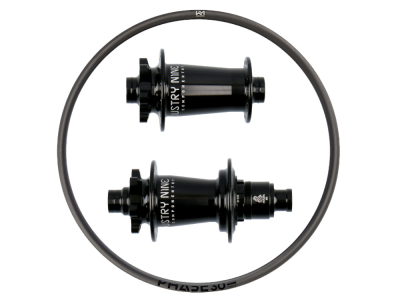

Wheelset 29" XC | Ursus Straightpull 6-Hole Hubs | Newmen Carbon Rims

Item number:
Product weight: 1309 g
Brands: r2-bike

from 1.127,50 €
MSRP: 1.366,68 €
You save 17,5%, that is 239,18 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

handmade - in about 4 - 6 weeks
Configure now

Ursus Front Hub Straightpull 6-Hole
Ursus Front Hub Straightpull 6-Hole
  • Brake disc mount: 6-hole
    Spoke type: Straightpull (straight)
    Bearing: 2x industrial deep groove ball bearings
    Color: Black
    Weight: 139g

    With the 110 millimeter wide BOOST hub, stiffer wheels with a more even spoke angle on both sides can be built thanks to a wider flange spacing.

Ursus Rear Hub Straightpull 6-Hole
Ursus Rear Hub Straightpull 6-Hole
  • Brake disc mount: 6-hole
    Spoke type: Straightpull (straight)
    Bearing: 4x industrial ball bearings
    Freewheel type: 3 pawls / 30 detents per revolution
    Freewheel compatibility: 12-speed Shimano Micro Spline
    Color: Black
    Weight: 266g

    With the 148 millimeter wide BOOST hub, stiffer wheels with a more even spoke angle on both sides can be built thanks to a wider flange spacing.

NEWMEN Rims Cross Country
NEWMEN Rims Cross Country
  • Application: Cross Country XC, light Trail TR
    ETRTO: 622x30
    Inner width: 30 mm
    Outside width: 34 mm
    Rim height: 20 mm
    Offset: 0.0 mm (symmetrical)
    recommended tire width: 58 - 66 mm
    maximum tire pressure: 3,5 Bar
    system weight: 125 kg
    Color / finish: black / anodized
    Weight: 357g
  • Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!

Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details


Wheelset 29" XC | Ursus Straightpull 6-hole hubs | Newmen carbon rims

intended use : Cross Country XC to light Trail TR

With this wheelset, racers can also really let it rip. The robust Ursus hubs and the excellently crafted Newmen rims forgive even a driving mistake. The balanced selection of components guarantees you high reliability and a long service life.

Ursus is an Italian bicycle company based in Rosà, a small town in northern Italy. With almost 50 years of experience in development and manufacturing, they have built a comprehensive portfolio of bicycle components. All components are developed in-house, manufactured and tested on modern CNC machines, ensuring consistently high quality.
The Ursus XD51 is the right choice for anyone looking for a comparatively light and stiff hub. This is achieved by using aluminum 7075 and a 15 mm axle . By choosing large bearings with a good LLU/LLB seal and additional splash protection in front of the bearings, a long service life with minimal maintenance is achieved.
The special shape of the 6-hole mount ensures optimal distribution of the braking forces and thus leads to a more sensitive braking feeling.

Like all Newmen carbon rims, the Advanced rims are made of high-end UD fibers and impress with their first-class mechanical properties and extremely low weight. They are the ideal basis for a tough cross country wheelset.
The hookless design makes them ideal for tubeless use. The significantly reinforced rim flange can withstand potential punctures better and allows driving with little air pressure. In order to avoid weak points and increase the service life, the spoke holes were drilled using a special process. The large inner width gives even wide tires reliable support. Due to the slightly outwardly positioned sides, the shape of the tire is more rounded, which results in significantly better cornering grip and increased safety.

Wheel construction at R2-Bike

Our wheels are assembled entirely by hand by our wheel builders. During the entire construction, it is important to ensure that not only the concentricity is correct, but also that the spoke tension is as even as possible. This special care allows us to offer a lifetime guarantee against broken spokes, as long as they are not caused by violence.

The following services are also already included:

You get a universal wheel bag for all common sizes.
You will receive a replacement spoke with a nipple in all the required spoke lengths so that you can repair the wheel at short notice after an accident.
You will receive a free initial inspection of the wheel, where the resulting work is completely free of charge. Only shipping costs are charged.
You get a crash replacement promise: If your wheel is damaged due to force majeure, we will rebuild it once. We offer a 100% discount on all labor costs and only charge for the material.

Technical data:

intended use : Cross Country XC to light Trail TR
Wheel size: 29" (ETRTO: 622 x 25 or 30 mm)
Rim type: Clincher (clincher and folding tires)
Brake type: disc brake
Brake disc mount: 6-hole


1309g (lightest variant: Boost + Boost SRAM XD, SL XA 25 rims, Sapim CX-Ray)
1508g (heaviest variant: Boost + Boost Shimano MS, SL XA 30 rims, Sapim Race)

A notice:
Due to manufacturing fluctuations in all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals/rim stickers.

The delivery time stated refers to the usual time it takes to build the wheelset and does not reflect the availability of the individual parts.

Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x balance bike bag
4x replacement spokes including nipples
1x construction certificate
2x hologram stickers
