Description

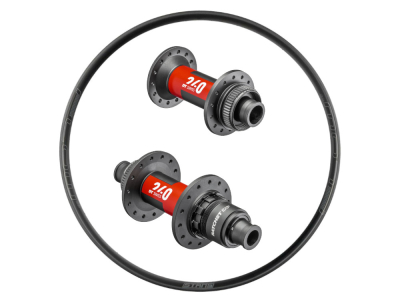

Wheelset 29 "XC TR AM | DT Swiss 240 EXP MTB Center Lock hubs | NoTubes aluminum rims
intended use : Cross Country XC, Trail TR, All Mountain AM
With this wheelset you can really let it rip on your favorite trail. The indestructible DT Swiss hubs and the sturdy NoTubes rims also forgive a driving error. The balanced selection of components guarantees you a high level of reliability and a long service life.
Hubs
Lighter, stiffer, more precise and easier to maintain - these are the strengths of the newly launched DT Swiss 240 hubs. These properties were achieved through the Ratchet EXP technology. With this, not only do the hubs get by with fewer components and the associated lower weight and less wear, it also allows the bearing to be positioned significantly further out on the drive side. The greater distance between the bearings results in a higher stiffness of the hub, a lower bearing load and thus a higher durability. The stiffness of the hub body serves to distribute the load more evenly on the spokes. Driving and braking forces are transmitted even better from both spoke flanges to all of the spokes. One-sided load peaks is prevented, which protects the hub, spokes and rim. The super reliable toothed pulley freewheel system with its large contact area and 36 locking points ensures extremely direct and reliable power transmission.
rims
The rims from tubeless pioneer NoTubes guarantee you driving pleasure in every situation. Made from a durable 6069 aluminum alloy, they are a good base for lightweight wheelsets. Thanks to the Bead Socket Technology, with its low rim flange, the tire can fully develop its shape and thus has better rolling properties and excellent damping behavior. In addition, an airtight connection is achieved, which means that tubeless operation is possible without any problems and the susceptibility to breakdowns is significantly reduced.
Wheel construction at R2-Bike
Our wheels are completely assembled by hand by our wheel builders. During the entire construction process, it is important that not only the concentricity is correct, but also that the spoke tension is as even as possible. The special care allows us to give a lifelong guarantee against broken spokes, as long as this was not caused by force!
You will also receive the following services for our balance bikes:
A universal impeller bag for all common sizes.
A spare spoke + nipple in all spoke lengths required to be able to repair the wheel at short notice even after an accident.
A free initial inspection of the impeller, during which the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant a 100% discount on all labor costs and only charge the material!
Technical specifications:
intended use : Cross Country XC, Trail TR, All Mountain AM
Impeller size: 29 "(ETRTO: 622 x see detailed description)
Rim type: Clincher (wire and folding tires)
Brake type: disc brake
Brake disc mount: Center Lock
Weights:
1429g (lightest variant: Boost + Boost, Crest, 28 spokes, Sapim CX-Ray)
1817g (heaviest variant: Boost + Boost, Flow, 32 spokes, Sapim Race)
Note:
Due to manufacturing fluctuations for all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals / rim stickers.
The specified delivery time refers to the usual duration for the assembly of the wheelset and does not reflect the availability of the individual parts.
If you want a special spoke on the rear wheel, e.g. for the Cannondale Ai rear triangle or for the EVO6, please contact our service team.
Scope of delivery:
1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x construction certificate
2x hologram sticker
