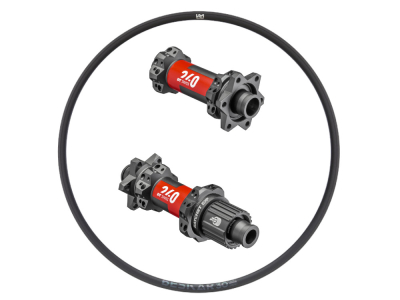

Wheelset 29" XC | DT Swiss 240 EXP MTB Straightpull 6-Hole Hubs | Newmen Aluminum Rims

Item number:
46089
Product weight: 1419 g
Brands: r2-bike

from 747,50 €
MSRP: 893,48 €
You save 16,34%, that is 145,98 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

Availability:
handmade - in about 2 - 3 months
Configure now

We aren't allowed to deliver this item to the United States.

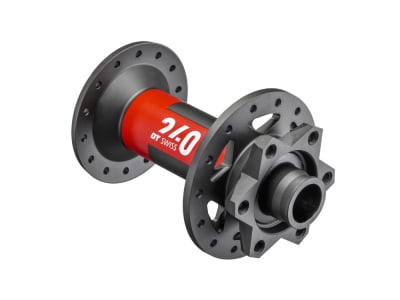

DT Swiss Front Hub Straightpull 6-Hole
DT Swiss Front Hub Straightpull 6-Hole
  • Brake disc mount: 6-Hole
    Spoke type: Straightpull (straight)
    Storage: 2x industrial ball bearings
    Color: black with white-red decals
    Weight: 118g

    With the 110 millimeter wide BOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing.
DT Swiss Rear Hub Straightpull 6-Hole
DT Swiss Rear Hub Straightpull 6-Hole
  • Brake disc mount: 6-hole
    Spoke type: Straightpull (straight)
    Storage: 4x industrial ball bearings
    Freewheel type: 2 tooth lock washers, 36 grids
    Freewheel compatibility: 12-speed Shimano Micro Spline
    Color: black with white-red decals
    Weight: 219g

    With the 157 millimeter wide SuperBOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing. In addition, the wider rear triangle allows the use of more voluminous tires.

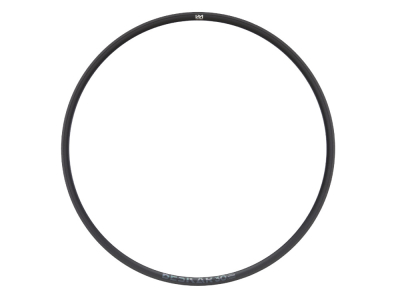

NEWMEN Rims Cross Country
NEWMEN Rims Cross Country
  • Intended use: Cross Country XC
    ETRTO: 622x25
    Inside width: 25 mm
    Outside width: 28 mm
    Rim height: 17,5 mm
    Offset: 0.0 mm (symmetrical)
    recommended tire width: 50 - 61 mm
    maximum tire pressure: 3.0 bar
    maximum system weight: 125 kg
    Color / finish: black / anodized
    Weight: 400g

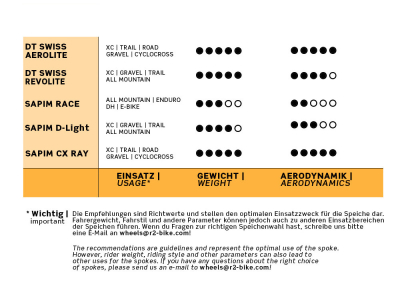

Spokes
Spokes
  • Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!


Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details

Description

Wheelset 29 "XC | DT Swiss 240 EXP MTB Straightpull 6-hole hubs | Newmen aluminum rims

intended use : Cross Country XC to Trail TR

With this wheelset, racers can really get it down. The indestructible DT Swiss hubs and the excellently processed Newmen rims also forgive a driving mistake. The balanced selection of components guarantees high reliability and a long service life.

Hubs
Lighter, stiffer, more precise and easier to maintain - these are the strengths of the newly launched DT Swiss 240 hubs. These properties were achieved through the Ratchet EXP technology. With this, the hubs not only manage with fewer components and the associated lower weight and less wear, it also allows the bearing to be positioned significantly further out on the drive side. The larger distance between the bearings results in a higher stiffness of the hub, a lower bearing load and thus a higher durability. The rigidity on the hub body serves to distribute the load more evenly on the spokes. Driving and braking forces are transmitted even better from both spoke flanges to all spokes. One-sided load peaks are prevented, which protects the hub, spokes and rim. The super reliable tooth lock washer freewheel system with its large contact surface and 36 locking points ensures extremely direct and reliable power transmission.

rims
This high-end aluminum rim was developed for riders who want to jump into the cross country race with light, yet stable wheels and want to ride for the victory. Like all Newmen Evolution SL components, the rim consists of a high-strength aluminum alloy and impresses with first-class mechanical properties and low weight.
The flared and reinforced rim flanges are more resistant to puncture damage and give the tire a rounder shape and thus better cornering.
The rim profile with the straight nipple contact surface is specially designed for the use of specially developed washers (MG washer) and ensures very high "spoke pull out" values with very low wall thickness in this area.


Wheel construction at R2-Bike

Our wheels are completely assembled by hand by our wheel builders. During the entire construction, it is important that not only the concentricity is correct, but also that the spoke tension is as even as possible. The special care allows us to give a lifelong guarantee against broken spokes, as long as this has not been caused by violence!

You will also receive the following services for our wheels:

A universal impeller bag for all common sizes.
A spare spoke + nipple in all required spoke lengths in order to be able to repair the wheel at short notice even after accidents.
A free initial inspection of the wheel, in which the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant 100% discount on all labor costs and only charge the material!


Technical specifications:

intended use : Cross Country XC to Trail TR
Wheel size: 29 "(ETRTO: 622 x 25 or 30 mm)
Rim type: clincher (clincher and folding tire)
Brake type: disc brake
Brake disc mount: 6-hole

Weights:

1419g (lightest variant: 15x100 mm + 12x142 mm, SL XA 25 rims, Sapim CX-Ray)
1785g (heaviest variant: Boost + SuperBoost, SL A. 30 rims, Sapim Race)

Note:
Variations in weight are possible due to manufacturing fluctuations in all components. The information is usually determined without rim tape, valves and decals / rim stickers.

The specified delivery time refers to the usual duration for the assembly of the wheelset and does not reflect the availability of the individual parts.


Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x construction certificate
2x hologram stickers
