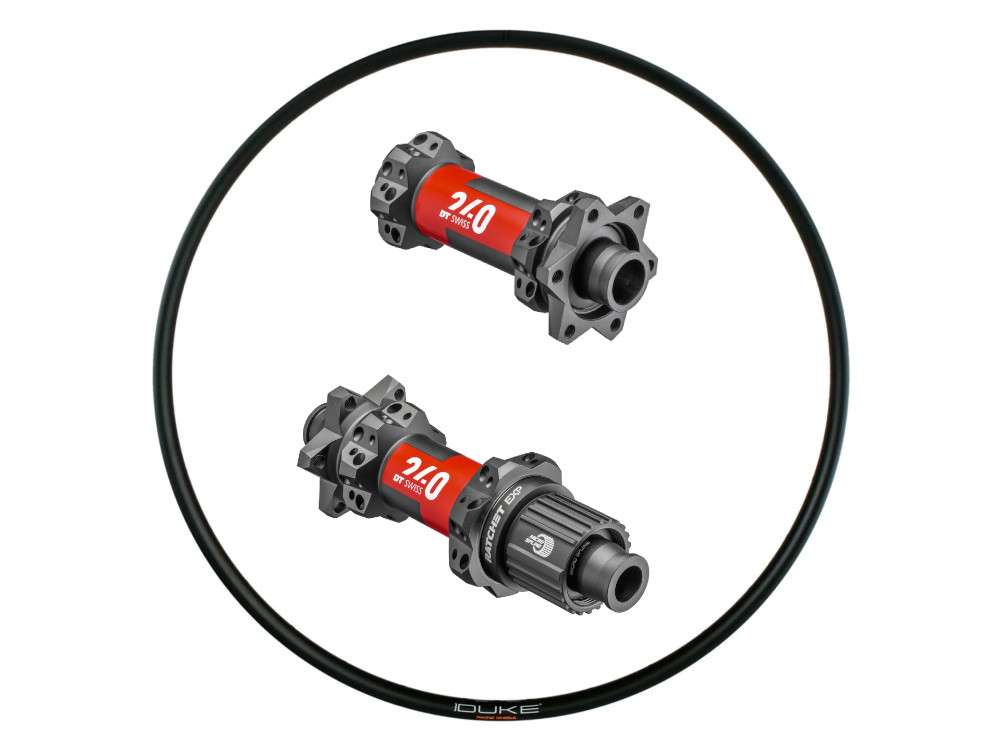

Wheelset 29" XC | DT Swiss 240 EXP MTB Straightpull 6-Hole Hubs | Duke Aluminum Rims

Item number:
46123
Product weight: 1351 g
Brands: r2-bike

from 777,50 €
MSRP: 953,48 €
You save 18,46%, that is 175,98 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

Availability:
handmade - in about 2 - 3 months
Configure now

We can't deliver this item to your chosen country.


DT Swiss Front Hub Straightpull 6-Hole
DT Swiss Front Hub Straightpull 6-Hole
  • Brake disc mount: 6-Hole
    Spoke type: Straightpull (straight)
    Storage: 2x industrial ball bearings
    Color: black with white-red decals
    Weight: 118g

    With the 110 millimeter wide BOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing.
DT Swiss Rear Hub Straightpull 6-Hole
DT Swiss Rear Hub Straightpull 6-Hole
  • Brake disc mount: 6-hole
    Spoke type: Straightpull (straight)
    Storage: 4x industrial ball bearings
    Freewheel type: 2 tooth lock washers, 36 grids
    Freewheel compatibility: 12-speed Shimano Micro Spline
    Color: black with white-red decals
    Weight: 219g

    With the 157 millimeter wide SuperBOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing. In addition, the wider rear triangle allows the use of more voluminous tires.

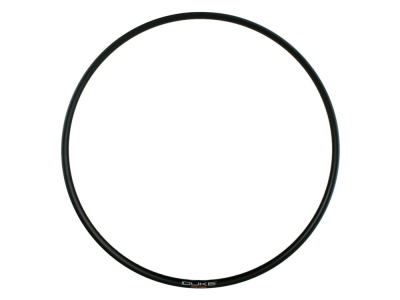

Duke Rims Aluminum Cross Country
Duke Rims Aluminum Cross Country
  • Application: Cross Country XC
    ETRTO: front 622x29.5 - rear 622x27.5
    Inner width: front 29.5 mm - rear 27.5 mm
    External width: n / a
    Rim height: front 18 mm - rear 18 mm
    Offset: front 2.3 mm - rear 2.3 mm
    Recommended tire width: front up to 2.6 "- rear 2.5"
    maximum tire pressure: 2.5 bar
    maximum system weight: 110 kg (driver, bike, clothing and possibly luggage)
    Color / finish: black / matt
    Weight: VR 434g - HR 420g

Spokes
Spokes
  • Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!


Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details

Description

Wheelset 29 "XC | DT Swiss 240 EXP MTB Straightpull 6-hole hubs | Duke aluminum rims

intended use : Cross Country XC

XC racers always want to win and are therefore looking for lightweight yet stable wheels. The combination of Duke aluminum rims and DT-Swiss hubs should therefore always be on the shortlist. The balanced selection of components guarantees you a high level of reliability and a long service life.

Hubs
Lighter, stiffer, more precise and easier to maintain - these are the strengths of the newly launched DT Swiss 240 hubs. These properties were achieved through the Ratchet EXP technology. With this, not only do the hubs get by with fewer components and the associated lower weight and less wear, it also allows the bearing to be positioned significantly further out on the drive side. The greater distance between the bearings results in a higher stiffness of the hub, a lower bearing load and thus a higher durability. The stiffness of the hub body serves to distribute the load more evenly on the spokes. Driving and braking forces are transmitted even better from both spoke flanges to all of the spokes. One-sided load peaks is prevented, which protects the hub, spokes and rim. The super reliable toothed pulley freewheel system with its large contact area and 36 locking points ensures extremely direct and reliable power transmission.

rims
The rims from Duke from France stand for low weight and excellent workmanship. The hookless construction is ideal for the use of tubeless systems. The reinforced bead makes it easier to cope with any punctures without causing damage. The rather flat and wide rims reliably support the tire in every situation.
The asymmetrical shape enables a more even spoke tension, which further increases the rigidity of the entire wheel.


Wheel construction at R2-Bike

Our wheels are completely assembled by hand by our wheel builders. During the entire construction process, it is important that not only the concentricity is correct, but also that the spoke tension is as even as possible. The special care allows us to give a lifelong guarantee against broken spokes, as long as this was not caused by force!

You will also receive the following services for our balance bikes:

A universal impeller bag for all common sizes.
A spare spoke + nipple in all spoke lengths required to be able to repair the wheel at short notice even after an accident.
A free initial inspection of the impeller, during which the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant a 100% discount on all labor costs and only charge the material!


Technical specifications:

intended use : Cross Country XC
Impeller size: 29 "(ETRTO: 622 x see detailed description)
Rim type: Clincher (wire and folding tires)
Brake type: disc brake
Brake disc mount: 6-hole

Weights:

1351g (lightest variant: 15x100 mm + 12x142 mm, Duke Lucky Star, Sapim CX-Ray)
1565g (heaviest variant: Boost + SuperBoost, Duke Lucky Star HD 6TERS, Sapim Race)

A notice:
Due to manufacturing fluctuations for all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals / rim stickers.

The specified delivery time refers to the usual duration for the assembly of the wheelset and does not reflect the availability of the individual parts.

If you want a special spoke on the rear wheel, e.g. for the Cannondale Ai rear triangle or for the EVO6, please contact our service team.


Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)

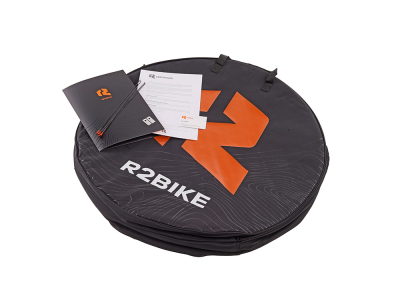

1x wheel bag
4x spare spokes including nipples
1x construction certificate
2x hologram sticker
