Wheelset 29" XC | Carbon-Ti MTB Straightpull 6-Hole Hubs | Newmen Carbon Rims

Item number:
46173
Product weight: 1185 g
Brands: r2-bike

from 1.377,50 €
MSRP: 1.686,68 €
You save 18,33%, that is 309,18 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

Availability:
handmade - in about 2 - 3 months
Configure now


Carbon-Ti Front Hub Straightpull 6-Hole
Carbon-Ti Front Hub Straightpull 6-Hole
  • Brake disc holder: 6-Hole
    Spoke type: Straightpull (straight)
    Storage: 2x industrial ball bearings
    Color: red, gold, blue, silver, black, green, poison green, silver polished or black matt
    Weight: 89g

Carbon-Ti Rear Hub Straightpull 6-Hole
Carbon-Ti Rear Hub Straightpull 6-Hole
  • Brake disc mount: 6-hole
    Spoke type: Straightpull (straight)
    Storage: 4x industrial deep groove ball bearings
    Freewheel type: 4 pawls, 56 grids
    Freewheel compatibility: 12-speed Shimano Micro Spline
    Color: red, gold, blue, silver, black, green, poison green, silver polished or black matt
    Weight: 186g

    With the 148 millimeter wide BOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing.
Color Carbon-Ti Hubs
Color Carbon-Ti Hubs
NEWMEN Rims Cross Country
NEWMEN Rims Cross Country
  • Application: Cross Country XC, light Trail TR
    ETRTO: 622x30
    Inner width: 30 mm
    Outside width: 34 mm
    Rim height: 20 mm
    Offset: 0.0 mm (symmetrical)
    recommended tire width: 58 - 66 mm
    maximum tire pressure: 3,5 Bar
    system weight: 125 kg
    Color / finish: black / anodized
    Weight: 357g
Spokes
Spokes
  • Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!

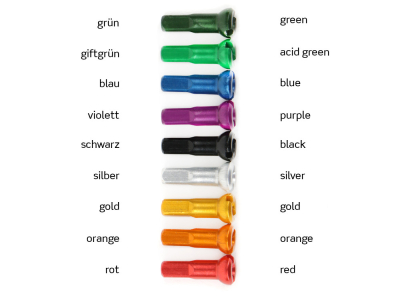

Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details

Description

Wheelset 29 "XC | Carbon-Ti MTB Straightpull 6-hole hubs | Newmen carbon rims

intended use : Cross Country XC to easy Trail TR

With this wheelset, even racers can really let it go. The indestructible carbon-Ti hubs and the excellently processed Newmen rims forgive driving mistakes. The balanced selection of components guarantees you a high level of reliability and a long service life.

Hubs
The bodies of the X-Hub SP hubs are elaborately CNC-milled and rotate around a multi-butted aluminum axis. With a diameter of 17 mm, this brings a good degree of rigidity to the hub. High-quality, double-sealed ball bearings are installed, which ensure a permanently silky smooth run. The axis play can easily be adjusted by hand from the outside. The new pre-load adjustment ring is now easier to operate.
The freewheel on the rear hub engages with four pawls, each with three teeth, in a 56-fold titanium tooth ring, in order to be able to withstand even performance-oriented riders.
The main advantages of the Straightpull hubs, in addition to the more modern design, are non-contact spokes that do not cause any unpleasant noises and spoke heads that cannot work into the spoke flange. If desired, the Straightpull hubs can also be cross-lapped.

rims
Like all Newmen carbon rims, the Advanced rims are made of high-end UD fibers and impress with their first-class mechanical properties and extremely low weight. They are the ideal basis for a tough cross country wheelset.
The hookless construction makes them ideal for tubeless use. The significantly reinforced rim flange withstands possible punctures better and allows driving with little air pressure. In order to avoid weak points and to increase the service life, the spoke holes were drilled in a special process. The large inner width also gives wide tires a reliable hold. Due to the slightly outward-facing flanks, the shape of the tire is rounder, which results in significantly better cornering grip and increased safety.


Wheel construction at R2-Bike

Our wheels are completely assembled by hand by our wheel builders. During the entire construction process, it is important that not only the concentricity is correct, but also that the spoke tension is as even as possible. The special care allows us to give a lifelong guarantee against broken spokes, as long as this was not caused by force!

You will also receive the following services for our balance bikes:

A universal impeller bag for all common sizes.
A spare spoke + nipple in all required spoke lengths so that the wheel can be repaired at short notice even after an accident.
A free initial inspection of the impeller, during which the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant a 100% discount on all labor costs and only charge the material!


Technical specifications:

intended use : Cross Country XC to easy Trail TR
Impeller size: 29 "(ETRTO: 622 x 25 or 30 mm)
Rim type: Clincher (wire and folding tires)
Brake type: disc brake
Brake disc mount: 6-hole

Weights:

1185g (lightest variant: Lefty 2.0 + 12x142 mm, SL XA 25 rims, Sapim CX-Ray)
1384g (heaviest variant: Boost + Boost, SL XA 30 rims, Sapim Race)

Note:
Due to manufacturing fluctuations for all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals / rim stickers.

The specified delivery time refers to the usual duration for the assembly of the wheelset and does not reflect the availability of the individual parts.

If you want a special spoke on the rear wheel, e.g. for the Cannondale Ai rear triangle or for the EVO6, please contact our service team.


Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x construction certificate
2x hologram sticker
