Description
Wheelset 29 "TR AM | Newmen MTB Straightpull 6-hole hubs | ENVE carbon rims
intended use : Trail TR, All Mountain AM
With this wheelset you can really let it rip even in difficult terrain. The indestructible Newmen hubs and the excellently processed ENVE rims forgive a driving error. The balanced selection of components guarantees you a high level of reliability and a long service life.

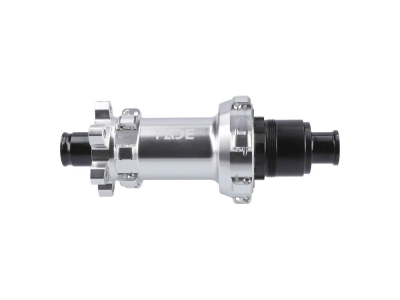

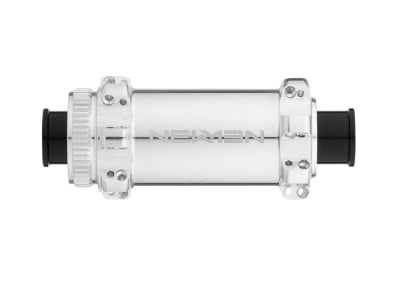

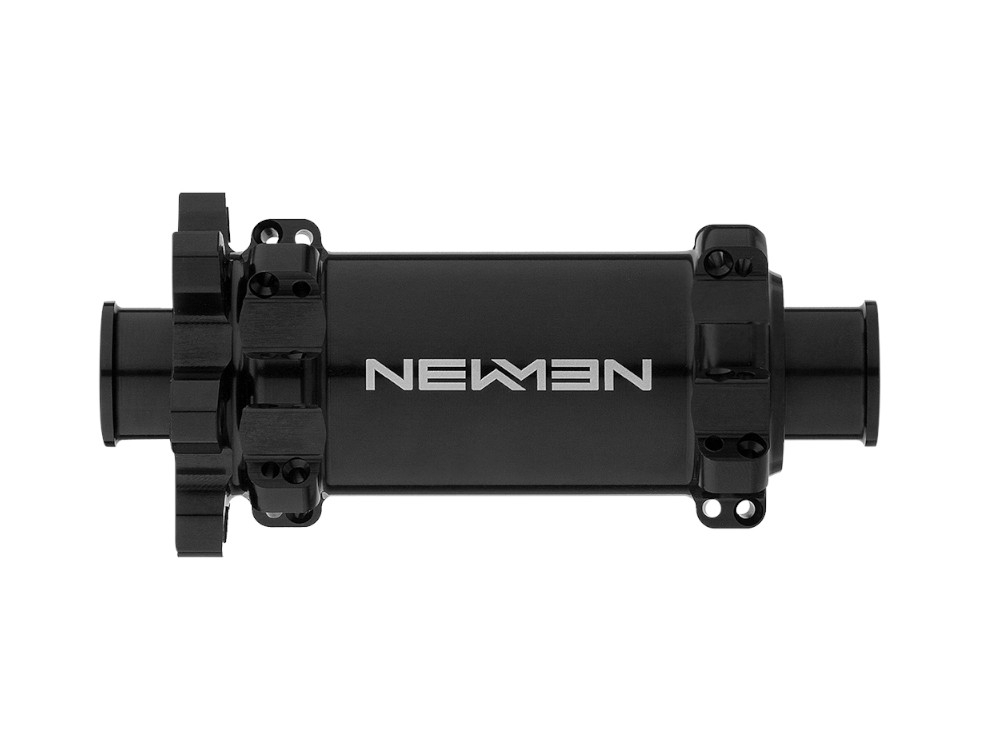

Hubs
The Newmen FADE hubs will also find many fans again. Here, too, you do not need to worry about setting the axial bearing play. The durable, double-sealed industrial bearings are precisely and stress-free already pressed in at the factory. A high degree of user-friendliness was gained through this further development. You can spend the saved time better on your favorite trail.
The construction of the freewheel is completely different from the previous model. The goal was a low noise level. The result was the FADE pawl system. 3 pawls engage in a new type of tooth profile. To increase durability, the diameter was increased and the individual pawls were made short and wide. This means that the forces generated are distributed over a larger area.
Despite the relatively low weight, security was not compromised. It is better to use a little more material at critical points, like. For example, at the transition between the brake disc and spoke mount, as risking a defect.

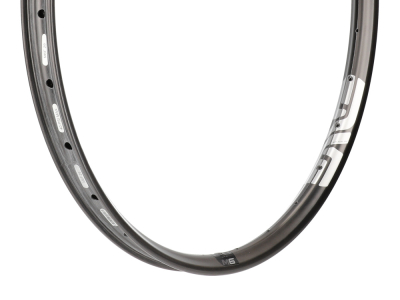

rims
ENVE carbon rims are developed by ENVE in the USA and manufactured in compliance with the highest quality requirements at its headquarters in Utah. The engineers at ENVE have years of experience with the use of carbon in the field of cycling and know what requirements a top product like these carbon rims must meet. At ENVE everything is done to utilize the advantages of carbon and to eliminate its disadvantages. So stiff and extremely light rims were developed in which all fibers can run without interruption, which corresponds to the best possible use of the material thickness. This principle has been perfected for the spoke holes, as continuous fiber strands form the mount for the spoke nipples. Aluminum inserts, as are common with other carbon rims, can therefore be dispensed with during production. This reduces the weight and at the same time allows much higher spoke tensions which in turn allow the construction of stiffer wheels.
Wheel construction at R2-Bike
Our wheels are completely assembled by hand by our wheel builders. During the entire construction process, it is important that not only the concentricity is correct, but also that the spoke tension is as even as possible. The special care allows us to give a lifelong guarantee against broken spokes, as long as this was not caused by force!
You will also receive the following services for our balance bikes:
A universal impeller bag for all common sizes.
A spare spoke + nipple in all required spoke lengths to be able to repair the wheel at short notice even after an accident.
A free initial inspection of the impeller, during which the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant a 100% discount on all labor costs and only charge the material!
Technical specifications:
intended use : Trail TR, All Mountain AM
Impeller size: 29 "(ETRTO: 622 x see detailed description)
Rim type: Clincher (wire and folding tires)
Brake type: disc brake
Brake disc mount: 6-hole
Weights:
1481g (lightest variant: Boost + Boost, M630, Sapim CX-Ray)
1655g (heaviest variant: Boost + Boost, M640, Sapim Race)
Note:
Due to manufacturing fluctuations in all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals / rim stickers.
The specified delivery time refers to the usual duration for the assembly of the wheelset and does not reflect the availability of the individual parts.
If you want a special spoke on the rear wheel, e.g. for the Cannondale Ai rear end or for EVO6, please contact our service team.
Scope of delivery:
1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
2x ENVE tubeless kit (already mounted on request)
1x wheel bag
4x spare spokes including nipples
1x construction certificate
2x hologram sticker
