Wheelset 29" TR AM | Hope MTB 6-Hole Hubs | Newmen Aluminum Rims

Item number:
46055
Product weight: 1860 g
Brands: r2-bike

from 747,50 €
MSRP: 804,68 €
You save 7,11%, that is 57,18 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

Availability:
handmade - in about 2 - 3 months
Configure now

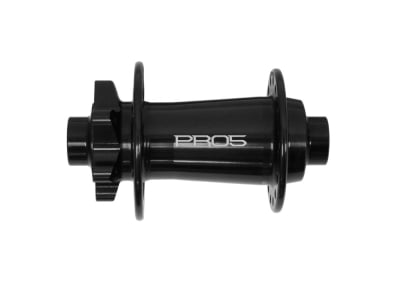

Hope Front Hub J-Bend 6-Hole
Hope Front Hub J-Bend 6-Hole
  • Brake disc mount: 6-hole
    Spoke type: J-Bend (curved)
    Storage: 2x industrial deep groove ball bearings
    Color: black, red, blue, silver, orange or purple
    Weight: 176g

    With the 110 millimeter wide BOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing.

Hope Rear Hub J-Bend 6-Hole
Hope Rear Hub J-Bend 6-Hole
  • Brake disc mount: 6-hole
    Spoke type: J-Bend (curved)
    Bearing: 4x stainless steel industrial ball bearings
    Freewheel type: 6 pawls, 54 detents (offset design 108 detent points, maximum 3.33° free travel)
    Freewheel Compatibility: 12-speed Shimano Micro Spline
    Colour: black, red, blue, silver, orange or purple
    Weight: 320g

    With the 157 millimeter wide SuperBoost hub, stiffer wheels with a more even spoke angle on both sides can be built thanks to a wider flange spacing.

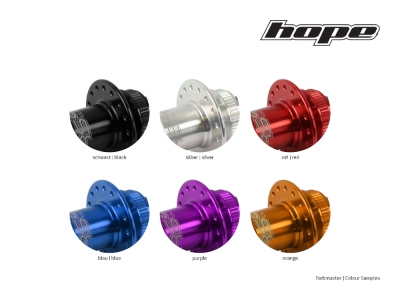

Color Hope Hubs
Color Hope Hubs

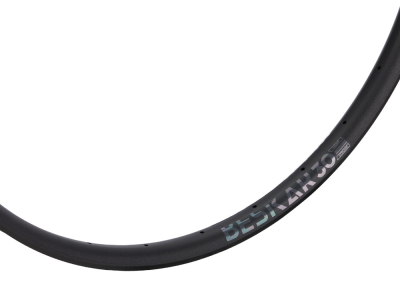

NEWMEN Rims Trail - All Mountain
NEWMEN Rims Trail - All Mountain
  • Area of ??application: Trail TR, All Mountain AM
    ETRTO: 622x30
    Inner width: 30 mm
    Outside width: 34 mm
    Rim height: 20 mm
    Offset: 0.0 mm (symmetrical)
    recommended tire width: 58 - 66 mm
    maximum tire pressure: 2.5 bar
    maximum system weight: 125 kg
    Color / finish: black / anodized
    Weight: 532g

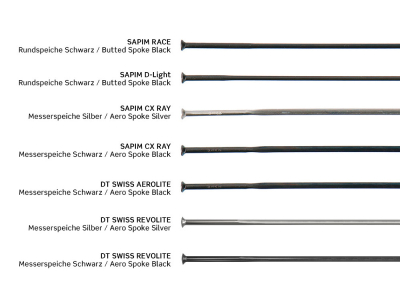

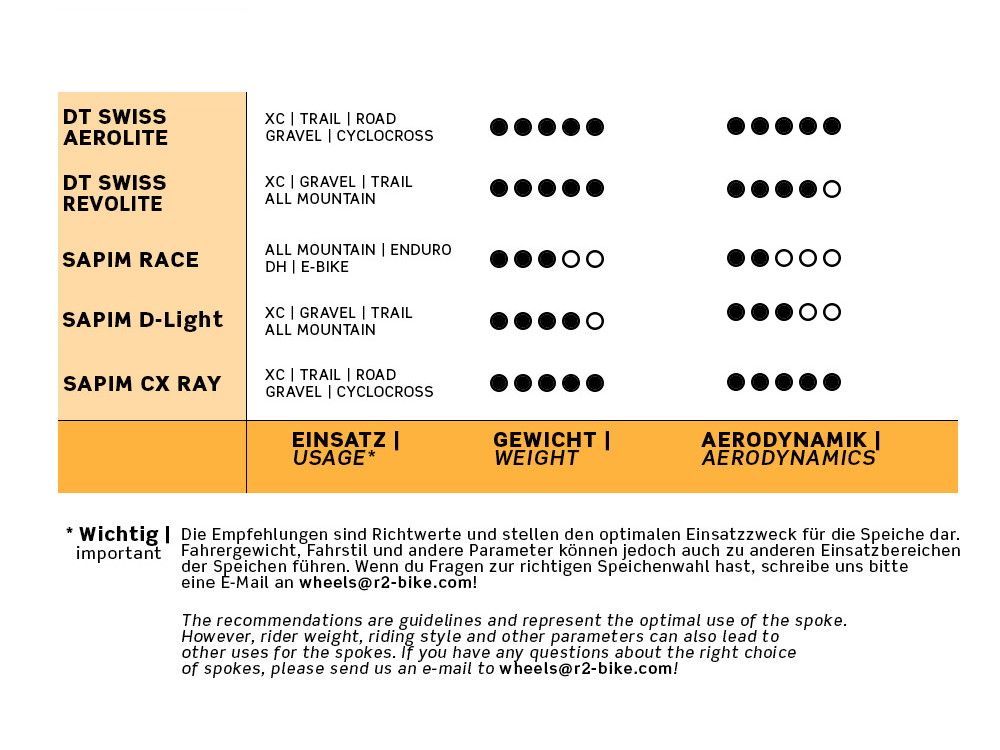

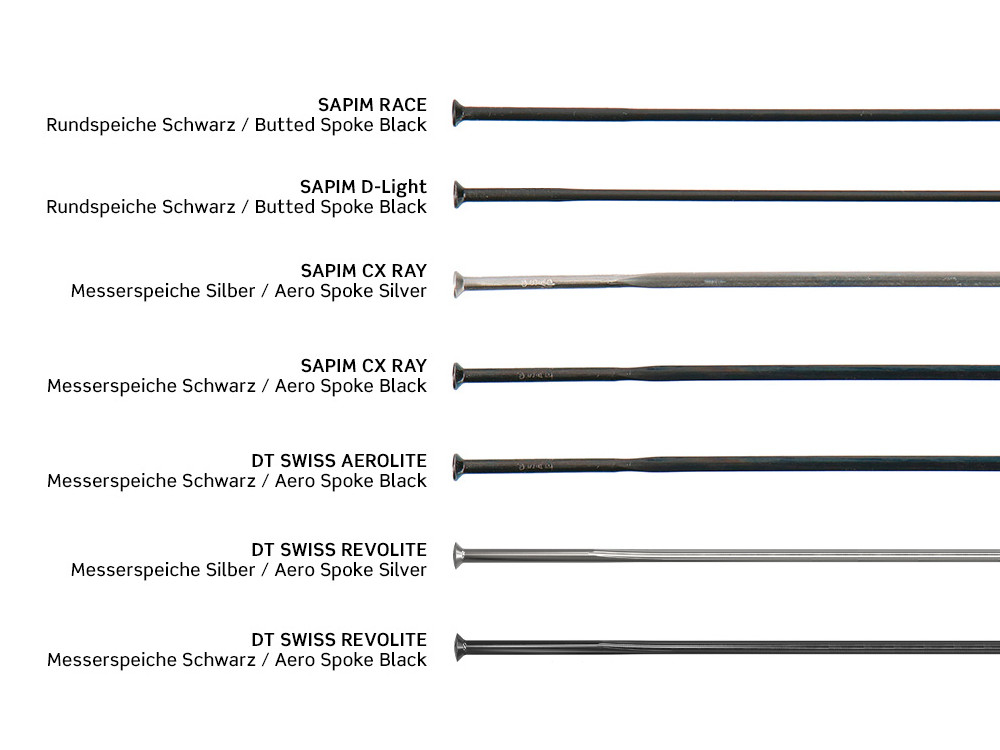

Spokes
Spokes
  • Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!


Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details

Description

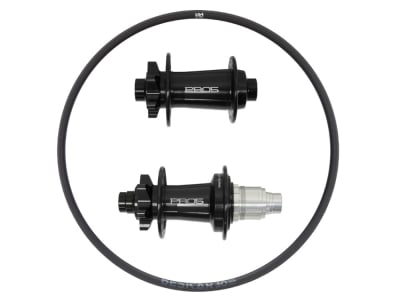

Wheelset 29" TR AM | Hope MTB 6-hole hubs | Newmen aluminum rims

intended use : Trail TR to All Mountain AM

With this wheelset you can let it rip even in difficult terrain. The indestructible Hope hubs and the excellently processed Newmen rims also forgive a driving mistake. The balanced selection of components guarantees you high reliability and a long service life.

hubs
The Pro 5 hubs from the English cult manufacturer from Barnoldswick rotate in the center of the wheelset. The experience of 30 years of designing and manufacturing high-quality drive elements flowed into their development with the aim of improving proven technology in order to meet the demands of current and future bicycle technology.
The design of the rear wheel hub differs significantly from the previous model. Their enlarged body generates more rigidity without increasing the weight. This is particularly noticeable in a much more direct driving behavior. At the same time, the diameter of the spoke flange increased. This simplifies the construction of very stable wheels.
The highlight of the rear wheel hub is the new 6-pawl freewheel system in offset design. This is characterized by the fact that three of the six pawls are always engaged when driving in order to distribute the load evenly. In addition, the freewheel toothing has been increased from 44 (Pro 4) to 54 teeth, resulting in a total of 108 locking points and a low idle travel of just 3.33°. In addition, some material has been removed from the springs of the pawls, which slightly reduces the spring force and reduces their resistance. With the Pro 5, Hope creates the right balance between smooth running and durability.
Typical for Hope is the perfect workmanship. The hub can withstand negative external influences for a long time, which is also thanks to the high-quality anodizing and the very well sealed stainless steel industrial bearings. Should the ravages of time gnaw at it at some point, it can be disassembled and serviced without much effort. In addition, conversion to a different hub standard is possible without any problems.

rims
The aluminum rims from the Allgäu impress with their low weight and yet high rigidity. Due to the high-strength aluminum alloy, they are a perfect basis for high-quality wheel sets. The flared rim flanks make these rims more resistant to dents and external forces and give the tire a rounder shape and thus more cornering grip. The rim profile with the straight nipple contact surface is specially designed for the use of specially developed washers (MG Washer) and ensures very high "Spoke Pull Out" values in this area. The rim flanges, on the other hand, are much more massive and therefore more robust than rims in the same weight class.


Impeller construction at R2-Bike

Our wheels are assembled entirely by hand by our wheel builders. During the entire construction, it is important that not only the concentricity is right, but also that the spoke tension is as even as possible. This special care allows us to give a lifetime guarantee against broken spokes, as long as this is not caused by violence.

Furthermore, the following services are already included:

You get a universal wheel bag for all common sizes.
You get a replacement spoke with nipples in all required spoke lengths, so that you can repair the wheel at short notice after an accident.
You get a free initial inspection of the impeller, with the resulting work being completely free. Only shipping costs are charged.
You get a crash replacement promise: If your wheel is damaged due to force majeure, we will rebuild it once. We grant a 100% discount on all labor costs and only charge for the material.


Technical specifications:

intended use : Trail TR to All Mountain AM
Wheel size: 29" (ETRTO: 622 x 30)
Rim Type: Clincher (clincher and folding)
Brake type: disc brake
Brake disc mount: 6-hole

weights:

1860g (lightest variant: 15x100 mm + 12x142 mm, SL A. 30 rims, Sapim CX-Ray)
1987g (heaviest variant: Boost + Boost, SL A. 30 rims, Sapim Race)

Hints:
Due to manufacturing variations in all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals/rim stickers.

The specified delivery time refers to the usual time it takes to assemble the wheelset and does not reflect the availability of the individual parts.


Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
2x hologram stickers
