Wheelset 29" TR AM EN | Industry Nine MTB 6-Hole Hubs | Syntace Carbon Rims

Item number:
Product weight: 1719 g
Brands: r2-bike

from 1.877,50 €
MSRP: 2.027,68 €
You save 7,41%, that is 150,18 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

handmade - in about 2 - 3 months
Configure now

Industry Nine Hub Set J-Bend 6-Hole
Industry Nine Hub Set J-Bend 6-Hole
  • Hub front:

    Brake disc mount: 6-hole
    Spoke type: J-Bend (curved)
    Bearing: 2x industrial deep groove ball bearings
    Colour: purple
    Weight: 165g (manufacturer information)

    Rear hub:

    Brake disc mount: 6-hole
    Spoke type: J-Bend (curved)
    Bearing: 4x industrial ball bearings
    Freewheel type: 6 pawls, 115 detents
    Freewheel compatibility: 12-speed Shimano Micro Spline
    Colour: purple
    Weight: 286g (manufacturer information)

    With BOOST hubs, stiffer wheels with a more even spoke angle on both sides can be built thanks to a wider flange spacing.

Syntace Rims Trail - All Mountain - Enduro
Syntace Rims Trail - All Mountain - Enduro
  • Area of ??application: Trail TR, All Mountain AM, Enduro EN
    ETRTO: 622x33
    Inside width: 33 mm
    Outside width: 40 mm
    Rim height: 28 mm
    Offset: no
    recommended tire width: 2.3 "- 2.8"
    maximum tire pressure: N / A
    maximum system weight: 130 kg (driver, bike, clothing and possibly luggage)
    Color / finish: black / UD matt
    Weight: 477g

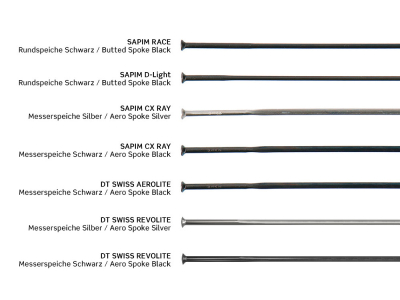

  • Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details


Wheelset 29 "TR AM EN | Industry Nine MTB 6-hole hubs | Syntace carbon rims

intended use : Trail TR, All Mountain AM to Enduro EN

With this wheelset you can really get it going even in difficult terrain. The indestructible Industry Nine hubs and the extremely stable Syntace rims also forgive a driving mistake. The balanced selection of components guarantees high reliability and a long service life.

The Industry Nine Hydra Classic hubs are a real gem on every bike. Developed and produced in Asheville, North Carolina, they favorably set themselves apart from the competition with many small technical refinements. With their externally sealed bearing and stable axle , they are optimally protected against environmental influences and are also ideally equipped for downhill use. Tapered spoke flanges help to reduce the forces on the sensitive spoke heads and thus prevent spoke breaks.
However, the pawl freewheel on the rear wheel hub is revolutionary. It consists of a drive ring with 115 teeth and 6 staggered pawls. These are designed so that as soon as one of them has a frictional connection, the others can also absorb torques shortly afterwards. This means that a single jack only has the power to carry it for a very short time. The big plus of this system is an extremely short free travel with 0.52 °, which brings clear advantages in technical passages or when hard starts. In addition, the fine grid leads to a unique soundscape on the impeller.
The maintenance effort is also relatively low. You can disassemble and clean the hub without tools.

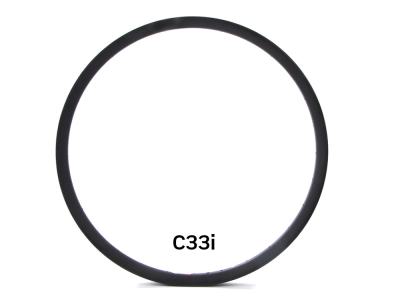

The starting signal for wide and at the same time light rims from Syntace was set with the aluminum rims of the W series. In order to be able to push the weight even further with the same stability, Syntace let the gained know-how of two decades in the construction of carbon parts flow into the production of a high-end carbon rim. A patent-pending reinforcement of the rim flange makes the C33i rim insensitive to punctures and guarantees a long service life. The large inner width of 33 millimeters also offers 2.5 "wide tires with low air pressures very good grip. Thanks to the very light weight of 477 grams for an Enduro 29" rim, you save real grain with the C33i uphill to give everything downhill can.

Wheel construction at R2-Bike

Our wheels are completely assembled by hand by our wheel builders. During the entire construction, it is important that not only the concentricity is correct, but also that the spoke tension is as even as possible. The special care allows us to give a lifelong guarantee against broken spokes, as long as this has not been caused by violence!

You will also receive the following services for our wheels:

A universal impeller bag for all common sizes.
A spare spoke + nipple in all required spoke lengths in order to be able to repair the wheel at short notice even after accidents.
A free initial inspection of the wheel, in which the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant 100% discount on all labor costs and only charge the material!

Technical specifications:

intended use : Trail TR, All Mountain AM to Enduro EN
Wheel size: 29 "(ETRTO: 622 x see detailed description)
Rim type: clincher (clincher and folding tire)
Brake type: disc brake
Brake disc mount: 6-hole


1719g (lightest variant: Boost + Boost SRAM XD, C33i, Sapim CX-Ray)
1803g (heaviest variant: Boost + Boost SRAM XD, C33i, Sapim Race)

Variations in weight are possible due to manufacturing fluctuations in all components. The information is usually determined without rim tape, valves and decals / rim stickers.

The specified delivery time refers to the usual duration for the assembly of the wheelset and does not reflect the availability of the individual parts.

Should you require special spokes on the rear wheel, e.g. for the Cannondale Ai rear triangle or for EVO6, please contact our service team.

Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x construction certificate
2x hologram stickers
