Wheelset 29 "TR AM EN | Industry Nine MTB 6-hole hubs | ENVE carbon rims
intended use : Trail TR, All Mountain AM to Enduro EN
With this wheelset you can really get it going even in difficult terrain. The indestructible Industry Nine hubs and the excellently manufactured ENVE rims also forgive a driving mistake. The balanced selection of components guarantees high reliability and a long service life.

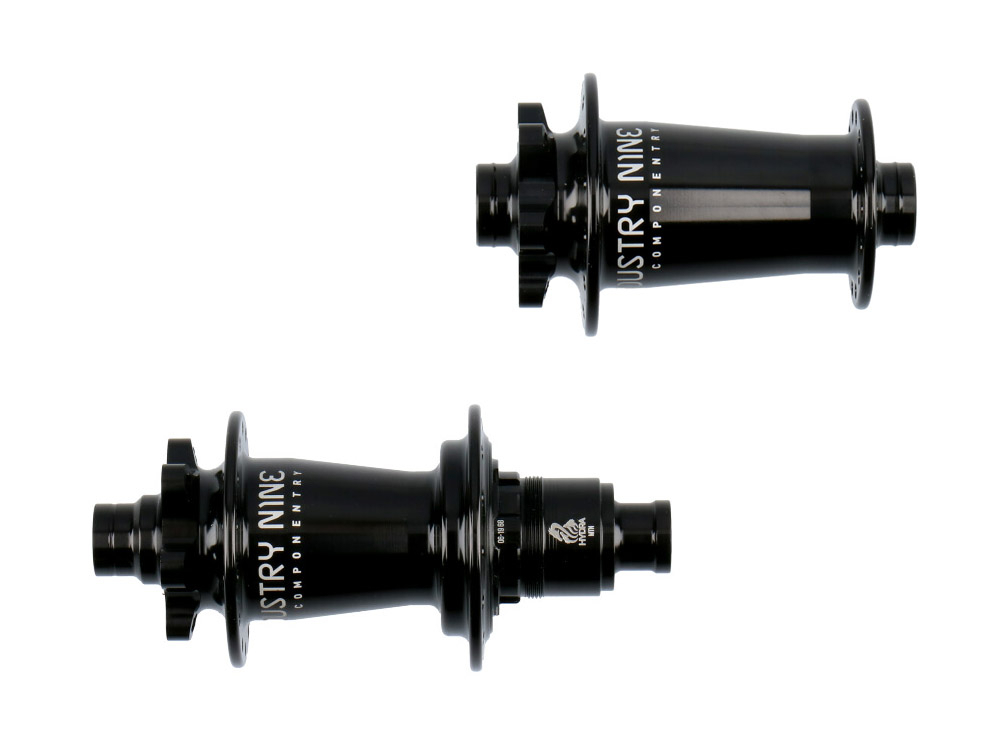

Hubs
The Industry Nine Hydra Classic hubs are a real gem on every bike. Developed and produced in Asheville, North Carolina, they favorably set themselves apart from the competition with many small technical refinements. With their externally sealed bearing and stable axle , they are optimally protected against environmental influences and are also ideally equipped for downhill use. Tapered spoke flanges help to reduce the forces on the sensitive spoke heads and thus prevent spoke breaks.
However, the pawl freewheel on the rear wheel hub is revolutionary. It consists of a drive ring with 115 teeth and 6 staggered pawls. These are designed so that as soon as one of them has a frictional connection, the others can also absorb torques shortly afterwards. This means that a single jack only has the power to carry it for a very short time. The big plus of this system is an extremely short free travel with 0.52 °, which brings clear advantages in technical passages or when hard starts. In addition, the fine grid leads to a unique soundscape on the impeller.
The maintenance effort is also relatively low. You can disassemble and clean the hub without tools.

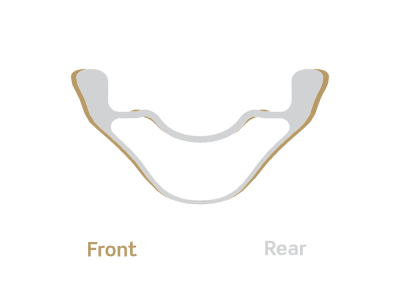

rims
ENVE carbon rims are developed by ENVE in the USA and manufactured in compliance with the highest quality requirements at the headquarters in Utah. The engineers at ENVE have years of experience with the use of carbon in the field of cycling and know what requirements a top product like these carbon rims have to meet. At ENVE, everything is done to take advantage of carbon and eliminate its disadvantages. So stiff and extremely light rims were developed in which all fibers can run without interruption, which corresponds to the best possible use of the material thicknesses. This principle has been perfected in the spoke holes by using continuous fiber strands to mount the spoke nipples. Aluminum inserts, as are common with other carbon rims, can thus be dispensed with during production. This reduces the weight and at the same time allows much higher spoke tensions, which in turn allow the construction of stiffer wheels.
Wheel construction at R2-Bike
Our wheels are completely assembled by hand by our wheel builders. During the entire construction, it is important that not only the concentricity is correct, but also that the spoke tension is as even as possible. The special care allows us to give a lifelong guarantee against broken spokes, as long as this has not been caused by violence!
You will also receive the following services for our wheels:
A universal impeller bag for all common sizes.
A spare spoke + nipple in all required spoke lengths in order to be able to repair the wheel at short notice even after accidents.
A free initial inspection of the wheel, in which the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant 100% discount on all labor costs and only charge the material!
Technical specifications:
intended use : Trail TR, All Mountain AM to Enduro EN
Wheel size: 29 "(ETRTO: 622 x see detailed description)
Rim type: clincher (clincher and folding tire)
Brake type: disc brake
Brake disc mount: 6-hole
Weights:
1575g (lightest variant: Boost + Boost XD, M630, 28 holes, Sapim CX-Ray)
2243g (heaviest version: Boost + Boost XD, M930, 32 hole, Sapim Race)
Note:
Variations in weight are possible due to manufacturing fluctuations in all components. The information is usually determined without rim tape, valves and decals / rim stickers.
The specified delivery time refers to the usual duration for the assembly of the wheelset and does not reflect the availability of the individual parts.
Should you require special spokes on the rear wheel, e.g. for the Cannondale Ai rear triangle or for EVO6, please contact our service team.
Scope of delivery:
1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
2x ENVE tubeless kit (already assembled on request)
1x wheel bag
4x spare spokes including nipples
1x construction certificate
2x hologram stickers
