Wheelset 29" TR AM EN | DT Swiss 350 MTB Straightpull 6-Hole Hubs | Syntace Aluminum Rims

Item number:
Product weight: 1697 g
Brands: r2-bike

from 747,50 €
MSRP: 837,48 €
You save 10,74%, that is 89,98 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

handmade - in about 2 - 3 months
Configure now

We aren't allowed to deliver this item to the United States.

DT Swiss Front Hub Straightpull 6-Hole
DT Swiss Front Hub Straightpull 6-Hole
  • Brake disc mount: 6-Hole
    Spoke type: Straightpull (straight)
    Storage: 2x industrial ball bearings
    Color: black with white decals
    Weight: 144g

    With the 110 millimeter wide BOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing.

DT Swiss Rear Hub Straightpull 6-Hole
DT Swiss Rear Hub Straightpull 6-Hole
  • Brake disc mount: 6-hole
    Spoke type: straight pull
    Bearing: 4x industrial ball bearings
    Freewheel type: 2 toothed discs, 36 detents
    Freewheel compatibility: 12-speed Shimano Micro Spline
    Colour: black with white decals
    Weight: 244g

    With the 148 millimeter wide BOOST hub, stiffer wheels with a more even spoke angle on both sides can be built thanks to a wider flange spacing.

Syntace Rims Trail - All Mountain - Enduro
Syntace Rims Trail - All Mountain - Enduro
  • Area of ??application: All Mountain AM, Enduro EN
    ETRTO: 622x40
    Inside width: 40 mm
    Outside width: 44 mm
    Rim height: 22 mm
    Offset: no
    recommended tire width: 2.5 "- 3.0"
    maximum tire pressure: N / A
    maximum system weight: 110 kg (driver, bike, clothing and possibly luggage)
    Color / finish: black / matt
    Weight: 610g

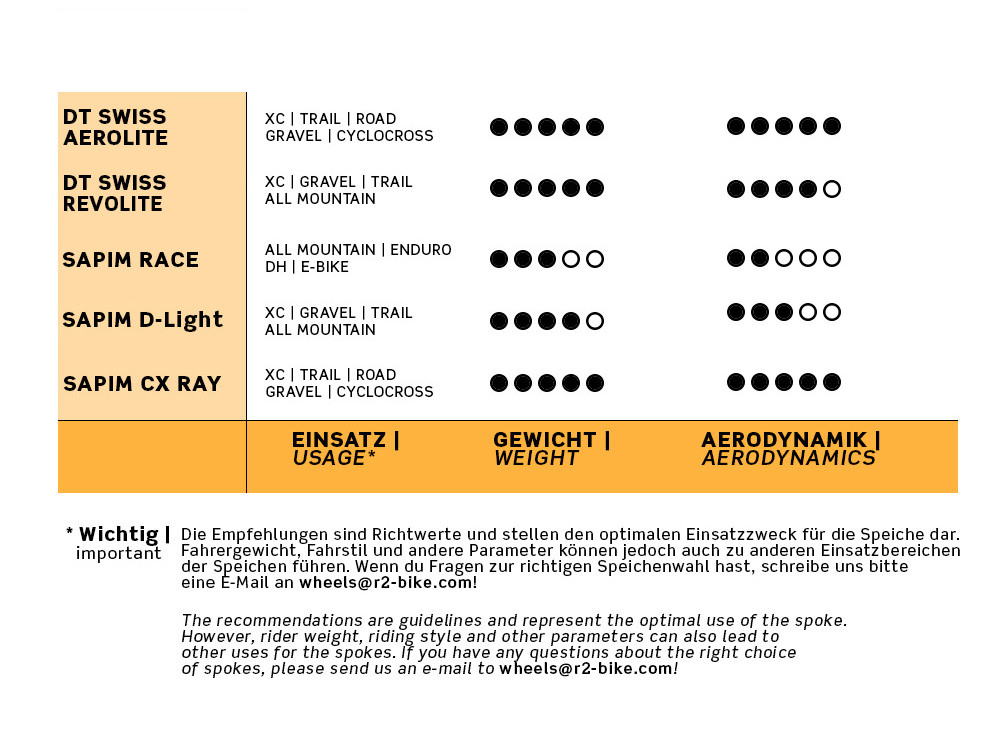

  • Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details


Wheelset 29" TR AM EN | DT Swiss 350 MTB Straightpull 6-hole hubs | Syntace aluminum rims

intended use : Trail TR, All Mountain AM to Enduro EN

Stable, functional and also inexpensive - this is the best way to characterize this wheelset. The combination of Syntace rims and the proven DT-Swiss hubs should therefore always be on the shortlist. The balanced selection of components guarantees you high reliability and a long service life.

Switzerland is known for good chocolate, first-class cheese and wonders of precision engineering. The dedication to detail that produces these products is also reflected in the DT Swiss 350 hubs. Above all, the love for mechanics is easy to identify. Due to their simple but well thought-out construction, the current 350 hubs have become significantly lighter compared to the previous versions. The Ratchet freewheel system, tried and tested by the DT-Swiss 240 hubs, makes the hubs an extremely reliable companion. Compared to pawl systems, the built-in toothed disk freewheel offers a more extensive power transmission, which significantly reduces wear. With 36 teeth, the hub reacts very directly to acceleration. The new shape of the end caps makes dismantling even easier, so that changing over to other axle type standards is even easier.

Narrow rims and heavy tires used to be the norm. Today, however, wide rims can be combined with new, light tire types. But really wide, high-quality rims were inevitably still a bit heavier than their narrow brothers, otherwise durability suffered. Syntace was the first to break this vicious circle in 2011. The original Syntace rim W33 was the first such wide and light aluminum rim on the market. After more than 5 years of experience, they have improved this with an even better aluminum alloy and with a profile that has been further developed in many test runs. And still made 50 g lighter.
Significantly more crack-resistant spoke anchoring in the rim base thanks to the SmoothFit profile and perfectly angled embedding of the nipples in the rim base ensure a durable construction without increasing the weight with additional washers.
The V-shape profile with the outwardly positioned and reinforced rim flanges reliably holds the tire on the rim and is extremely stable.

Impeller construction at R2-Bike

Our wheels are assembled entirely by hand by our wheel builders. During the entire construction, it is important that not only the concentricity is right, but also that the spoke tension is as even as possible. The special care allows us to give a lifetime guarantee against broken spokes, as long as this is not caused by violence!

You will also receive the following services with our wheels:

A universal impeller bag for all common sizes.
A spare spoke + nipple in all required spoke lengths to be able to repair the impeller at short notice even after an accident.
A free initial check of the impeller, where the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant a 100% discount on all labor costs and only charge for the material!

Technical specifications:

intended use : Trail TR, All Mountain AM to Enduro EN
Wheel size: 29" (ETRTO: 622 x see detailed description)
Rim Type: Clincher (clincher and folding)
Brake type: disc brake
Brake disc mount: 6-hole


1697g (lightest variant: 15x100 mm + 12x142 mm, SRAM XD, W28i, Sapim CX-Ray)
1986g (heaviest variant: Boost + Boost, Shimano/SRAM, W40i, Sapim Race)

Due to manufacturing variations in all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals/rim stickers.

The specified delivery time refers to the usual time it takes to assemble the wheelset and does not reflect the availability of the individual parts.

If you would like special spokes on the rear wheel, e.g. for the Cannondale Ai rear triangle or for EVO6, please contact our service team.

Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
2x hologram stickers
