Wheelset 29" TR AM | DT Swiss 240 EXP MTB Straightpull 6-Hole Hubs | Newmen Aluminum Rims

Item number:
46094
Product weight: 1683 g
Brands: r2-bike

from 747,50 €
MSRP: 893,48 €
You save 16,34%, that is 145,98 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

Availability:
handmade - in about 4 - 6 weeks
Configure now

We aren't allowed to deliver this item to the United States.

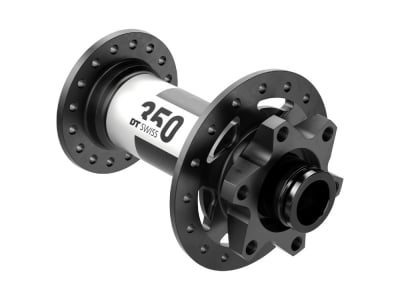

DT Swiss Front Hub Straightpull 6-Hole
DT Swiss Front Hub Straightpull 6-Hole
  • Brake disc mount: 6-Hole
    Spoke type: Straightpull (straight)
    Storage: 2x industrial ball bearings
    Color: black with white-red decals
    Weight: 118g

    With the 110 millimeter wide BOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing.
DT Swiss Rear Hub Straightpull 6-Hole
DT Swiss Rear Hub Straightpull 6-Hole
  • Brake disc mount: 6-hole
    Spoke type: Straightpull (straight)
    Storage: 4x industrial ball bearings
    Freewheel type: 2 tooth lock washers, 36 grids
    Freewheel compatibility: 12-speed Shimano Micro Spline
    Color: black with white-red decals
    Weight: 219g

    With the 157 millimeter wide SuperBOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing. In addition, the wider rear triangle allows the use of more voluminous tires.
NEWMEN Rims Trail - All Mountain
NEWMEN Rims Trail - All Mountain
  • Area of ??application: Trail TR, All Mountain AM
    ETRTO: 622x30
    Inner width: 30 mm
    Outside width: 34 mm
    Rim height: 20 mm
    Offset: 0.0 mm (symmetrical)
    recommended tire width: 58 - 66 mm
    maximum tire pressure: 2.5 bar
    maximum system weight: 125 kg
    Color / finish: black / anodized
    Weight: 532g
Spokes
Spokes
  • Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!


Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details

Description

Wheelset 29" TR AM | DT Swiss 240 EXP MTB Straightpull 6-hole hubs | Newmen aluminum rims

Area of intended use : Trail TR to All Mountain AM

With this wheelset you can let it rip even in difficult terrain. The indestructible DT Swiss hubs and the excellently processed Newmen rims also forgive a driving mistake. The balanced selection of components guarantees you high reliability and a long service life.

hubs
Lighter, stiffer, more precise and easier to maintain - these are the strengths of the newly launched DT Swiss 240 hubs. These properties were achieved through the Ratchet EXP technology. With this, the hubs not only get by with fewer components and thus lower weight and less wear, it also allows the bearing on the drive side to be placed significantly further out. The larger distance between the bearings results in a higher rigidity of the hub, a lower bearing load and thus greater durability. The stiffness on the hub body serves to distribute the load more evenly on the spokes. Driving and braking forces are transmitted even better from both spoke flanges to all spokes. Unilateral peak loads are prevented, which protects the hub, spokes and rim. The super reliable toothed disc freewheel system with its large contact surface and 36 locking points ensures extremely direct and reliable power transmission.

rims
The aluminum rims from the Allgäu impress with their low weight and yet high rigidity. Due to the high-strength aluminum alloy, they are a perfect basis for high-quality wheel sets. The flared rim flanks make these rims more resistant to dents and external forces and give the tire a rounder shape and thus more cornering grip. The rim profile with the straight nipple contact surface is specially designed for the use of specially developed washers (MG Washer) and ensures very high "Spoke Pull Out" values in this area. The rim flanges, on the other hand, are much more massive and therefore more robust than rims in the same weight class.


Impeller construction at R2-Bike

Our wheels are assembled entirely by hand by our wheel builders. During the entire construction, it is important that not only the concentricity is right, but also that the spoke tension is as even as possible. The special care allows us to give a lifetime guarantee against broken spokes, as long as this is not caused by violence!

You will also receive the following services with our wheels:

A universal impeller bag for all common sizes.
A spare spoke + nipple in all required spoke lengths to be able to repair the impeller at short notice even after an accident.
A free initial check of the impeller, where the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant a 100% discount on all labor costs and only charge for the material!


Technical specifications:

Area of intended use : Trail TR to All Mountain AM
Wheel size: 29" (ETRTO: 622 x 30)
Rim Type: Clincher (clincher and folding)
Brake type: disc brake
Brake disc mount: 6-hole

weights:

1683g (lightest variant: 15x100 mm + 12x142 mm, SL A. 30 rims, 28 holes, Sapim CX-Ray)
1785g (heaviest variant: Boost + SuperBoost, SL A. 30 rims, 28 holes, Sapim Race)

Notice:
Due to manufacturing variations in all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals/rim stickers.

The specified delivery time refers to the usual time it takes to build the wheelset and does not reflect the availability of the individual parts.


Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
2x hologram stickers
