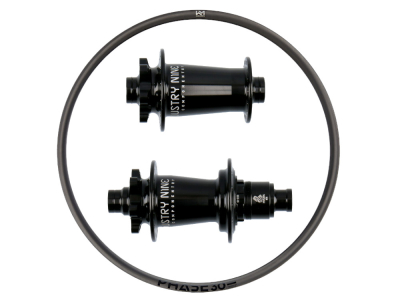

Wheelset 29 "AM EN | Industry Nine MTB 6-hole hubs | Newmen carbon rims
intended use : Trail TR, All Mountain AM, Enduro EN
With this wheelset, racers can really get it down. The indestructible Industry Nine hubs and the excellently processed Newmen rims also forgive a driving mistake. The balanced selection of components guarantees high reliability and a long service life.
Hubs

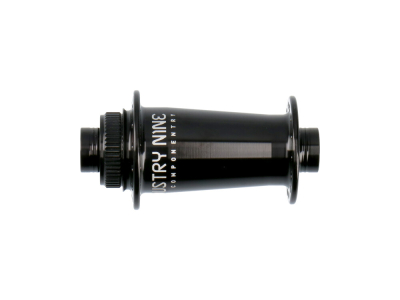

The Industry Nine Hydra Classic hubs are a real gem on every bike. Developed and produced in Asheville, North Carolina, they favorably set themselves apart from the competition with many small technical refinements. With their externally sealed bearing and stable axle , they are optimally protected against environmental influences and are also ideally equipped for downhill use. Tapered spoke flanges help to reduce the forces on the sensitive spoke heads and thus prevent spoke breaks.
However, the pawl freewheel on the rear wheel hub is revolutionary. It consists of a drive ring with 115 teeth and 6 staggered pawls. These are designed so that as soon as one of them has a frictional connection, the others can also absorb torques shortly afterwards. This means that a single jack only has the power to carry it for a very short time. The big plus of this system is an extremely short free travel with 0.52 °, which brings clear advantages in technical passages or when hard starts. In addition, the fine grid leads to a unique soundscape on the impeller.
The maintenance effort is also relatively low. You can disassemble and clean the hub without tools.
rims

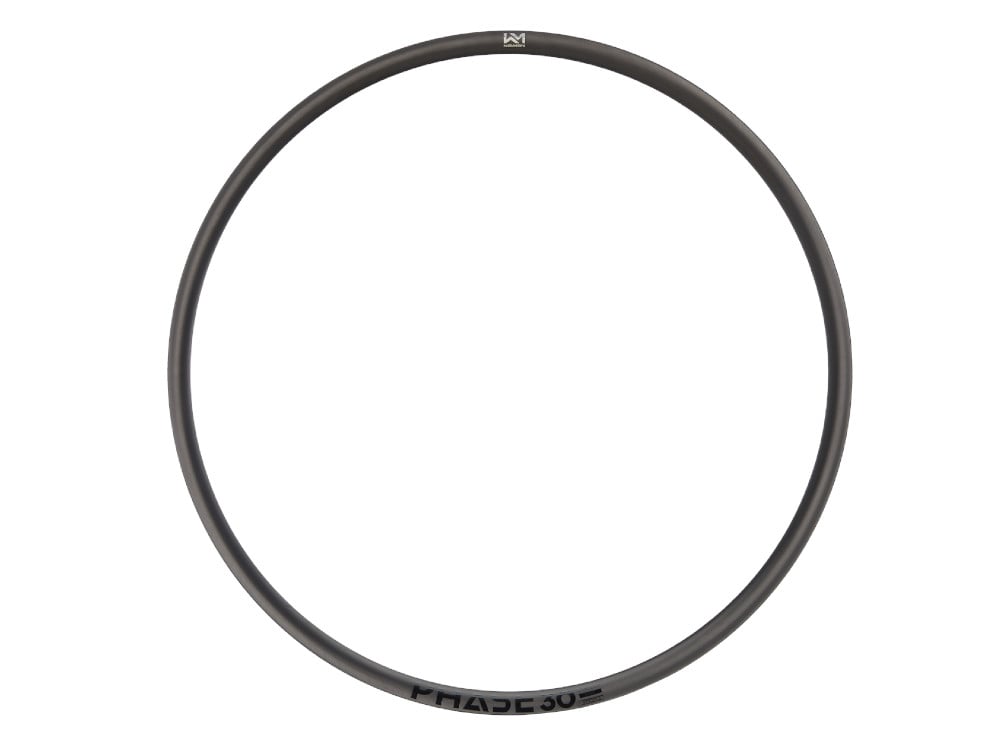

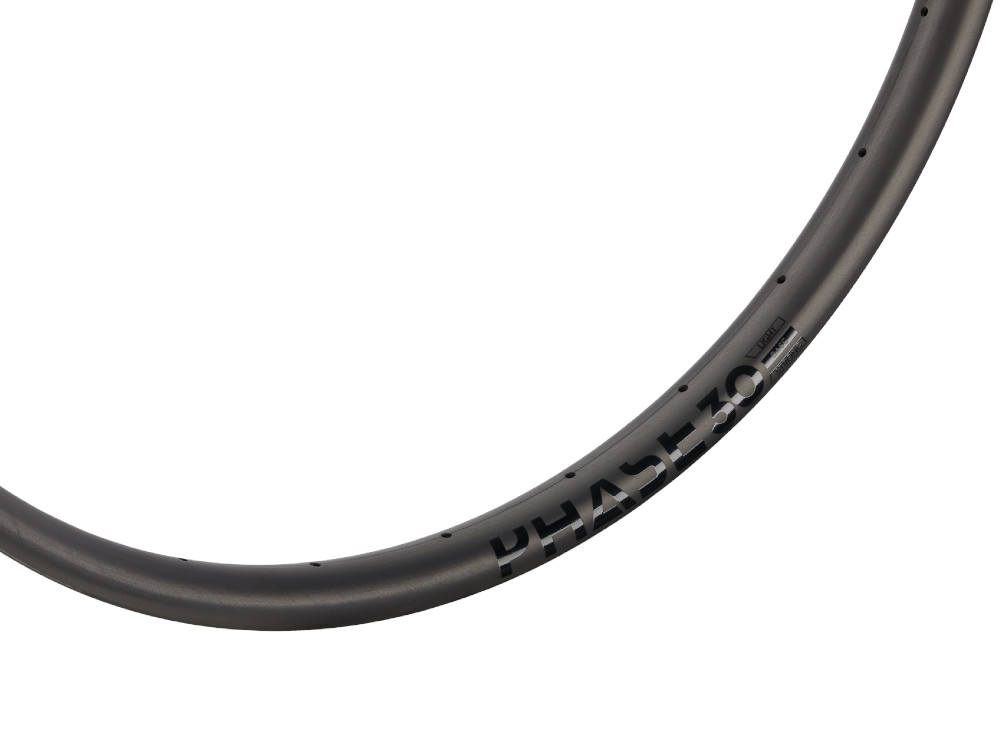

The Advanced rims, like all Newmen carbon rims, are made of high-end UD fibers and impress with their first-class mechanical properties and low weight. They are the ideal basis for a stable all-mountain and enduro wheelset.
The hookless construction makes them ideal for tubeless use. The significantly reinforced rim flange withstands possible punctures better and allows driving with little air pressure. To avoid weak spots, the spoke holes were drilled using a special process.
Due to the slightly outward-facing flanks, the shape of the tire is rounder, which results in significantly better cornering grip and increased safety.
Wheel construction at R2-Bike
Our wheels are completely assembled by hand by our wheel builders. During the entire construction, it is important that not only the concentricity is correct, but also that the spoke tension is as even as possible. The special care allows us to give a lifelong guarantee against broken spokes, as long as this has not been caused by violence!
You will also receive the following services for our wheels:
A universal impeller bag for all common sizes.
A spare spoke + nipple in all required spoke lengths in order to be able to repair the wheel at short notice even after accidents.
A free initial inspection of the wheel, in which the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant 100% discount on all labor costs and only charge the material!
Technical specifications:
intended use : Trail TR, All Mountain AM, Enduro EN
Wheel size: 29 "(ETRTO: 622 x 30 mm)
Rim type: clincher (clincher and folding tire)
Brake type: disc brake
Brake disc mount: 6-hole
Weights:
1697g (lightest variant: Boost + Boost, SL A. 30 rims, Sapim CX-Ray)
1781g (heaviest variant: Boost + Boost, SL A. 30 rims, Sapim Race)
Note:
Variations in weight are possible due to manufacturing fluctuations in all components. The information is usually determined without rim tape, valves and decals / rim stickers.
The specified delivery time refers to the usual duration for the assembly of the wheelset and does not reflect the availability of the individual parts.
Scope of delivery:
1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x construction certificate
2x hologram stickers
