Wheelset 29" AM EN | DT Swiss 240 EXP MTB 6-Hole Hubs | Duke Carbon Rims

Item number:
Product weight: 1412 g
Brands: r2-bike

from 1.497,50 €
MSRP: 1.807,48 €
You save 17,15%, that is 309,98 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

handmade - in about 4 - 6 weeks
Configure now

We can't deliver this item to your chosen country.

DT Swiss Front Hub J-Bend 6-Hole
DT Swiss Front Hub J-Bend 6-Hole
  • Brake disc mount: 6-hole
    Spoke type: J-Bend (curved)
    Storage: 2x industrial ball bearings
    Color: black with white-red decals
    Weight: 192g

    With the 110 millimeter wide SuperBOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing.

DT Swiss Rear Hub J-Bend 6-Hole
DT Swiss Rear Hub J-Bend 6-Hole
  • Brake disc mount: 6-hole
    Spoke type: J-Bend
    Storage: 4x industrial ball bearings
    Freewheel type: 2 tooth lock washers, 36 grids
    Freewheel compatibility: 12-speed Shimano Micro Spline
    Color: black with white-red decals
    Weight: 237g

    With the 157 millimeter wide SuperBOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing. In addition, the wider rear triangle allows the use of more voluminous tires.

Duke Rims Carbon All Mountain - Enduro
Duke Rims Carbon All Mountain - Enduro
  • Area of ??application: All Mountain AM, Enduro EN
    ETRTO: front 622x32,3 - rear 622x29,9 mm
    Inner width: front 32.3 mm - rear 29,9 mm
    Outside width: front 39 mm - rear 36 mm
    Rim height: front 24 mm - rear 22 mm
    Offset: front 3.0 mm - rear 3.0 mm
    Recommended tire width: front 2,3" - 3,0" (58 - 76 mm) - rear 2,1" - 2,8" (53 - 71 mm)
    maximum tire pressure: 2.2 bar maximum (2,2" Tire width)
    system weight: 130 kg (driver, bike, clothing and possibly luggage)
    Color / finish: black / UD silk matt
    Weight: front 441g - rear 507g

  • Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

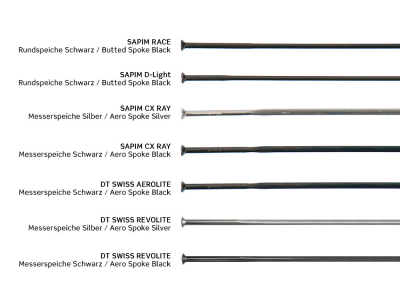

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!

Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details


Wheelset 29" AM EN | DT Swiss 240 EXP MTB 6-hole hubs | Duke carbon rims

intended use : All Mountain AM, Enduro EN

With this wheelset, racers can also really let it rip. The indestructible DT Swiss hubs and the excellently crafted Duke rims forgive the occasional driving mistake. The balanced selection of components guarantees you high reliability and a long service life.

Lighter, stiffer, more precise and easier to maintain - these are the strengths of the newly launched DT Swiss 240 hubs. These properties were achieved through Ratchet EXP technology. This means that the hubs not only require fewer components and therefore lower weight and less wear, but it also allows the bearing on the drive side to be placed significantly further out. The larger distance between the bearings results in greater hub rigidity, lower bearing load and therefore greater durability. The stiffness on the hub body serves to distribute the load on the spokes more evenly. Driving and braking forces are transferred even better from both spoke flanges to all spokes. One-sided load peaks are prevented, which protects the hub, spokes and rim. The super reliable toothed disc freewheel system ensures extremely direct and reliable power transmission with its large contact surface and 36 locking points.

Duke has managed to improve the rim compared to the SLS3 version. In doing so, they have once again pushed the seemingly technically possible limits. A 30 mm wide rim with a weight of only 371g is a direct challenge to the competition.
How did the French accomplish this? They took a closer look at the individual elements of the rim and looked for optimization options. In particular, a new resin was used. This not only made it possible to slim down, but also increased impact resistance at the same time. Similar to the SLS3 production process, reworking or painting is not necessary after production.
The rim flange is hookless and reinforced. This prevents damage in the event of possible punctures. In addition, the anti-burp technology prevents the tire from slipping or jumping off the rim and thus possible loss of air.
The rim has an asymmetrical rim profile, which allows for a more uniform angle of attack for the spokes. This optimization of the spoke angle brings with it a number of advantages. The spoke tension on both sides can be better adjusted, which improves the durability of the spokes and the entire wheel. The normally directional lateral stiffness is also adjusted so that the wheel becomes stiffer.
With the “6Ters” concept, Duke takes individual paths. The cross section of the rims is different on the front and rear wheels. At the front, the larger internal width allows for more grip and rigidity, while at the rear, particular attention was paid to impact resistance and comfort.

Wheel construction at R2-Bike

Our wheels are assembled entirely by hand by our wheel builders. During the entire construction, it is important to ensure that not only the concentricity is correct, but also that the spoke tension is as even as possible. This special care allows us to offer a lifetime guarantee against broken spokes, as long as they are not caused by violence.

The following services are also already included:

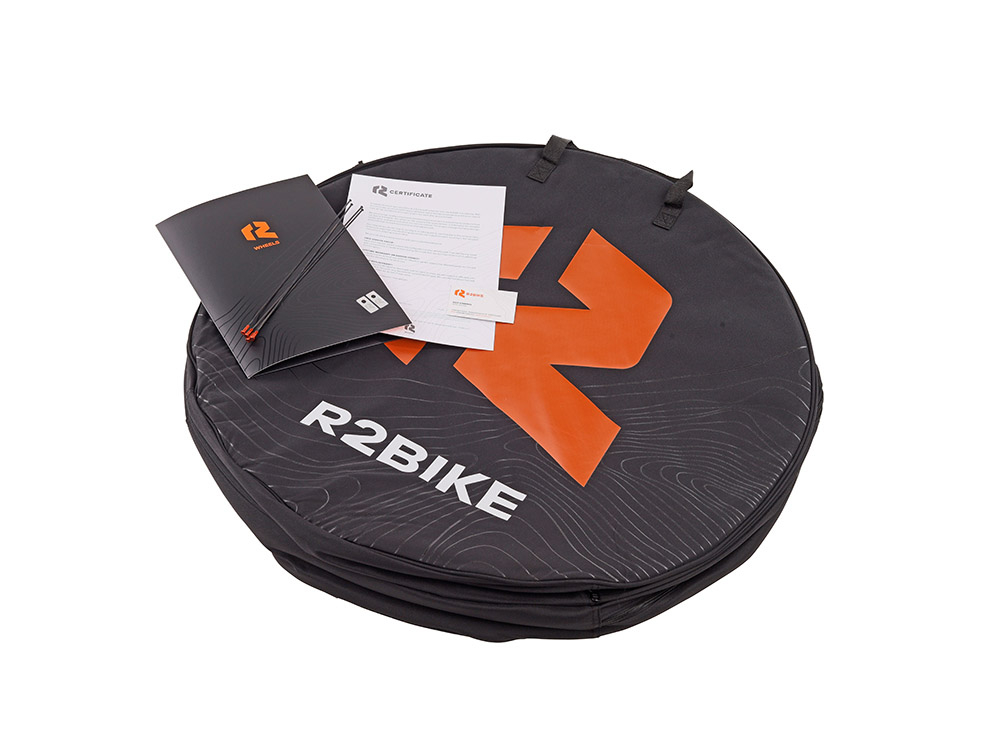

You get a universal wheel bag for all common sizes.
You will receive a replacement spoke with a nipple in all the required spoke lengths so that you can repair the wheel at short notice after an accident.
You will receive a free initial inspection of the wheel, where the resulting work is completely free of charge. Only shipping costs are charged.
You get a crash replacement promise: If your wheel is damaged due to force majeure, we will rebuild it once. We offer a 100% discount on all labor costs and only charge for the material.

Technical data:

intended use : All Mountain AM, Enduro EN
Wheel size: 29" (ETRTO: 622 x see detailed description)
Rim type: Clincher (clincher and folding tires)
Brake type: disc brake
Brake disc mount: 6-hole


1412g (lightest variant: 15x100 mm + 12x142 mm, Crazy Jack 6Ters, Sapim CX-Ray)
1823g (heaviest variant: SuperBoost + SuperBoost, Fury Jack 6ters, Sapim Race)

Due to manufacturing fluctuations in all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals/rim stickers.

The delivery time stated refers to the usual time it takes to build the wheelset and does not reflect the availability of the individual parts.

If you would like a special lacing on the rear wheel, e.g. for the Cannondale Ai rear triangle or for EVO6, please contact our service team.

Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x balance bike bag
4x replacement spokes including nipples
1x construction certificate
2x hologram stickers
