Wheelset 29" AM | DT Swiss 240 EXP MTB Straightpull Center Lock Hubs | Duke Carbon Rims

Item number:
Product weight: 1356 g
Brands: r2-bike

from 1.497,50 €
MSRP: 1.807,48 €
You save 17,15%, that is 309,98 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

handmade - in about 2 - 3 months
Configure now

We can't deliver this item to your chosen country.

DT Swiss Front Hub Straightpull Center Lock
DT Swiss Front Hub Straightpull Center Lock
  • Brake disc mount: Center Lock
    Spoke type: Straightpull (straight)
    Storage: 2x industrial ball bearings
    Color: black with white-red decals
    Weight: 110g

    With the 110 millimeter wide BOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing.

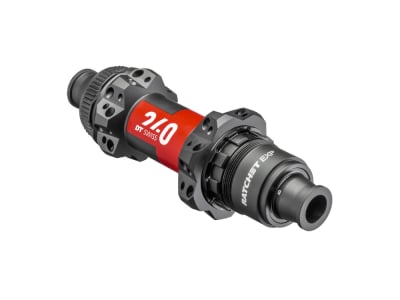

DT Swiss Rear Hub Straightpull Center Lock
DT Swiss Rear Hub Straightpull Center Lock
  • Brake disc mount: Center Lock
    Spoke type: Straightpull (straight)
    Storage: 4x industrial ball bearings
    Freewheel type: 2 tooth lock washers, 36 grids
    Freewheel compatibility: 12-speed Shimano Micro Spline
    Color: black with white-red decals
    Weight: 207g

    With the 148 millimeter wide BOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing.

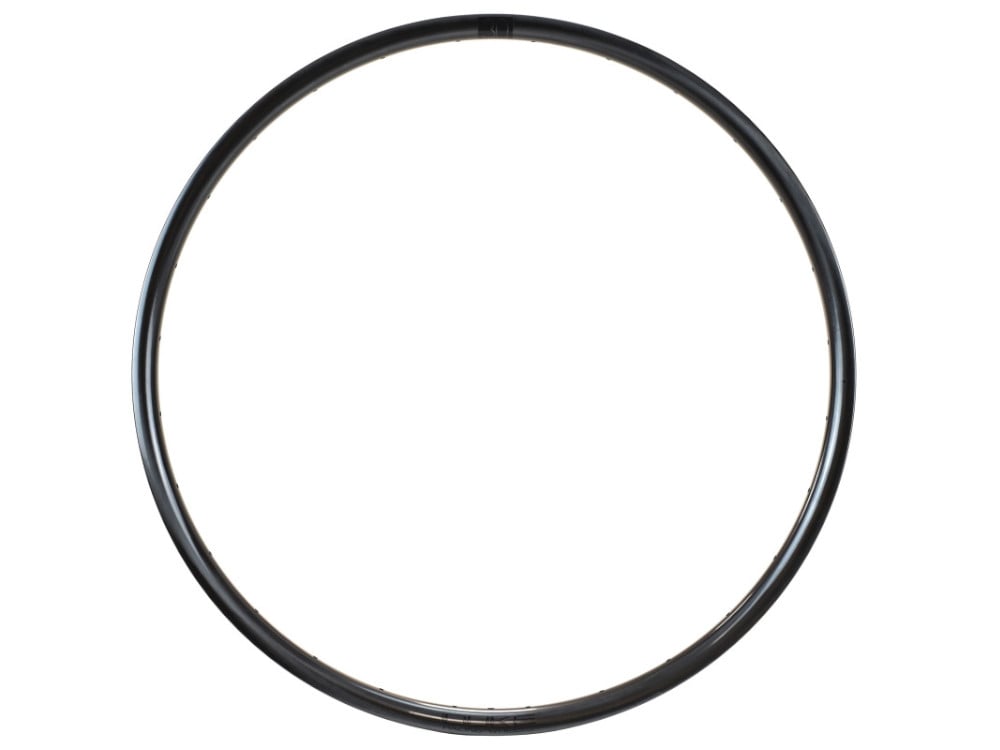

Duke Rims Carbon All Mountain
Duke Rims Carbon All Mountain
  • Area of ??application: All Mountain AM, Enduro EN
    ETRTO: front 622x32.5 - rear 622x30 mm
    Inner width: front 32.5 mm - rear 30 mm
    Outside width: front 39 mm - rear 36 mm
    Rim height: front 24 mm - rear 22 mm
    Offset: front 3.0 mm - rear 3.0 mm
    Recommended tire width: front 2,3" - 3,0" (58 - 76 mm) - rear 2,1" - 2,8" (53 - 71 mm)
    maximum tire pressure: 2.2 bar maximum (2,2" Tire width)
    system weight: 120 kg (driver, bike, clothing and possibly luggage)
    Color / finish: black / UD silk matt
    Weight: front 381g - rear 371g

  • Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!

Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details


Wheelset 29" AM | DT Swiss 240 EXP MTB Straightpull Center Lock hubs | Duke Carbon rims

intended use : All Mountain AM

With this wheel set, even racers can really let it rip. The indestructible DT Swiss hubs and the excellently processed Duke rims also forgive a driving mistake. The balanced selection of components guarantees you high reliability and a long service life.

Lighter, stiffer, more precise and easier to maintain - these are the strengths of the newly launched DT Swiss 240 hubs. These properties were achieved through the Ratchet EXP technology. With this, the hubs not only get by with fewer components and thus lower weight and less wear, it also allows the bearing on the drive side to be placed significantly further out. The larger distance between the bearings results in a higher rigidity of the hub, a lower bearing load and thus greater durability. The stiffness on the hub body serves to distribute the load more evenly on the spokes. Driving and braking forces are transmitted even better from both spoke flanges to all spokes. Unilateral peak loads are prevented, which protects the hub, spokes and rim. The super reliable toothed disc freewheel system with its large contact surface and 36 locking points ensures extremely direct and reliable power transmission.

Duke has managed to improve the rim compared to the SLS3 version. In doing so, they have once again pushed the apparently technically possible limits. A 30mm wide rim weighing just 371g is a direct challenge to the competition.
How did the French do this? They took a closer look at the individual elements of the rim and looked for optimization options. In particular, a new resin was used. This not only made it possible to slim down, but also to increase impact resistance at the same time. Similar to the SLS3 production process, post-processing or painting is not necessary here either.
The rim flange is hookless and reinforced. This avoids damage in the event of punctures. In addition, the anti-burp technology prevents the tire from slipping or jumping off the rim and thus possible air loss.
The rim has an asymmetrical rim profile, which allows a more even angle of the spokes. This optimization of the spoke angle brings with it a multitude of advantages. The spoke tension on both sides can be better adjusted to each other, which is beneficial to the durability of the spokes and the entire wheel. The lateral stiffness, which is normally directional, is also adjusted so that the impeller itself becomes stiffer.
With the "6Ters" concept, Duke goes its own way. The cross-section of the rims is different on the front and rear wheels. At the front, the larger inner width allows for more grip and rigidity, while at the rear, emphasis was placed on impact resistance and comfort.

Impeller construction at R2-Bike

Our wheels are assembled entirely by hand by our wheel builders. During the entire construction, it is important that not only the concentricity is right, but also that the spoke tension is as even as possible. This special care allows us to give a lifetime guarantee against broken spokes, as long as this is not caused by violence.

Furthermore, the following services are already included:

You get a universal wheel bag for all common sizes.
You get a replacement spoke with nipples in all required spoke lengths, so that you can repair the wheel at short notice after an accident.
You get a free initial inspection of the impeller, with the resulting work being completely free. Only shipping costs are charged.
You get a crash replacement promise: If your wheel is damaged due to force majeure, we will rebuild it once. We grant a 100% discount on all labor costs and only charge for the material.

Technical specifications:

intended use : All Mountain AM
Wheel size: 29" (ETRTO: 622 x see detailed description)
Rim Type: Clincher (clincher and folding)
Brake type: disc brake
Brake disc mount: Center Lock


1356g (lightest variant: 15x100 mm + 12x142 mm, Crazy Jack 6Ters, Sapim CX-Ray)
1460g (heaviest variant: Boost + Boost, Crazy Jack 6Ters, Sapim Race)

Due to manufacturing variations in all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals/rim stickers.

The specified delivery time refers to the usual time it takes to assemble the wheelset and does not reflect the availability of the individual parts.

If you would like special spokes on the rear wheel, e.g. for the Cannondale Ai rear triangle or for EVO6, please contact our service team.

Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
2x hologram stickers
