Wheelset 28" RR | DT Swiss 240 EXP Road Straightpull Hubs | Duke Aluminum Rims

Item number:
Product weight: 1374 g
Brands: r2-bike

from 797,50 €
MSRP: 958,12 €
You save 16,76%, that is 160,62 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

handmade - in about 2 - 3 months
Configure now

We can't deliver this item to your chosen country.

DT Swiss Front Hub Road Straightpull
DT Swiss Front Hub Road Straightpull
  • Brake disc mount: without, only for rim brake
    Spoke type: straight pull (straight)
    Storage: 2x industrial deep groove ball bearings
    Color: black with red-weißen decals
    Weight: 102g

DT Swiss Rear Hub Straightpull
DT Swiss Rear Hub Straightpull
  • Brake disc mount: without, only for rim brake
    Spoke type: Straightpull (straight)
    Storage: 2x ceramic ball bearings in the hub, 2x stainless steel ball bearings in the rotor
    Freewheel type: 2 tooth lock washers, 36 grids
    Freewheel compatibility: 11-, 12-speed SRAM XDR, SRAM XD with spacer
    Color: Black with red-white decals
    Weight: 188g

Duke Rims Aluminum Road
Duke Rims Aluminum Road
  • Application: Road Bike RR
    ETRTO: 622x19.5
    Inner width: 19.5 mm
    External width: 23 mm
    Rim height: 30 mm
    Offset: front no - rear 2.0 mm asymmetrical
    Recommended tire width: 28 - 62 mm
    maximum tire pressure: 6,5 bar
    maximum system weight: 110 kg (driver, bike, clothing and possibly luggage)
    Color / finish: black / matt
    Weight: front 480g - rear 480g

    The asymmetrical shape on the rear wheel enables a more even spoke tension, which further increases the rigidity of the entire wheel.


    Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!

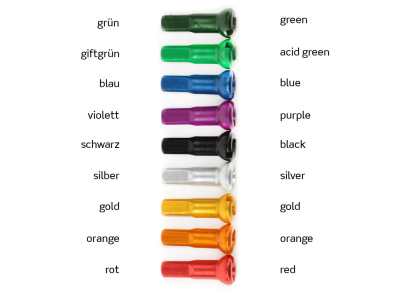

Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details


Wheelset 28 "RR | DT Swiss 240 EXP Road Straightpull hubs | Duke aluminum rims

intended use : racing bike RR

We also have wheels in our range for traditionalists with proven rim brakes. The combination of Duke aluminum rims and the indestructible DT Swiss hubs should always be on the shortlist. The balanced selection of components guarantees you a high level of reliability and a long service life.

Lighter, stiffer, more precise and easier to maintain - these are the strengths of the newly launched DT Swiss 240 hubs. These properties were achieved through the Ratchet EXP technology. With this, not only do the hubs get by with fewer components and the associated lower weight and less wear, it also allows the bearing to be positioned significantly further out on the drive side. The greater distance between the bearings results in a higher stiffness of the hub, a lower bearing load and thus a higher durability. The stiffness of the hub body serves to distribute the load on the spokes more evenly. Driving and braking forces are transmitted even better from both spoke flanges to all spokes. One-sided load peaks are prevented, which protects the hub, spokes and rim. The super reliable toothed pulley freewheel system with its large contact area and 36 locking points ensures extremely direct and reliable power transmission.

The excellently processed Duke Road Runner rims are real multi-purpose rims. They are light enough to climb any mountain, durable to enjoy your wheel for many thousands of kilometers and very stiff so that every turn of the crank is converted directly into propulsion. The rims are tubeless ready and have a large inner width so that wider tires can also be safely mounted.

Wheel construction at R2-Bike

Our wheels are completely assembled by hand by our wheel builders. During the entire construction process, it is important that not only the concentricity is correct, but also that the spoke tension is as even as possible. The special care allows us to give a lifelong guarantee against broken spokes, as long as this was not caused by force!

You will also receive the following services for our balance bikes:

A universal impeller bag for all common sizes.
A spare spoke + nipple in all required spoke lengths to be able to repair the wheel at short notice even after an accident.
A free initial inspection of the impeller, during which the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant a 100% discount on all labor costs and only charge the material!

Technical specifications:

intended use : racing bike RR
Impeller size: 28 "(ETRTO: 622 x 19.5)
Rim type: Clincher (wire and folding tires)
Brake type: rim brake
Brake disc mount: without


1374g (lightest version: quick release + quick release, SRAM XDR, Road Runner 23, 20/24, Sapim CX-Ray)
1538g (heaviest variant: quick release + quick release, Shimano / SRAM Road, Road Runner 30, 20/24, Sapim Race)

Due to manufacturing fluctuations in all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals / rim stickers.

The specified delivery time refers to the usual duration for the assembly of the wheelset and does not reflect the availability of the individual parts.

Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x construction certificate
2x hologram sticker

matching products:
CONTINENTAL Tire Grand Prix 28 | 700 x 28C BlackChili...
available from stock

CONTINENTAL Tire Grand Prix 28" | 700 x 28C BlackChili PolyX-Breaker

29,50 € *
  • MSRP: 44,95 €
  • Item no.: 24382
  • Weight: 275g
SCHWALBE Tire Pro ONE 28 | 700 x 28C ADDIX Race EVO... SCHWALBE Tire Pro ONE 28 | 700 x 28C ADDIX Race EVO...
available from stock

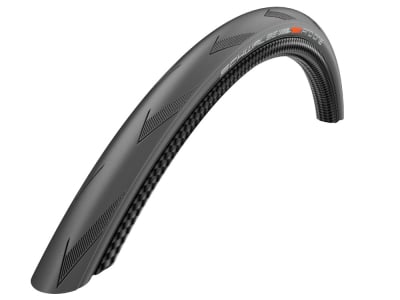

SCHWALBE Tire Pro ONE 28 | 700 x 28C ADDIX Race EVO LiteSkin V-Guard TLE
