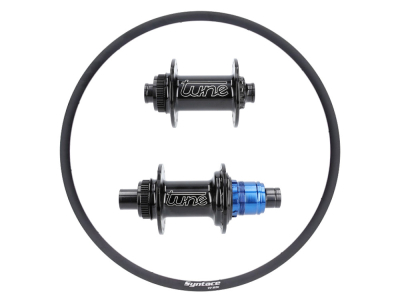

Wheelset 28" Disc RR | Tune Road Center Lock Hubs | Syntace Aluminum Rims

Item number:
Product weight: 1453 g
Brands: r2-bike

from 947,50 €
MSRP: 1.045,44 €
You save 9,37%, that is 97,94 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

handmade - in about 2 - 3 months
Configure now

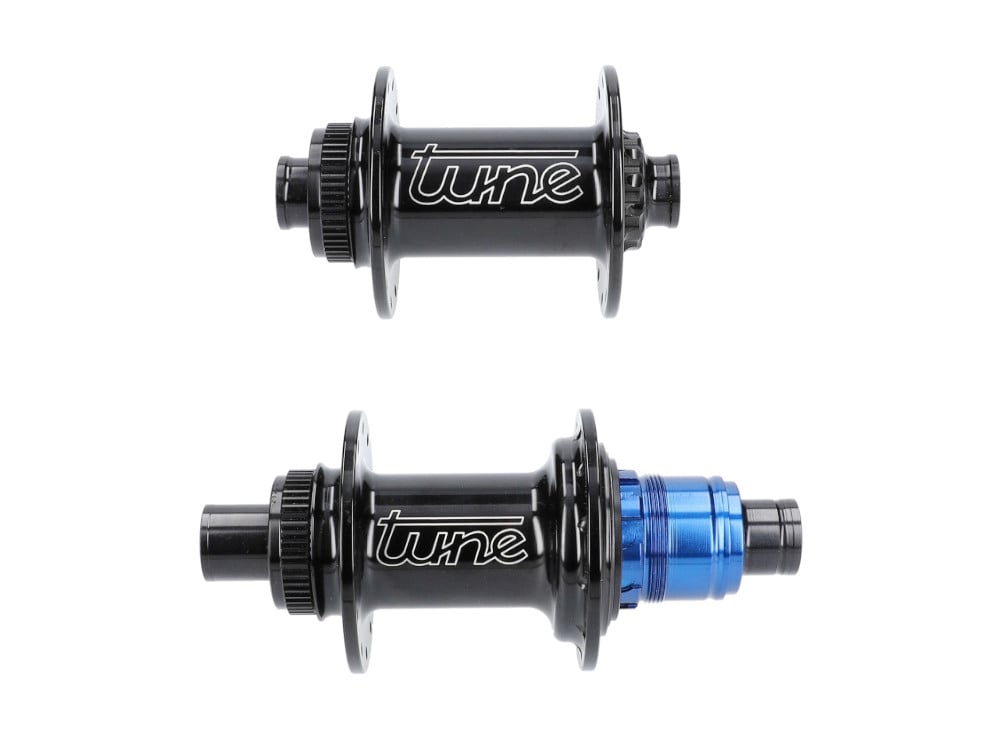

Tune Front Hub J-Bend Center Lock
Tune Front Hub J-Bend Center Lock
  • Brake disc mount: Center Lock
    Spoke type: J-Bend (curved)
    Storage: 2x ceramic industrial ball bearings
    Color: black, silver, red, blue, gold, poison green or orange
    Weight: 112g

    The built-in ceramic bearings reduce the frictional resistance of the hub and thus ensure a silky smooth running.

Tune Rear Hub J-Bend Center Lock
Tune Rear Hub J-Bend Center Lock
  • Brake disc mount: Center Lock
    Spoke type: J-Bend (curved)
    Bearing: 3x industrial ball bearings made of stainless steel, 1x ceramic ball bearing on the left
    Freewheel type: 3 pawls, 27 grids
    Freewheel compatibility: 10-, 11-, 12-speed Campagnolo
    Color: black, red, blue, gold, poison green, orange or silver
    Weight: 211g

    The built-in ceramic ball bearing reduces the frictional resistance of the hub and thus ensures a silky smooth running.

Colour Tune Hubs
Colour Tune Hubs
Syntace Rims Aluminum Road
Syntace Rims Aluminum Road
  • Area of ??application: Road RR, Gravel GRV
    ETRTO: 622x21
    Inside width: 21 mm
    Outside width: 25 mm
    Rim height: 23 mm
    Offset: no
    recommended tire width: 25 - 40 mm
    maximum tire pressure: N / A
    maximum system weight: 110 kg (driver, bike, clothing and possibly luggage)
    Color / finish: black / matt
    Weight: 434g


    Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

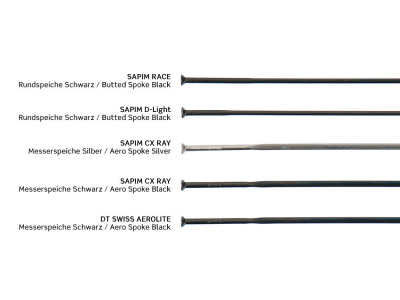

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details


Wheelset 28 "Disc RR | Tune Road Center Lock hubs | Syntace aluminum rims

intended use : Racing bike RR, Gravel GRV

Racing cyclists are looking for the best compromise between weight, aerodynamics and stiffness. The combination of Syntace aluminum rims and light Tune hubs should therefore always be on the shortlist. The balanced selection of components guarantees you a high level of reliability and a long service life.

The Tune hubs are classics among lightweight disc brakes. Originally developed for the MTB sector, they are now among the best options for light road, cyclo-cross and gravel wheels. They can not only be used to build lightweight and durable wheels, thanks to their 17 millimeter axle system they can be used extremely flexibly and can be converted to various axle type with minimal effort. The hub gets its high stability and strength from the manufacture of aerospace aluminum. When freewheeling the rear hub, Tune relies on the tried and tested system with 3 pawls that engage in a titanium ring with 27 teeth.

Based on the tried and tested aluminum rims of the W series for mountain bikes, Syntace also developed rims for the growing bicycle category of gravel bikes and racing bikes with disc brakes. Due to the generous inside width, it offers 25 - 40 millimeter wide tires, even with very low air pressures, very good support. The special inner profile of the rim ensures easy tubeless assembly without a compressor. The hooks on the rim horns guarantee a secure fit of tubeless tires even in extreme situations. In contrast to cheaper rims, the rim joint of Syntace rims is welded. This design makes the rim stiffer and leads to better concentricity in the spoked wheel. Due to the small gram, the rotating masses remain very low, which has a positive effect on the acceleration.

Wheel construction at R2-Bike

Our wheels are completely assembled by hand by our wheel builders. During the entire construction process, it is important that not only the concentricity is correct, but also that the spoke tension is as even as possible. The special care allows us to give a lifelong guarantee against broken spokes, as long as this was not caused by force!

You will also receive the following services for our balance bikes:

A universal impeller bag for all common sizes.
A spare spoke + nipple in all spoke lengths required to be able to repair the wheel at short notice even after an accident.
A free initial inspection of the impeller, during which the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant a 100% discount on all labor costs and only charge the material!

Technical specifications:

intended use : Racing bike RR, Gravel GRV
Impeller size: 28 "(ETRTO: 622 x 21)
Rim type: Clincher (wire and folding tires)
Brake type: disc brake
Brake disc mount: Center Lock


1453g (lightest variant: 12x100 mm ceramic + 12x142 mm ceramic, W21i, Sapim CX-Ray)
1540g (heaviest variant: 12x100 mm + 12x142 mm, W21i, Sapim Race)

Due to manufacturing fluctuations for all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals / rim stickers.

The specified delivery time refers to the usual duration for the assembly of the wheelset and does not reflect the availability of the individual parts.

Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x construction certificate
2x hologram sticker
