Wheelset 28" Disc RR | Newmen Road Straightpull Center Lock Hubs | Duke Carbon Rims

Item number:
Product weight: 1145 g
Brands: r2-bike

from 1.377,50 €
MSRP: 1.609,44 €
You save 14,41%, that is 231,94 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

handmade - in about 2 - 3 months
Configure now

We can't deliver this item to your chosen country.

Newmen Front Hub Straightpull Center Lock
Newmen Front Hub Straightpull Center Lock
  • Brake disc holder: Center Lock
    Spoke type: Straightpull (straight)
    Storage: 2x industrial deep groove ball bearings
    Color: black with grey decals
    Weigth: 96g

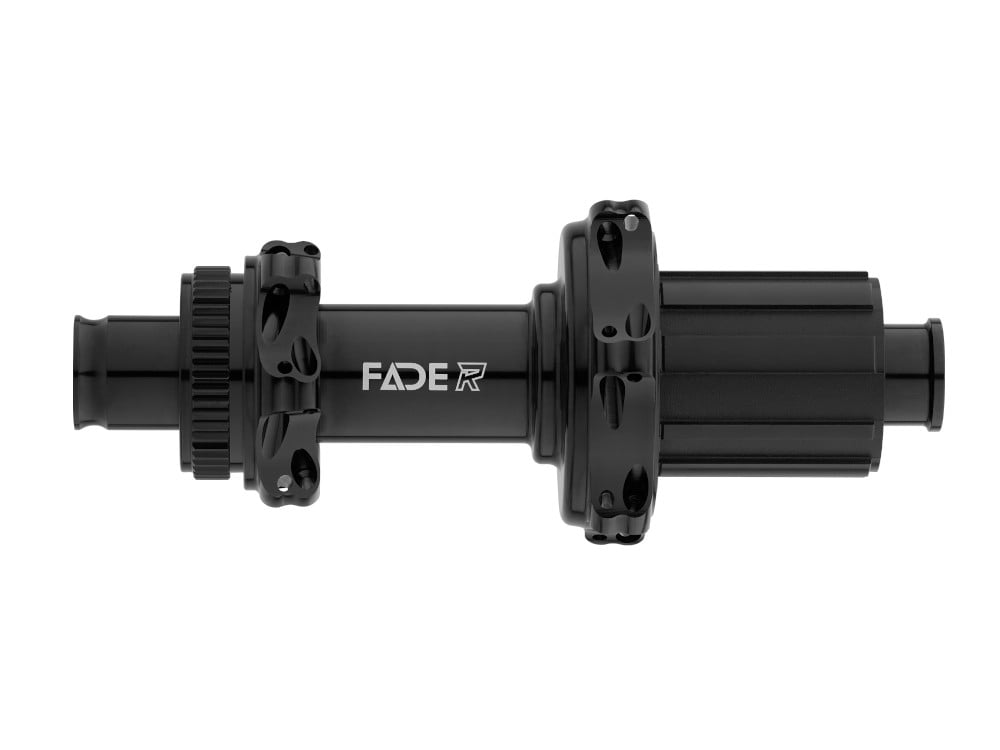

Newmen Rear Hub Straightpull Center Lock
Newmen Rear Hub Straightpull Center Lock
  • Brake disc holder: Center Lock
    Spoke type: Straightpull (straight)
    Storage: 4x industrial deep groove ball bearings
    Freewheel type: 3 tooth lock washers, 33 grids
    Freewheel compatibility: 12-speed SRAM XDR-Road, SRAM XD cassettes only with 1.85 mm spacer
    Color: black with gray decals
    Weight: 192g

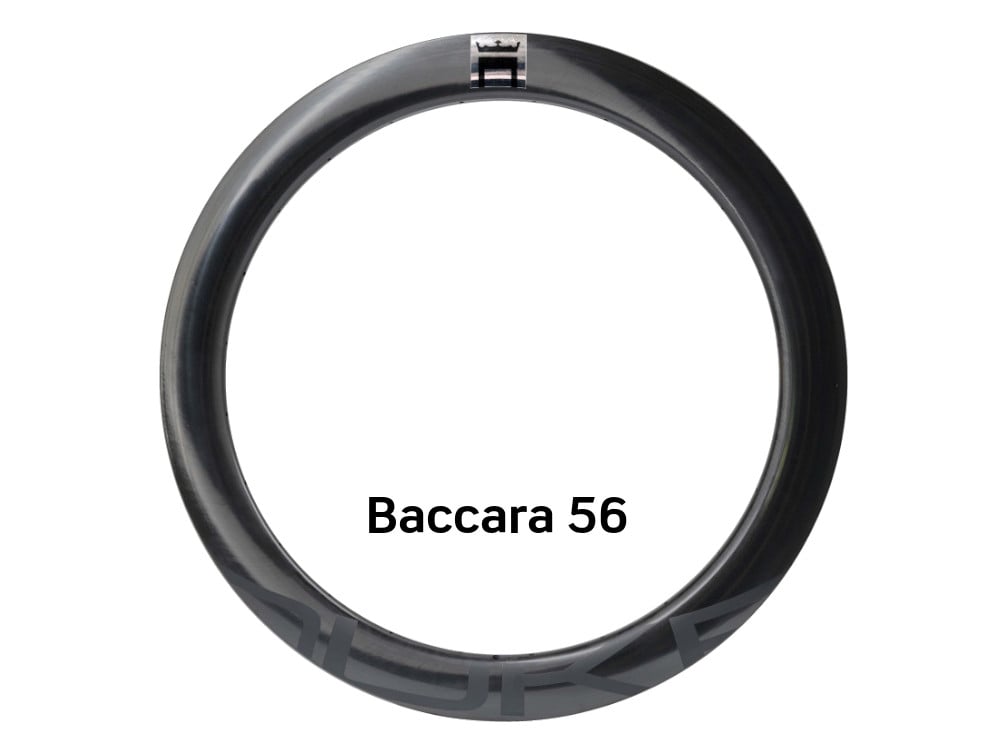

Duke Felgen Carbon Road
Duke Felgen Carbon Road
  • Area of ??use: road bike, gravel
    ETRTO: 622x21
    Inner width: 21 mm
    Outer Width: 27.6 mm
    Rim Height: 48 mm
    Offset: 2.0 mm (asymmetric)
    recommended tire width: 25 - 53 mm
    maximum tire pressure: 7.5 bar (28 mm)
    maximum system weight: 95 kg (rider, bike, clothing and possibly luggage)
    Color/Finish: black / UD satin finish
    Weight: 395g (manufacturer information)

    The asymmetrical shape enables more even spoke tension, which further increases the rigidity of the entire Wheel.

  • Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!

Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details


Wheelset 28" Disc RR | Newmen Road Straightpull Center Lock hubs | Duke Carbon rims

intended use : Road bike RR, Gravel GRV

Road cyclists are looking for the best compromise between weight, aerodynamics and stiffness. The combination of Duke carbon rims and the indestructible Newmen hubs should therefore always be on the shortlist. The balanced selection of components guarantees you high reliability and a long service life.

The Newmen FADE hubs will also find many fans again. Again, you don't need to worry about adjusting the axial bearing play. The durable, double-sealed industrial bearings are stress-free and precisely pressed in at the factory. This further development has gained a high degree of user-friendliness. You can spend the time saved better on your favorite trail.
The design of the freewheel is completely different from the previous model. The goal was low noise. The result was the FADE ratchet system. 3 pawls engage in a new type of tooth profile. To increase durability, the diameter was enlarged and the individual pawls were short and wide. Thus, the resulting forces are distributed over a larger area.
Despite the relatively low weight, safety was not compromised. Better to use a little more material in neuralgic areas, like. E.g. at the transition between the brake disc and spoke holder than risking a defect.

The carbon rims from Duke from France stand for excellent workmanship and low weight. Thanks to the SLS2 production technology developed by Duke, the latter could be reduced by around 10% compared to other rims, while at the same time increasing durability and stability. The use of high-modulus carbon fibers also improves the inherent damping, which benefits increased driving comfort. The modified structure also enables the unrestricted use of modern tubeless tires.

Please note the maximum permissible system weight in the rim's selection menu under "Show description".

Impeller construction at R2-Bike

Our wheels are assembled entirely by hand by our wheel builders. During the entire construction, it is important that not only the concentricity is right, but also that the spoke tension is as even as possible. This special care allows us to give a lifetime guarantee against broken spokes, as long as this is not caused by violence.

Furthermore, the following services are already included:

You get a universal wheel bag for all common sizes.
You get a replacement spoke with nipples in all required spoke lengths, so that you can repair the wheel at short notice after an accident.
You get a free initial inspection of the impeller, with the resulting work being completely free. Only shipping costs are charged.
You get a crash replacement promise: If your wheel is damaged due to force majeure, we will rebuild it once. We grant a 100% discount on all labor costs and only charge for the material.

Technical specifications:

intended use : Road bike RR, Gravel GRV, time trial
Wheel size: 28" (ETRTO: 622 x see detailed description)
Rim Type: Clincher (clincher and folding)
Brake type: disc brake
Brake disc mount: Center Lock


1145g (lightest variant: 12x100 mm + 12x142 mm, Baccara 36C Ultra, 24 holes, Sapim CX-Ray)
1802g (heaviest variant: 12x100 mm + 12x142 mm, Baccara 78C, 28 holes, Sapim Race)

A notice:
Due to manufacturing variations in all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals/rim stickers.

The specified delivery time refers to the usual time it takes to assemble the wheelset and does not reflect the availability of the individual parts.

Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
2x hologram stickers
