Wheelset 28" Disc RR | DT Swiss 240 EXP Road Straightpull Center Lock Hubs | DT Swiss Aluminium Rims

Item number:
46575
Product weight: 1377 g
Brands: r2-bike

from 647,50 €
MSRP: 781,04 €
You save 17,1%, that is 133,54 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

Availability:
handmade - in about 2 - 3 months
Configure now

We aren't allowed to deliver this item to the United States.

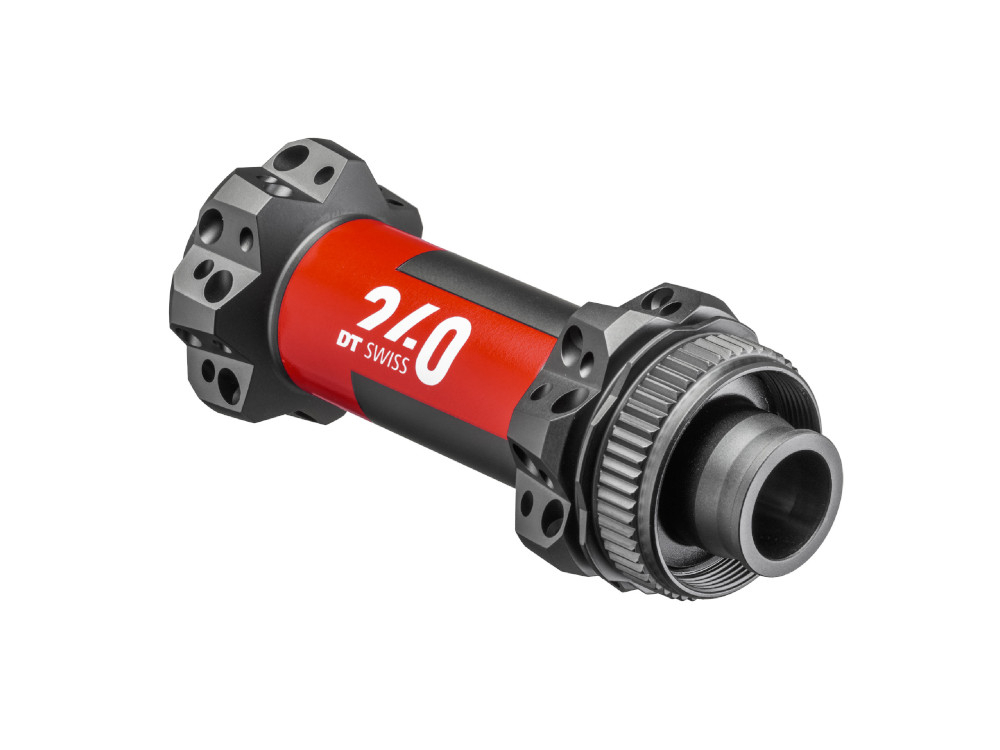

DT Swiss Front Hub Road Straightpull Center Lock
DT Swiss Front Hub Road Straightpull Center Lock
  • Brake disc mount: Center Lock
    Spoke type: Straightpull (straight)
    Storage: 2x industrial bearings
    Color: Black with red decals
    Weight: 104g

DT Swiss Rear Hub Straightpull Center Lock
DT Swiss Rear Hub Straightpull Center Lock
  • Brake disc mount: Center Lock
    Spoke type: Straightpull (straight)
    Storage: 2x industrial ball bearings
    Freewheel type: 2 tooth lock washers, 36 grids
    Freewheel compatibility: 12-speed SRAM XDR, SRAM XD with spacer
    Color: black with red decals
    Weight: 191g

DT Swiss Rims Road Disc
DT Swiss Rims Road Disc
  • Area of ??application: Road RR
    ETRTO: 622x20
    Inner width: 20 mm
    Outside width: 24 mm
    Rim height: 21 mm
    Offset: yes
    recommended tire width: 25 - 64 mm (ideally 28 - 34 mm)
    maximum tire pressure: 8.5 bar
    maximum system weight: 120 kg (driver, bike, clothing and possibly luggage)
    Color / finish: black matt
    Weight: 430g


    The asymmetrical design ensures a more even spoke tension when building the wheel and improves the durability of the Wheel.

Spokes
Spokes
  •

    Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!

Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details

Description

Wheelset 28 "Disc RR | DT Swiss 240 EXP Road Straightpull Center Lock hubs | DT Swiss aluminum rims

intended use : road bike RR, Gravel GRV

Road cyclists are always looking for the best compromise between weight, aerodynamics and rigidity. The combination of DT Swiss aluminum rims and indestructible DT Swiss hubs should therefore always be shortlisted. The balanced selection of components guarantees high reliability and a long service life.

Hubs
Lighter, stiffer, more precise and easier to maintain - these are the strengths of the newly launched DT Swiss 240 hubs. These properties were achieved through the Ratchet EXP technology. With this, the hubs not only manage with fewer components and the associated lower weight and less wear, it also allows the bearing to be placed significantly further out on the drive side. The larger distance between the bearings results in a higher stiffness of the hub, a lower bearing load and thus a higher durability. The rigidity on the hub body serves to distribute the load more evenly on the spokes. Drive and braking forces are transmitted even better from both spoke flanges to all spokes. One-sided load peaks are prevented, which protects the hub, spokes and rim. The super reliable tooth lock washer freewheel system with its large contact surface and 36 locking points ensures extremely direct and reliable power transmission.

rims
DT Swiss has stood for innovative products of the highest quality for years. Starting as a manufacturer of high quality spokes, the company has continuously expanded its product range. The Swiss have also had rims in their range since 2004, which they are constantly improving through the feedback of professional cyclists and taking into account new developments in the material and manufacturing sector. Today DT Swiss rims are among the most driven on the market.
Thanks to extensive FEM analyzes, the aluminum rims only contain as much material as is absolutely necessary at every point. They are connected by the SBWT® welding process. The rim is stabilized with a block during welding and then CNC machined to guarantee a seamless transition.


Wheel construction at R2-Bike

Our wheels are completely assembled by hand by our wheel builders. During the entire construction, it is important that not only the concentricity is correct, but also that the spoke tension is as even as possible. The special care allows us to give a lifelong guarantee against broken spokes, as long as this has not been caused by violence!

You will also receive the following services for our wheels:

A universal impeller bag for all common sizes.
A spare spoke + nipple in all required spoke lengths in order to be able to repair the wheel at short notice even after accidents.
A free initial inspection of the wheel, in which the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant 100% discount on all labor costs and only charge the material!


Technical specifications:

intended use : road bike RR, Gravel GRV
Wheel size: 28 "(ETRTO: 622 x see detailed description)
Rim type: clincher (clincher and folding tire)
Brake type: disc brake
Brake disc mount: Center Lock

Weights:

1377g (lightest variant: 12x100 mm + 12x142 mm SRAM XDR, RR 411 DB, Sapim CX-Ray)
1679g (heaviest version: 12x100 mm + 12x142 mm, Shimano / SRAM Road, RR 521 DB, Sapim Race)

Note:
Due to production fluctuations in all components, weight deviations are possible. The information is usually determined without rim tape, valves and decals / rim stickers.

The specified delivery time refers to the usual duration for the assembly of the wheelset and does not reflect the availability of the individual parts.


Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x construction certificate
2x hologram stickers
