Wheelset 28" Disc RR | Carbon-Ti Road Straightpull Center Lock Hubs | DT Swiss Aluminium Rims

Item number:
46566
Product weight: 1351 g
Brands: r2-bike

from 797,50 €
MSRP: 1.002,24 €
You save 20,43%, that is 204,74 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

Availability:
handmade - in about 2 - 3 months
Configure now

We aren't allowed to deliver this item to the United States.

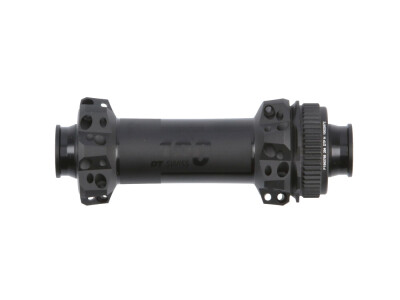

Carbon-Ti Front Hub Straightpull Center Lock
Carbon-Ti Front Hub Straightpull Center Lock
  • Brake disc holder: Center Lock
    Spoke type: Straightpull (straight)
    Storage: 2x industrial ball bearings
    Color: red, gold, blue, silver, black, green, poison green, silver polished or black matt
    Weight: 91g
Carbon-Ti Rear Hub Straightpull Center Lock
Carbon-Ti Rear Hub Straightpull Center Lock
  • Brake disc mount: Center Lock
    Spoke type: Straightpull (straight)
    Storage: 4x industrial deep groove ball bearings
    Freewheel type: 4 pawls, 56 grids
    Freewheel compatibility: 10-, 11-, 12-speed Campagnolo
    Color: red, gold, blue, silver, black, green, poison green, silver polished or black matt
    Weight: 186g
Color Carbon-Ti Hubs
Color Carbon-Ti Hubs
DT Swiss Rims Road Disc
DT Swiss Rims Road Disc
  • Area of ??application: Road RR
    ETRTO: 622x20
    Inner width: 20 mm
    Outside width: 24 mm
    Rim height: 21 mm
    Offset: yes
    recommended tire width: 25 - 64 mm (ideally 28 - 34 mm)
    maximum tire pressure: 8.5 bar
    maximum system weight: 120 kg (driver, bike, clothing and possibly luggage)
    Color / finish: black matt
    Weight: 430g


    The asymmetrical design ensures a more even spoke tension when building the wheel and improves the durability of the Wheel.

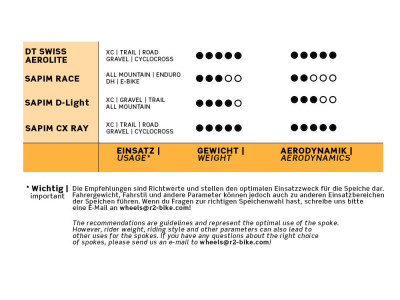

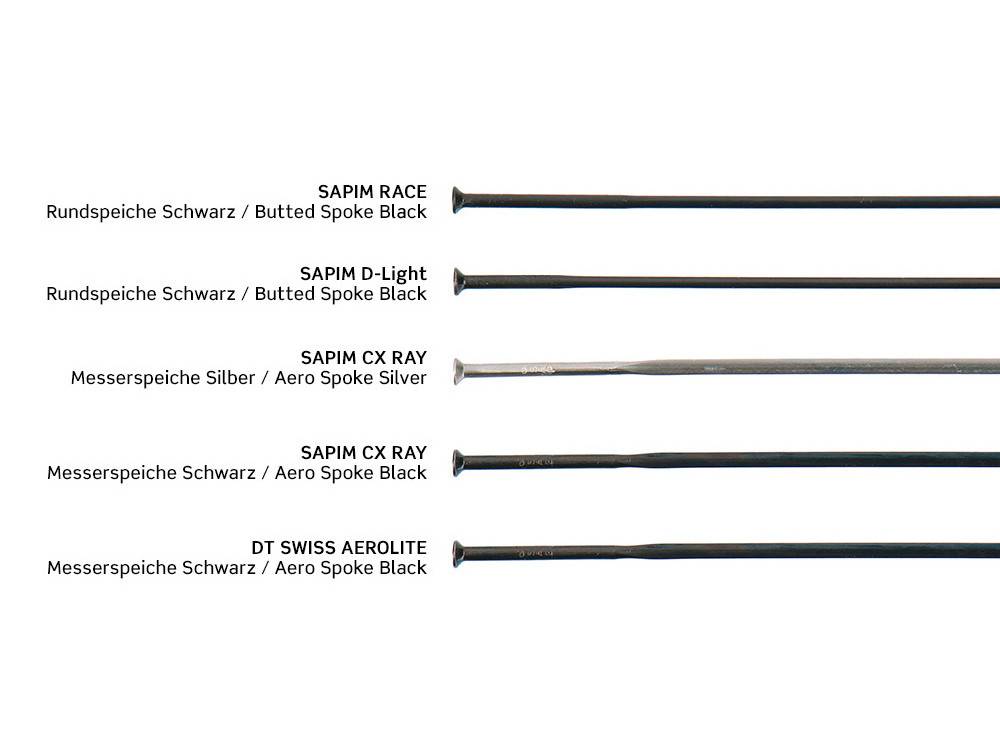

Spokes
Spokes
  •

    Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!

Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details

Description

Wheelset 28 "Disc RR | Carbon-Ti Road Straightpull Center Lock hubs | DT Swiss aluminum rims

intended use : Racing bike RR, Gravel GRV

Racing cyclists are looking for the best compromise between weight, aerodynamics and stiffness. The combination of DT Swiss aluminum rims and carbon-Ti hubs should therefore always be on the shortlist. The balanced selection of components guarantees you a high level of reliability and a long service life.

Hubs
The bodies of the X-Hub SP hubs are elaborately CNC-milled and rotate around a multi-butted aluminum axis. With a diameter of 17 mm, this brings a good degree of rigidity to the hub. High-quality, double-sealed ball bearings are installed, which ensure a permanently silky smooth run. The axis play can easily be adjusted by hand from the outside. The new pre-load adjustment ring is now easier to operate.
The freewheel on the rear hub engages with four pawls, each with three teeth, in a 56-fold titanium tooth ring, in order to be able to withstand even performance-oriented riders.
The main advantages of the Straightpull hubs, in addition to the more modern design, are non-contact spokes that do not cause any unpleasant noises and spoke heads that cannot work into the spoke flange.

rims
DT Swiss has stood for innovative products of the highest quality for years. Starting out as a manufacturer of high-quality spokes, the company continuously expanded its product range. Since 2004, the Swiss have also had rims in their range, which they are constantly improving through feedback from professional cyclists and taking into account new developments in materials and manufacturing. Today DT Swiss rims are among the most driven on the market.
Thanks to extensive FEM analyzes, the aluminum rims only contain as much material as is absolutely necessary at each point. They are connected by the SBWT® welding process. The rim is stabilized with a block during welding and then CNC machined to guarantee a seamless transition.


Wheel construction at R2-Bike

Our wheels are completely assembled by hand by our wheel builders. During the entire construction process, it is important that not only the concentricity is correct, but also that the spoke tension is as even as possible. The special care allows us to give a lifelong guarantee against broken spokes, as long as this was not caused by force!

You will also receive the following services for our balance bikes:

A universal impeller bag for all common sizes.
A spare spoke + nipple in all spoke lengths required to be able to repair the wheel at short notice even after an accident.
A free initial inspection of the impeller, during which the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant a 100% discount on all labor costs and only charge the material!


Technical specifications:

intended use : Racing bike RR, Gravel GRV
Impeller size: 28 "(ETRTO: 622 x see detailed description)
Rim type: Clincher (wire and folding tires)
Brake type: disc brake
Brake disc mount: Center Lock

Weights:

1351g (lightest variant: 12x100 mm + 12x142 mm, RR 411 DB, Sapim CX-Ray)
1643g (heaviest variant: 12x100 mm + 12x142 mm, RR 521 DB, Sapim Race)

Note:
Due to manufacturing fluctuations for all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals / rim stickers.

The specified delivery time refers to the usual duration for the assembly of the wheelset and does not reflect the availability of the individual parts.


Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x construction certificate
2x hologram sticker
