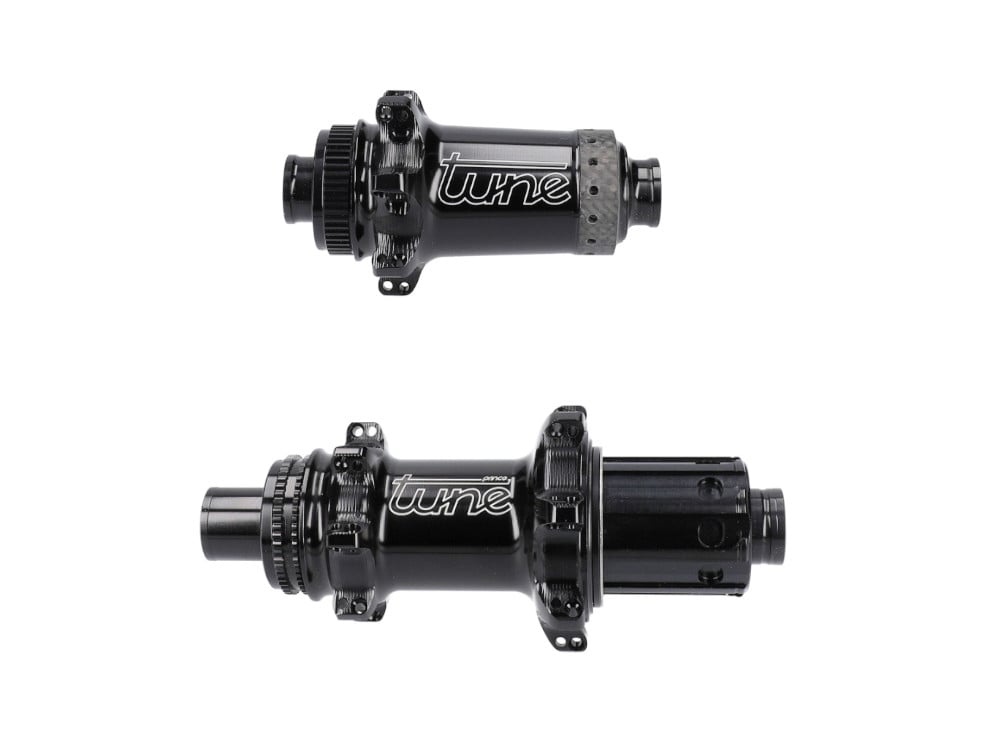

Wheelset 28" Disc GRV | Tune Road Straightpull Center Lock Hubs | Duke Gravel Carbon Rims

Brake disc mount: Center Lock
Spoke type: Straightpull
Storage: 3x Stainless steel ball bearings, 1x ceramic ball bearings
Freewheel type: 3 pawls, 27 grids
Freewheel compatibility: 11-, 12-speed Shimano / SRAM Road, 10-speed only with spacer
Color: black, red, blue, gold, poison green, orange or silver
Weight: 185g

The built-in ceramic ball bearing reduces the frictional resistance of the hub and thus ensures a silky smooth running.



Brake disc mount: Center Lock
Spoke type: Straightpull
Storage: 3x Stainless steel-ball bearings, 1x ceramic ball bearings
Freewheel type: 3 pawls, 27 grids
Freewheel compatibility: 12-speed SRAM XDR, 11-, 12-speed SRAM XD with spacer
Color: black, red, blue, gold, poison green, orange or silver
Weight: 185g

The built-in ceramic ball bearing reduces the frictional resistance of the hub and thus ensures a silky smooth running.

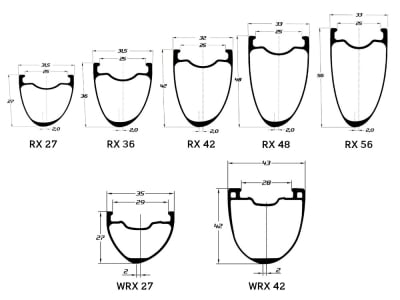

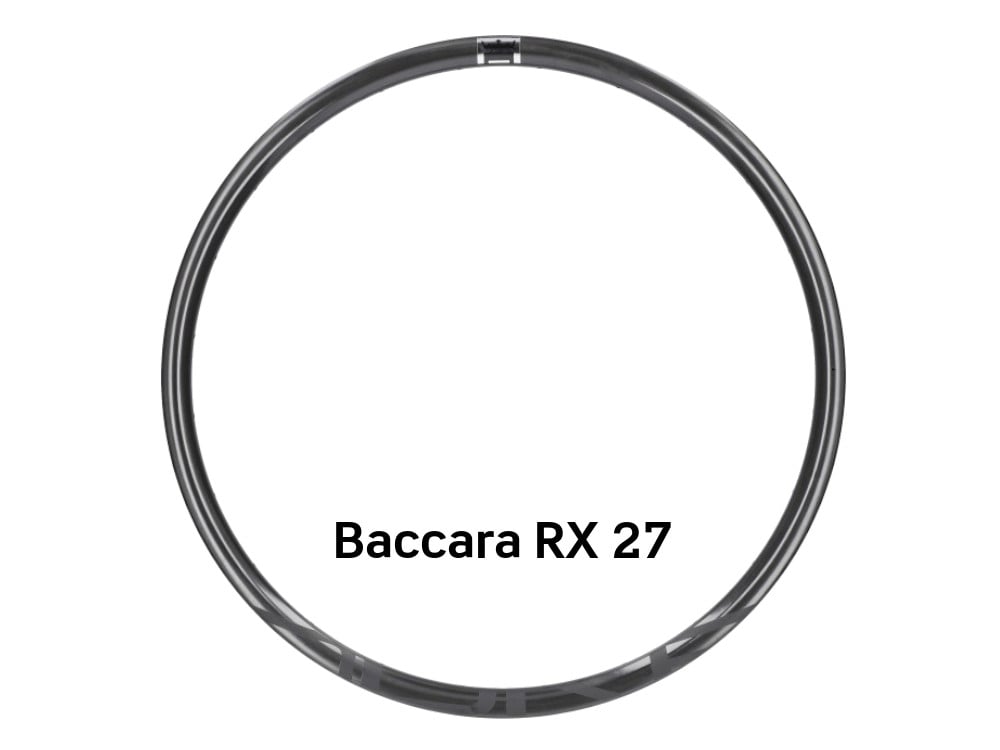

Application: Gravel GRV, racing bike RR
ETRTO: 622x25
Inner width: 25 mm
External width: 30 mm
Rim height: 27,5 mm
Offset: 2 mm (asymmetrical)
Recommended tire width: 34 - 60 mm
maximum tire pressure: 4.0 bar
maximum system weight: 120 kg (driver, bike, clothing and possibly luggage)
Color / finish: UD carbon / black matt
Weight: 335g

Application: Gravel GRV, racing bike RR
ETRTO: 622x25
Inner width: 25 mm
External width: 32 mm
Rim height: 38 mm
Offset: no
Recommended tire width: 34 - 60 mm
maximum tire pressure: 4 bar
maximum system weight: 120 kg (driver, bike, clothing and possibly luggage)
Color / finish: UD carbon / black silk gloss
Weight: 395g

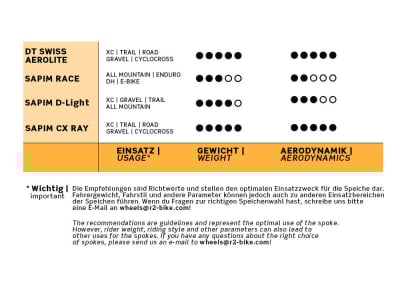

Area of ??application: MTB, Gravel, E-Bike
Weight incl. nipple: approx. 6.95g (1 piece)

By far the most popular spoke in the Sapim range is the indestructible Race. Despite the still low weight, the most stable wheels can be built with it. The elastic middle part easily copes with high peak loads. A real all-rounder with which you can throw yourself into any adventure.

Intended use: Cross Country, Trail, All Mountain, Gravel, BMX
Weight including nipple: approx. 5.95g (1 piece)

Sapim places the D-Light between the Laser and the Race. It's not quite as light as the former, but it's almost as durable as the stable Race. This makes it interesting even for BMX riders. The tapered middle section is able to absorb even high peak loads, thereby minimizing the risk of breakage. At the same time, it is stiff enough to prevent unwanted torsion during wheel building, which simplifies the process and enables durable wheels. The sum of the properties makes the Sapim D-Light a universal spoke with which there are almost no limits.

Application: Cross Country, Trail, Gravel, Road
Weight incl. nipple: approx. 5.45g (1 piece)

With the CX-Ray, Sapim has succeeded in developing an extraordinary spoke. In addition to its low weight, it has exceptional resilience and flexibility. This also results in the large range of applications. It doesn't matter whether you are a racing cyclist or a mountain biker, everyone benefits from these positive characteristics. In addition, the flattened center section ensures excellent aerodynamics. The high material quality enables the construction of stable wheels and guarantees a long service life.

Application: Cross Country, Trail, Gravel, Road
Weight incl. nipple: approx. 5.45g (1 piece)

With the CX-Ray, Sapim has succeeded in developing an extraordinary spoke. In addition to its low weight, it has exceptional resilience and flexibility. This also results in the large range of applications. It doesn't matter whether you are a racing cyclist or a mountain biker, everyone benefits from these positive characteristics. In addition, the flattened center section ensures excellent aerodynamics. The high material quality enables the construction of stable wheels and guarantees a long service life.

Application: Cross Country, Trail, Gravel, Road
Weight incl. nipple: approx. 5.5g (1 piece)

The DT Swiss Aerolite has been the first choice of many wheel builders for building high-end wheelsets for years. With its middle section flattened to 0.9 millimeters, the Aerolite cuts particularly well through the air and helps you to save some watts at high speeds. In addition, it is the lightest flat spoke in the DT-Swiss range. The spoke is first butted to a thickness of 1.5 mm in a cold forging process and then flattened in a further process. This complex process further increases the strength and gives the Aerolite its high stability and durability. Thanks to these properties, the bladed spoke can be used on racing bikes or mountain bikes and fits into all hubs with standard bores.

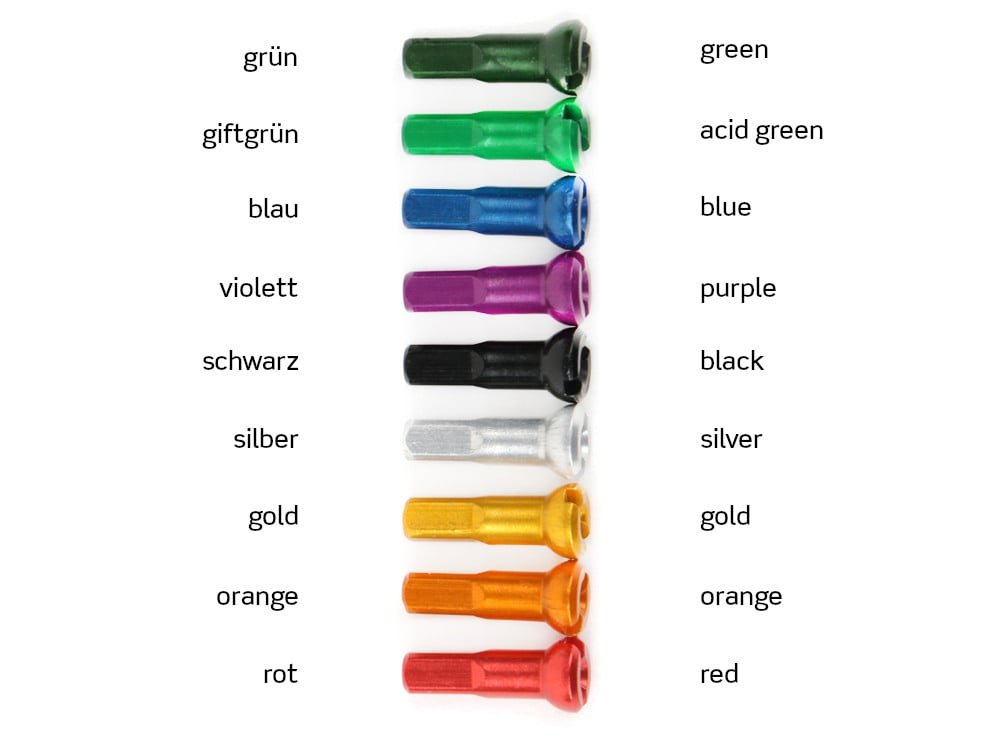

SAPIM Polyax aluminum nipple with 14 mm total length. The head shape allows the nipple to align better in the pulling direction and thus prevents the spoke from buckling too much. For a beautiful look, these SAPIM aluminum nipples are high-quality anodized to match your bike accent color.

Weight per Piece: 0,35g

SAPIM Polyax aluminum nipple with 14 mm total length. The head shape allows the nipple to align better in the pulling direction and thus prevents the spoke from buckling too much. For a beautiful look, these SAPIM aluminum nipples are high-quality anodized to match your bike accent color.

Weight per piece: 0.35g

SAPIM Polyax aluminum nipple with 14 mm total length. The head shape allows the nipple to align better in the pulling direction and thus prevents the spoke from buckling too much. For a beautiful look, these SAPIM aluminum nipples are high-quality anodized to match your bike accent color.

Weight per piece: 0.35g

SAPIM Polyax aluminum nipple with 14 mm total length. The head shape allows the nipple to align better in the pulling direction and thus prevents the spoke from buckling too much. For a beautiful look, these SAPIM aluminum nipples are high-quality anodized to match your bike accent color.

Weight per piece: 0.35g

SAPIM Polyax aluminum nipple with 14 mm total length. The head shape allows the nipple to align better in the pulling direction and thus prevents the spoke from buckling too much. For a beautiful look, these SAPIM aluminum nipples are high-quality anodized to match your bike accent color.

Weight per piece: 0.35g


SAPIM Polyax aluminum nipple with 14 mm total length. The head shape allows the nipple to align better in the pulling direction and thus prevents the spoke from buckling too much. For a beautiful look, these SAPIM aluminum nipples are high-quality anodized to match your bike accent color.

Weight per piece: 0.35g

SAPIM Polyax aluminum nipple with 14 mm total length. The head shape allows the nipple to align better in the pulling direction and thus prevents the spoke from buckling too much. For a beautiful look, these SAPIM aluminum nipples are high-quality anodized to match your bike accent color.

Weight per piece: 0.35g


SAPIM Polyax aluminum nipple with 14 mm total length. The head shape allows the nipple to align better in the pulling direction and thus prevents the spoke from buckling too much. For a beautiful look, these SAPIM aluminum nipples are high-quality anodized to match your bike accent color.

Weight per piece: 0.35g
