Wheelset 28" Disc GRV | Chris King Road Center Lock Hubs | Duke Gravel Carbon Rims

Item number:
47105
Product weight: 1335 g
Brands: r2-bike

from 1.947,50 €
MSRP: 2.149,44 €
You save 9,4%, that is 201,94 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

Availability:
handmade - in about 4 - 6 months
Configure now

We can't deliver this item to your chosen country.


Chris King Front Hub J-Bend Center Lock
Chris King Front Hub J-Bend Center Lock
  • Brake disc mount: Center Lock
    Spoke type: J-Bend (curved)
    Storage: 2x Chris King Ceramic ball bearings
    Color: black, matt black, black / gold, matt slate, matt mango, navy, red, silver, matt turquoise, gold
    Weight: 140g

Chris King Rear Hub J-Bend Center Lock
Chris King Rear Hub J-Bend Center Lock
  • Brake disc mount: Center Lock
    Spoke type: J-Bend (curved)
    Bearings: 4x Chris King ceramic ball bearings
    Freewheel type: stainless steel tooth lock washers, 45 grids
    Freewheel compatibility: 12-speed SRAM XDR, SRAM XD with spacer
    Color: black, matt black, black / gold, matt slate, matt mango, navy, red, silver, matt turquoise, gold
    Weight: 261g

Color Chris King Hubs
Color Chris King Hubs
Duke Rims Carbon Gravel
Duke Rims Carbon Gravel
  • Intended use: Gravel GRV, Roadbike RR
    ETRTO: 622x25
    Inner width: 25 mm
    Outside width: 32 mm
    Rim height: 50 mm
    Offset: no
    recommended tire width: 28 - 50 mm
    maximum tire pressure: 4 bar
    maximum system weight: 120 kg (driver, bike, clothing and possibly luggage)
    Color / finish: UD Carbon / black matt
    Weight: 420g

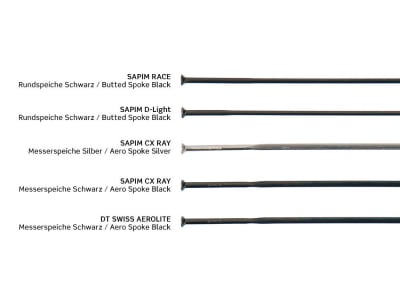

Spokes
Spokes
  • Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!


Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details

Description

Wheelset 28" Disc GRV | Chris King Road Center Lock Hubs | Duke Gravel Carbon Rims

Area of intended use : Gravel GRV, road bike RR

This light yet stable wheel set is the first choice for dedicated gravel or cross bikers. The balanced selection of components guarantees you high reliability and a long service life.

hubs
When Chris King's engineers started developing the R45, everything was based on the motto "light & fast". Every detail was haggled and the result is impressive. Not only is it lighter than its predecessor, it is also significantly stiffer thanks to the 17 mm axle . As a result, it twists less and transmits steering commands very precisely. But one thing has remained, the soul of Chris King.
Due to the enlarged hub flange, shorter spokes can be used when building wheels. This not only saves weight, but also enables a very stable and durable wheel.
The heart of the hub are the ball bearings. These are also developed and produced directly by Chris King. This means that they can be fully adapted to the specific loads and forces. Due to the multiple seal, the ingress of water or dirt is almost impossible. Adjusting the bearing clearance is very simple and can also be carried out when installed.
The unmistakable sound of the freewheel is the hallmark of the rear wheel hubs. It is generated by the 45 grid points of the stainless steel toothed disc. Thanks to this 3-part ring drive system, every step is immediately converted into propulsion without much idle travel.

rims
The carbon rims developed and manufactured by Duke for gravel use are made for tough off-road use with their large internal width and the high approved system weight. They will definitely not let you down. You have the option of driving very wide tires, which increases comfort and grip. They are also tubeless compatible, which reduces the risk of punctures.

Impeller construction at R2-Bike

Our wheels are assembled entirely by hand by our wheel builders. During the entire construction, it is important that not only the concentricity is right, but also that the spoke tension is as even as possible. The special care allows us to give a lifetime guarantee against broken spokes, as long as this is not caused by violence!

You will also receive the following services with our wheels:

A universal impeller bag for all common sizes.
A spare spoke + nipple in all required spoke lengths to be able to repair the impeller at short notice even after an accident.
A free initial check of the impeller, where the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant a 100% discount on all labor costs and only charge for the material!


Technical specifications:

Area of intended use : Gravel GRV, racing bike RR
Wheel size: 28" (ETRTO: 622 x see detailed description)
Rim Type: Clincher (clincher and folding)
Brake type: disc brake
Brake disc mount: Center Lock

weights:

1335g (lightest variant: 12x100 mm + 12x142 mm, World Runner 27, 24 holes, Sapim CX-Ray)
1619g (heaviest variant: 12x100 mm + 12x142 mm, World Runner 50, 28 holes, Sapim Race)

Notice:
Due to manufacturing variations in all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals/rim stickers.

The specified delivery time refers to the usual time it takes to assemble the wheelset and does not reflect the availability of the individual parts.


Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
2x hologram stickers
