Wheelset 27,5" TR AM EN | Tune MTB 6-Hole Hubs | DT Swiss Aluminum Rims

Item number:
47436
Product weight: 1568 g
Brands: r2-bike

from 897,50 €
MSRP: 1.043,98 €
You save 14,03%, that is 146,48 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

Availability:
handmade - in about 2 - 3 months
Configure now

We aren't allowed to deliver this item to the United States.

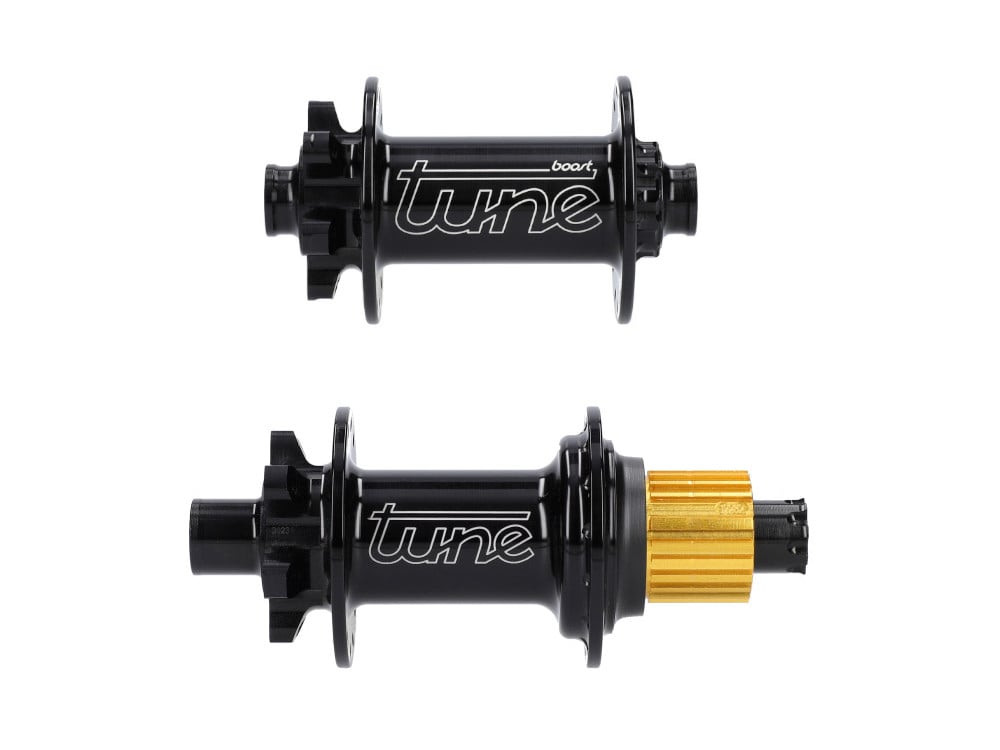

Tune Front Hub J-Bend 6-Hole
Tune Front Hub J-Bend 6-Hole
  • Brake disc mount: 6-hole
    Spoke type: J-Bend (curved)
    Storage: 2x industrial ball bearings with special solid lubricant
    Color: black, silver, red, blue, gold, poison green or orange
    Weight: 124g

    For use in adverse weather conditions, the ball bearings in the endurance version are filled with a special solid lubricant that can also handle the use of high-pressure cleaners.
    With the 110 millimeter wide BOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing.
Tune Rear Hub J-Bend 6-Hole
Tune Rear Hub J-Bend 6-Hole
  • Brake disc mount: 6-hole
    Spoke type: J-Bend (curved)
    Storage: 4x industrial ball bearings (1 with special solid lubricant)
    Freewheel type: 3 pawls, 27 grids
    Freewheel compatibility: 12-speed Shimano Micro Spline
    Color: black, red, blue, gold, poison green, orange or silver
    Weight: 231g

    For use in adverse weather conditions, the endurance variant's left outer and most heavily loaded ball bearing is filled with a special solid lubricant that can also cope with the use of high-pressure cleaners. In addition, the freewheel body of the Endurance rear hub has been reinforced to better absorb the high leverage of wide-range cassettes over the long term.
    With the 148 millimeter wide BOOST hub, stiffer wheels with a more even spoke angle can be built on both sides thanks to a wider flange spacing.

Colour Tune Hubs
Colour Tune Hubs

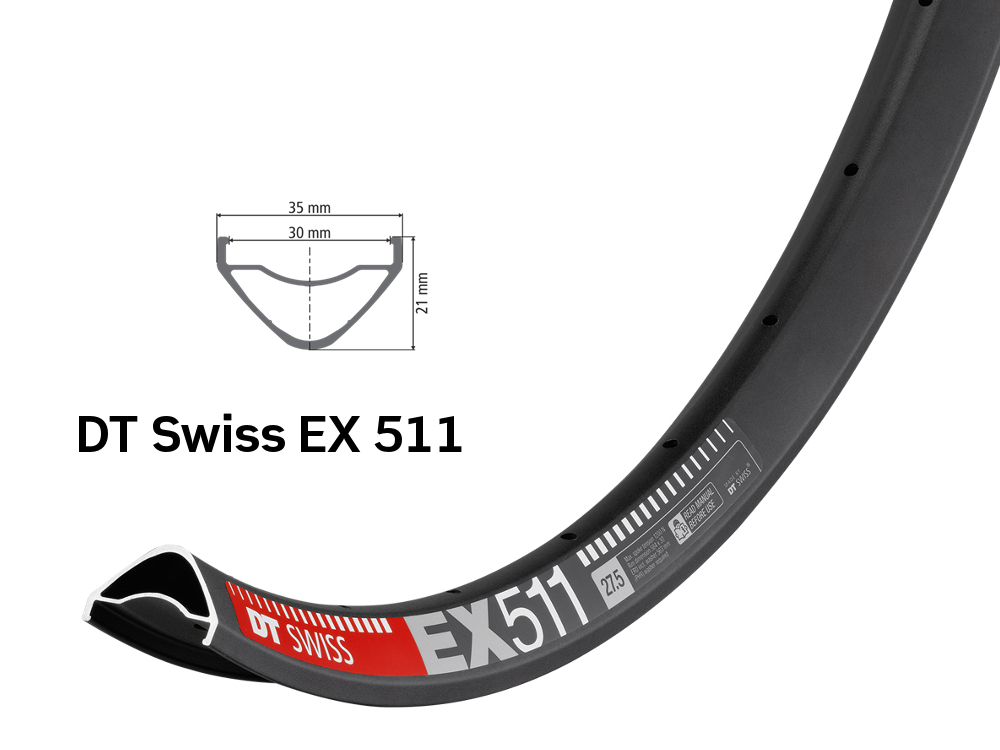

DT Swiss Rims Trail - All Mountain - Enduro
DT Swiss Rims Trail - All Mountain - Enduro
  • Area of ??application: All Mountain AM, Enduro EN
    ETRTO: 584x30
    Inner width: 30 mm
    Outside width: 35 mm
    Rim height: 21 mm
    Offset: no
    recommended tire width: 47 - 89 mm
    maximum tire pressure: 2.0 - 4.7 bar
    maximum system weight: 110 kg (driver, bike, clothing and possibly luggage)
    Color / finish: black / matt
    Weight: 538g

Spokes
Spokes
  • Application: Road, Gravel, Cross Country, Trail
    Weight incl.nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!


Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details

Description

Wheelset 27.5 "TR AM EN | Tune MTB 6-hole hubs | DT Swiss aluminum rims

intended use : Trail TR, All Mountain AM to Enduro EN

With this wheelset you can really let it rip even in difficult terrain. The indestructible Tune hubs and the sturdy DT Swiss rims forgive driving mistakes. The balanced selection of components guarantees you a high level of reliability and a long service life.

Hubs
The Tune hubs are classics among lightweight disc brakes. Originally developed for the MTB sector, they are now among the best options for light road, cyclo-cross and gravel wheels. They can not only be used to build lightweight and durable wheels, thanks to their 17 millimeter axle system, they can be used extremely flexibly and can be converted to different axle type with minimal effort. The hub gets its high stability and strength from the manufacture of aerospace aluminum. When freewheeling the rear hub, Tune relies on the tried and tested system with 3 pawls that engage in a titanium ring with 27 teeth.

rims
DT Swiss has stood for innovative products of the highest quality for years. Starting as a manufacturer of high-quality spokes, the company continuously expanded its product range. Since 2004, the Swiss have also had rims in their range, which they are constantly improving through feedback from professional cyclists and taking into account new developments in materials and manufacturing. Today DT Swiss rims are among the most driven on the market.
Thanks to extensive FEM analyzes, the aluminum rims only contain as much material as is absolutely necessary. They are connected by the SBWT® welding process. The rim is stabilized with a block during welding and then CNC machined to guarantee a seamless transition.


Wheel construction at R2-Bike

Our wheels are completely assembled by hand by our wheel builders. During the entire construction process, it is important that not only the concentricity is correct, but also that the spoke tension is as even as possible. The special care allows us to give a lifelong guarantee against broken spokes, as long as this was not caused by force!

You will also receive the following services for our balance bikes:

A universal impeller bag for all common sizes.
A spare spoke + nipple in all required spoke lengths to be able to repair the wheel at short notice even after an accident.
A free initial inspection of the impeller, during which the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant a 100% discount on all labor costs and only charge the material!


Technical specifications:

intended use : Trail TR, All Mountain AM to Enduro EN
Impeller size: 27.5 "(ETRTO: 584 x 30)
Rim type: Clincher (wire and folding tires)
Brake type: disc brake
Brake disc mount: 6-hole

Weights:

1568g (lightest variant: Cannonball 2.0 + 12x142 mm, XM 481, 28 holes, Sapim CX-Ray)
1844g (heaviest variant: Endurance Boost + Endurance Boost, EX 511, 32 holes, Sapim Race)

Note:
Due to manufacturing fluctuations in all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals / rim stickers.

The specified delivery time refers to the usual duration for the assembly of the wheelset and does not reflect the availability of the individual parts.

If you would like a special spoke on the rear wheel, e.g. for the Cannondale Ai rear triangle or for EVO6, please contact our service team.


Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x construction certificate
2x hologram sticker
