Wheelset 27.5" TR EN | DT Swiss 240 EXP MTB Center Lock hubs | Newmen carbon rims
Application: Trail TR, Enduro EN
With this wheelset you can really let it rip. The indestructible DT Swiss hubs and the excellently manufactured Newmen rims are forgiving of the occasional riding error. The balanced selection of components guarantees you a high level of reliability and a long service life.
Hubs
Lighter, stiffer, more precise and easier to maintain - these are the strengths of the new DT Swiss 240 hubs. These properties have been achieved thanks to Ratchet EXP technology. This not only means that the hubs have fewer components and therefore lower weight and less wear, it also allows the bearing to be positioned much further out on the drive side. The greater distance between the bearings results in greater hub rigidity, lower bearing loads and therefore greater durability. The stiffness on the hub body serves to distribute the load more evenly on the spokes. Drive and braking forces are transmitted even better from both spoke flanges to all spokes. One-sided load peaks are prevented, which protects the hub, spokes and rim. The super reliable toothed pulley freehub system with its large contact surface and 36 engagement points ensures extremely direct and reliable power transmission.

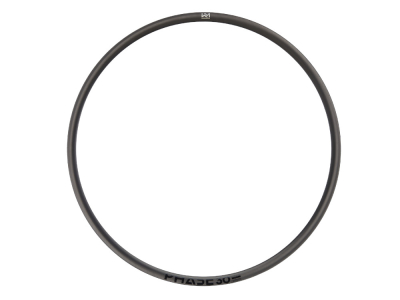

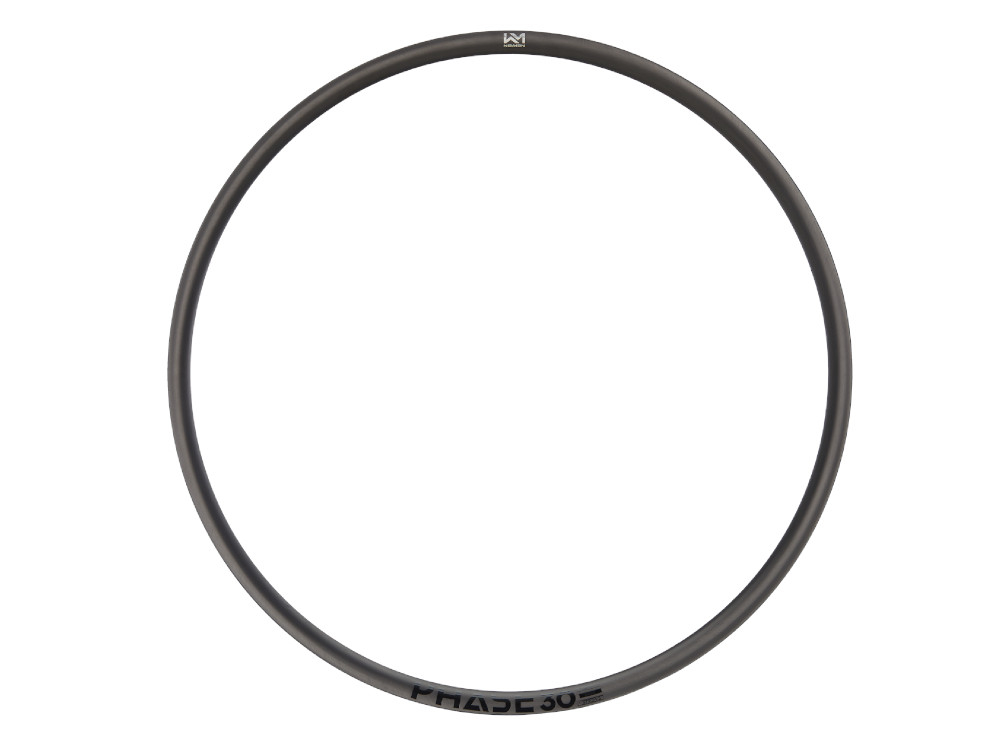

Rims
Advanced becomes Phase - Newmen provides a special rim for every area of application within this series. Whether cross-country, all-mountain or enduro, you will always get a model that is uncompromisingly customized, but they all have one thing in common: Newmen's high quality.
The Phase Base front and rear or in combination with a Phase Strong rim on the rear wheel are the first choice for anyone who really wants to let it rip. They shine with low weight and first-class riding characteristics. The perfectly processed carbon fibers are extremely impact-resistant and give the rim incredible stability. This means that precise steering movements are possible at all times. A special production process makes reworking and painting unnecessary. This saves even more grams.
The very generous inner width of 30 mm, together with the slightly outward-positioned sidewall, gives the tire an optimally round shape, which is reflected in better grip and more comfort.Newmen has opted for a hookless rim flange, which has been specially reinforced to better withstand possible punctures. As a result, you can ride with less air pressure and achieve optimum tubeless compatibility.
Wheel construction at R2-Bike
Our wheels are assembled entirely by hand by our wheel builders. During the entire assembly process, great importance is attached to ensuring that not only the concentricity is correct, but also that the spoke tension is as even as possible. This special care allows us to offer a lifetime guarantee against spoke breakage as long as it is not caused by force.
The following services are also included:
You will receive a universal wheel bag for all common sizes.
You will receive a replacement spoke with nipple in all required spoke lengths so that you can repair the wheel quickly after an accident.
You will receive a free initial inspection of the wheel, where the resulting work is completely free of charge. Only shipping costs are incurred.
You get a crash replacement promise: If your wheel is damaged due to force majeure, we will rebuild it once. We grant a 100% discount on all labor costs and only charge for the material.
Technical data:
Area of application: Trail TR, Enduro EN
Wheel size: 29" (ETRTO: 622 x 30 mm)
Rim type: clincher (clincher and folding tires)
Brake type: Disc brake
Brake disc mount: Center Lock
Weights:
1435g (lightest version: 15x100 mm + 12x142 mm, SRAM XD, Base + Base rims, Sapim CX-Ray)
1623g (heaviest version: Boost + Boost, Shimano/SRAM MTB, Base + Strong rims, Sapim Race)
Note:
Deviations in weight are possible due to manufacturing variations in all components. The specifications are generally calculated without rim tape, valves and decals/rim stickers.
The specified delivery time refers to the usual time required to assemble the wheelset and does not reflect the availability of the individual parts.
Scope of delivery:
1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
2x hologram stickers
