Description

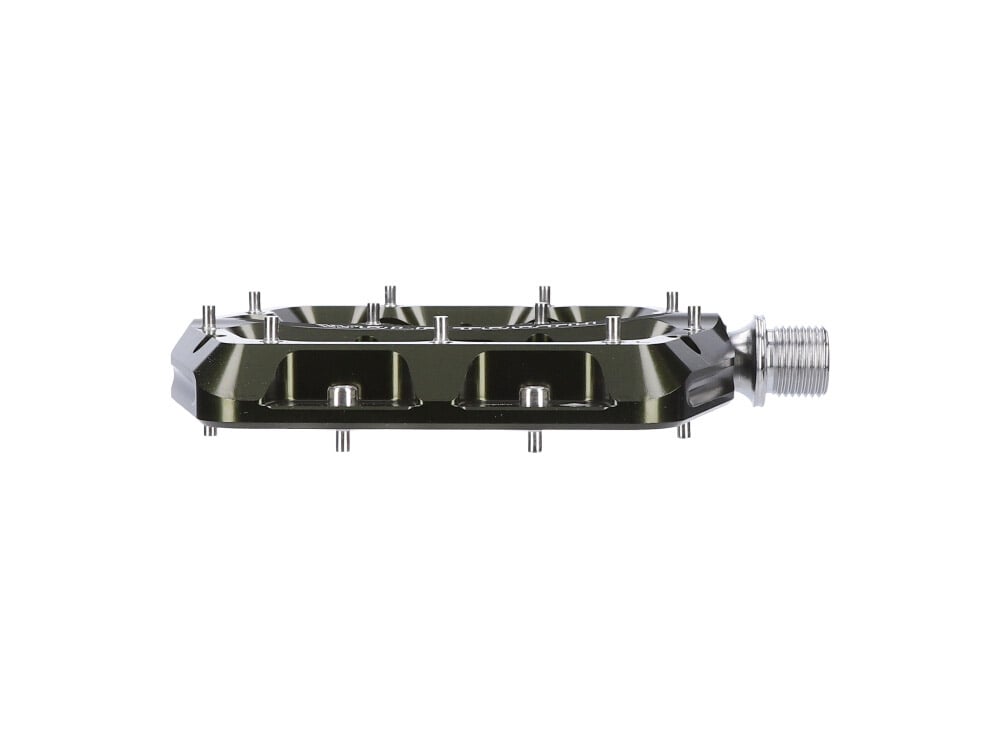

WOLFTOOTH pedals Waveform large | olive
The WOLFTOOTH Waveform is a high-quality platform pedal designed and manufactured in Minnesota.
The pedals feature an excellent double concave platform with a narrow Q factor. With their large pedal body with 106 x 112 mm contact area and 11 interchangeable pins (per side), they offer excellent grip. A special radial seal protects three fully sealed cartridge bearings for low-friction riding in all conditions.
The pedals are available in two sizes.
Technical data:
intended use : Cross Country to Downhill
Material pedal axle: stainless steel 17-4 PH
Pedal body material: aluminum 6061-T6
Pin material: 304 stainless steel
Overall height: 14 mm (without pin)
Pedal contact area: 106mm x 112mm
Number of pins: 11 per side
bearing : three high-precision, low-friction, sealed bearings
Compatibility Shoes:-
max. rider weight: kA
Color: olive
Weight according to the manufacturer: 384g
Weight weighed: 391g
Scope of delivery: 1 pair of WOLFTOOTH Waveform large pedals
Note: All pedal components are available as replacement parts through Wolf Tooth's relatively new Right to Repair program.
