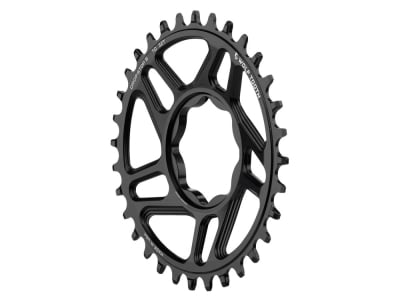

WOLFTOOTH chain ring E-Bike Direct Mount Drop-Stop B 12-speed for Trek TQ
Direct mount chain ring for Trek e-bike motors.
In addition to the clean look, a direct mount chainring offers greater rigidity at a low weight. Wolftooth's drop-stop technology allows you to omit a chain guide. This is made possible by special teeth that alternate between narrow and wide. For reliable chain guidance, we recommend using a rear derailleur with increased cage tension. Shimano offers these under the name Shadow+. SRAM calls it Type 3.0. The chainring is CNC-milled from one piece of 7075 aluminum and then anodized for maximum strength and low wear values.
Technical specifications:
intended use : e-bike
Compatibility drive: Trek TQ e-bike motors
Material: Aluminum 7075-T6
Technology: Drop Stop B
Mounting: direct mount
Number of teeth: 30 or 32 teeth
Compatibility cranks : -
Chain compatibility: 9 to 11-speed chains, 12-speed SRAM Eagle, SRAM Flattop, Campagnolo, KMC, Connex or Wippermann
Mounting: single
chain line : 55 mm
Offset: -
Adjustment options: none
Color: Black
Weight according to the manufacturer: 30 teeth - 64g, 32 teeth - 69g
Weight weighed: 30 teeth - 64g, 32 teeth - 69g
Scope of delivery: 1x chain ring WOLFTOOTH E-Bike Direct Mount Drop-Stop B 12-speed for Trek TQ
