WHEELS MFG Bottom Bracket 386EVO ABEC-3 for 30 mm Cranks

WHEELS MFG bottom bracket 386EVO ABEC-3 for 30 mm cranks

Wheels MFG is one of the world's largest suppliers of high-quality wheel components. Here, the boys and girls from Coloroda have specialized mainly in bottom bracket and associated tool. Wheels MFG bearings use precision enduro bottom brackets in three different configurations and offer first-class ball-end quality. And because in the workshops in Colorado, the engineers knew that Pressfit bearings and robustness are incompatible, Wheels MFG bottom bracket are usually offered as a screw-bearing. This has the advantage that the bearings are easy to disassemble and assemble and are self-centering and locking due to the long thread. This prevents annoying fumbling and bottom bracket noise. These bearings are to be mounted in a common frame for pressfit bearings with bearing keys.

This bottom bracket is used to drive a crank with 30mm shaft, in a frame with BB86 standard and is equipped with high quality ABEC-3 ball bearings from Enduro Bearings. The additional external sealing discs close off your new endurance runners exactly from water and dirt.

NOTE: The bearing can accommodate cranks with matching adapter GXP and Hollowtech II . The adapters are available here in the shop.


Technical specifications:

intended use : MTB, Road, Cyclocross
Material bearing shell: aluminum
Material bearings: steel
Bearing Type: PressFit 30 | BB30
Inner bearing housing width: 79 mm - 92 mm
Inner bearing housing Ø: 46 mm
Crank shaft diameter: 30 mm
Compatibility crank: BB30 or EVO386 cranks with 30mm shaft, rotor 3D30 & 3D +, SRAM BB30 Wide
Bearing: Enduro ABEC-3, double sealed
Tool holder: ring key with cam 16 mount
Color: black anodized

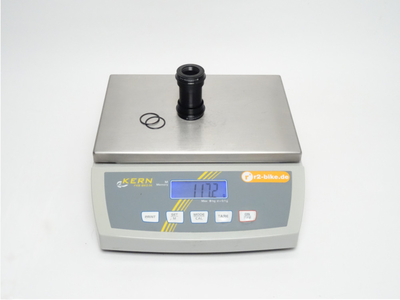

Weight according to manufacturer: 126g
Weight weighed: 124g


Scope of supply: 1x WHEELS MFG bottom bracket 386EVO ABEC-3 for 30 mm cranks
