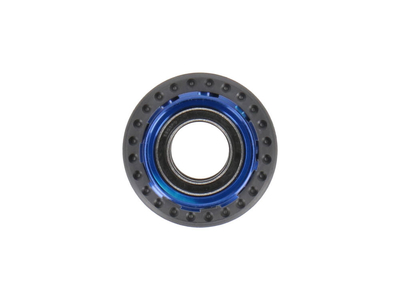

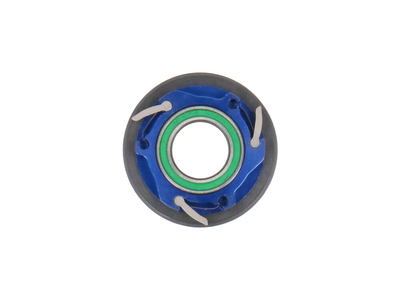

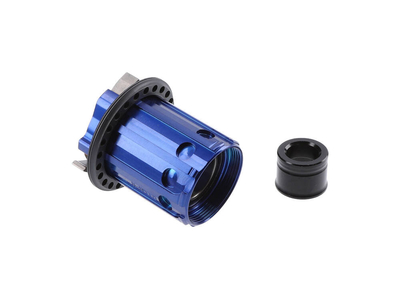

TUNE freehub body set standard 3-teeth conversion kit for 12 mm thru axle | Shimano 11-speed Road
This freehub body set is suitable for all Tune hubs with a 17 millimeter axle and is suitable for use with 12 millimeter thru axles. The axial bearing play can be adjusted using the shim included in the scope of delivery.
Note: Remove the 1.8 mm spacer from your freehub to convert from Shimano/SRAM 10-speed MTB to Shimano 11-speed Road. Remove both spacers (1.8 mm and 0.6 mm) from your freehub to convert from Shimano/SRAM 10-speed MTB to Shimano 12-speed Road.
technical data:
Material: Aluminum 7075, titanium (pawls)
Cassette compatibility: 9-, 10-, 11-, 12-speed Shimano Road; 9-, 10-, 11-speed Shimano | SRAM MTB
Hub compatibility: Tune hubs with 17 mm axle
Compatibility wheels: Tune wheelsets
Axle standard: 12x 142 mm | 12x 148 mm BOOST thru axle
Freehub type: 3 pawls
Bearing: 2-fold industrial bearing, stainless and sealed
Color: blue
Weight according to manufacturer: 56g
Weight self-weighed: 55g
Scope of delivery:
1x TUNE freehub body set Endurance 3-Teeth | Shimano 11-speed Road
2x ball bearings 61803
3x titanium pawls and pawl springs
1x 1.8 mm spacer ring for 9-, 10-speed Shimano | SRAM cassettes
1x 0.6 mm spacer ring for Shimano 11-speed cassettes
1x sprocket stop
1x right end cap for 12 mm thru axle
2x 0.1 mm shim
1x 0.15 mm shim
1x 0.2 mm shim
