PAW BIKE COMPONENTS Pedals Two-Face Composite | black
The Tatze Two-Face Pedal is an extremely powerful flat pedal and an efficient click pedal at the same time.

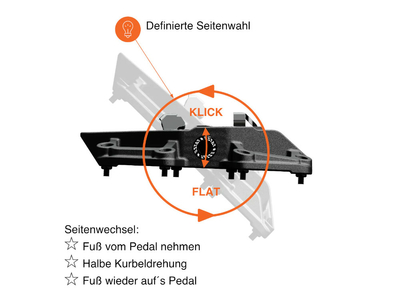

The 10 PINs with targeted elevation on the flat side ensure enormous grip, but also on the click side, a particularly solid connection between pedal and shoe is created with large contact surfaces. For optimized ground clearance, the flat side is rotated by 2.5° to the click side, which increases the ground clearance by 5 mm in the crucial places. A defined choice of side is particularly important with a combination pedal. With the two-face pedal, the side remains after the load has been removed through targeted resistance in the bearing , so that the same side/function is available again when you step on it again. Due to the selection of the highest quality materials and manufacturing processes, the Two-Face is extremely resistant and durable.
The most important specifications at a glance:
- Flat side with 10 PINs (W: 100 mm, L: 107 mm)
- Click page without PINs (W: 63 mm, L: 97 mm)
- SPD compatible
- developed and tested in Tyrol/Austria
Technical specifications:
Area of intended use : MTB
axle : steel
Pedal body: glass fiber reinforced thermoplastic
Bearing : 1x slide bearing + 2x ball bearing
Sealing: 2x double seal + end cap
Pins: flat side with 10 pieces
Spring: steel
Color: Black
Release angle: 12°
Freedom of movement: 5°
Release hardness: 4-12 Nm adjustable
max. rider weight: no limit
Weight according to the manufacturer: 436g
Weight weighed: 433g
Scope of delivery:
1 pair of flat pedals with click Two-Face Composite
1 pair of cleats
