Description

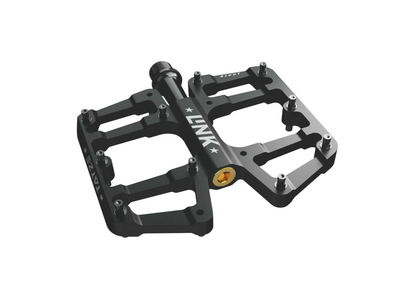

PAW BIKE COMPONENTS Pedals LINK Titanium
TATZE LINK Titan - Ultra-Flat & Mega-Grip!

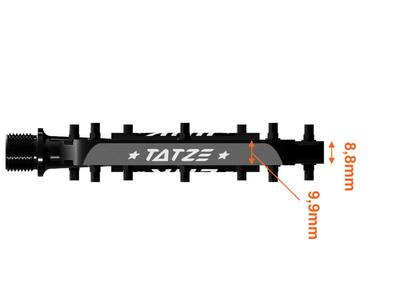

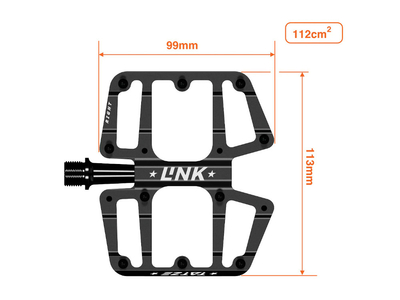

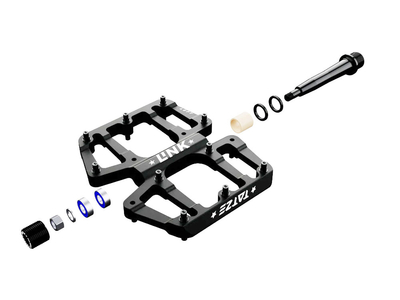

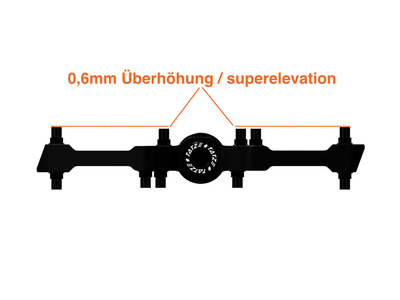

The LINK pedal is an extremely thin flat pedal. The large platform with 112cm2 (113 x 99mm/L x W) and 40 TATZE PINs with targeted elevation ensure enormous grip and a good connection between pedal and shoe. In order to further increase the grip or to maximize the contact area, 4 additional PINS can be screwed in on each side. The LINK avoids unwanted contact with the ground thanks to its extremely thin design. The pedal body is only 8.8mm thick at the exposed outer edge, making the LINK one of the thinnest pedals on the market. Its open design allows dirt to fall through the pedal and makes it lightweight at just 298g. The LINK has high-quality bearings, with an IGUS JSM plain bearing installed on the inside and 2 ball bearings on the outer end. 2 double-lip sealing rings are installed for sealing, which reliably protect the bearings from dirt and moisture. The bearing and sealing unit makes the pedal sustainable in terms of a long service life. In addition, bearings and seals can be replaced in a few minutes with the optionally available refresh kit in order to set the clock back to 0.
Developed and tested in Tyrol/Austria!
Technical specifications:
Area of intended use : Tour, Trail, Enduro, Freeride, Downhill
Material body: 6061-T6 aluminum
Material axle : Titanium
Material pins: steel
Number of pins: 10 pins per pedal side (max. 14 mountable)
Pin Length: 6mm
Thickness: 9.9 mm (without pins)
Dimensions pedal body: 99 x 113 mm
bearing : IGUS plain bearings and 2x ball bearings (multiple sealed)
Seal: high quality seals for maximum service life
max. rider weight: approved for riders up to 90 kg
Color: Black
Weight according to the manufacturer: 298g
Weight weighed: 264g (without pins)
Scope of delivery:
1x pair of TATZE BIKE COMPONENTS pedals LINK
8x spare pins
1x tool for pins
