Description
SYNCROS headset SHIS ZS49 / 28.6 | EC49 / 30 | for Scott Gambler 2020
Syncros is launching this headset especially for the Scott Gambler 2020. More precisely, there are two different steering bearings.
When installing the ZS49 / 28.6 - EC49 / 30 bearing shells, the steering angle remains unchanged, while the ZS49 / 28.6 - ZS49 / 30 version allows an adjustment of +/- 1 °. This is due to the multi-functionality of the Scott Gambler. It can be used with 27.5 "or 29" wheels, although the geometry must of course be adapted in each case. The tax rate also helps.
Otherwise it corresponds to the well-known high quality of Syncros components, is high quality, reliable and suitable for 1 1/8 "steerer tubes. The sealed industrial bearings are made of stainless steel and guarantee high steering precision.
Technical specifications:
Material: stainless steel, aluminum
Construction: semi integrated, external
Steerer: 1 1/8 "
SHIS upper part: ZS49 / 28.6 (standard), ZS49 / 28.6 (for steering angle adjustment)
SHIS lower part: EC49 / 30 (standard); ZS49 / 30 (for steering angle adjustment)
Press-in dimension above Ø: 49 mm
Offset above: 15 mm
Press-in dimension below Ø: 49 mm
Offset below: 15 mm
Outside diameter above: 57 mm
Outside diameter below: 57 mm
Height above: 11 mm (standard shell), 2 mm (shell for steering angle adjustment)
Height below: 15 mm (standard shell), 2 mm (shell for steering angle adjustment)
bearing : industrial bearing , double-sealed
Color: Black
Weight according to the manufacturer:

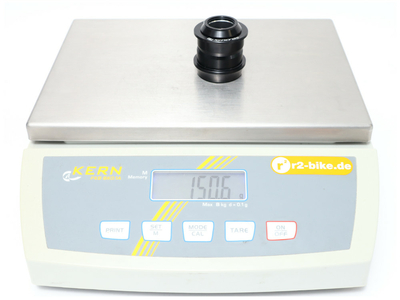

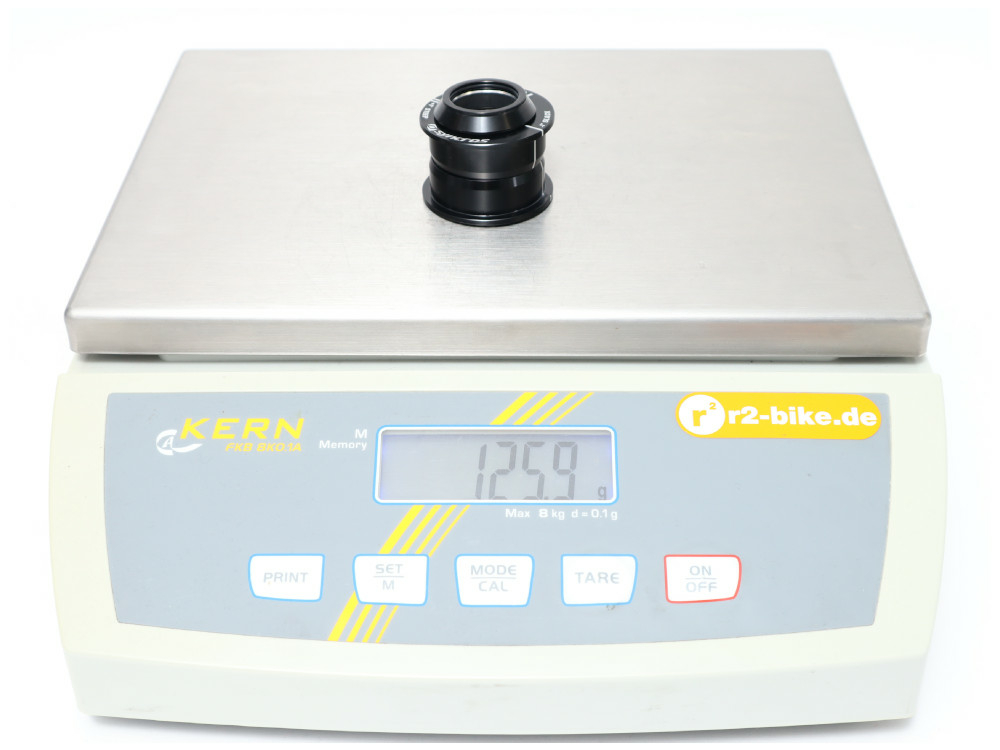

Weight weighed: 126g (with cups for steering angle adjustment), 151g (standard)
Scope of delivery:

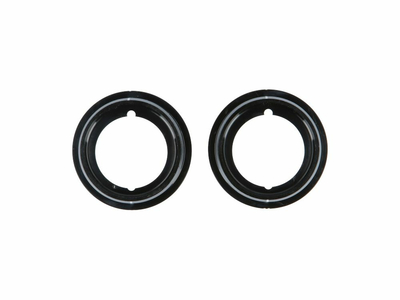

1 pair of bearing shells ZS49 + EC49 standard
1 pair of bearing shells ZS49 + ZS49 for steering angle adjustment
matching bearings and caps
Fork cone
