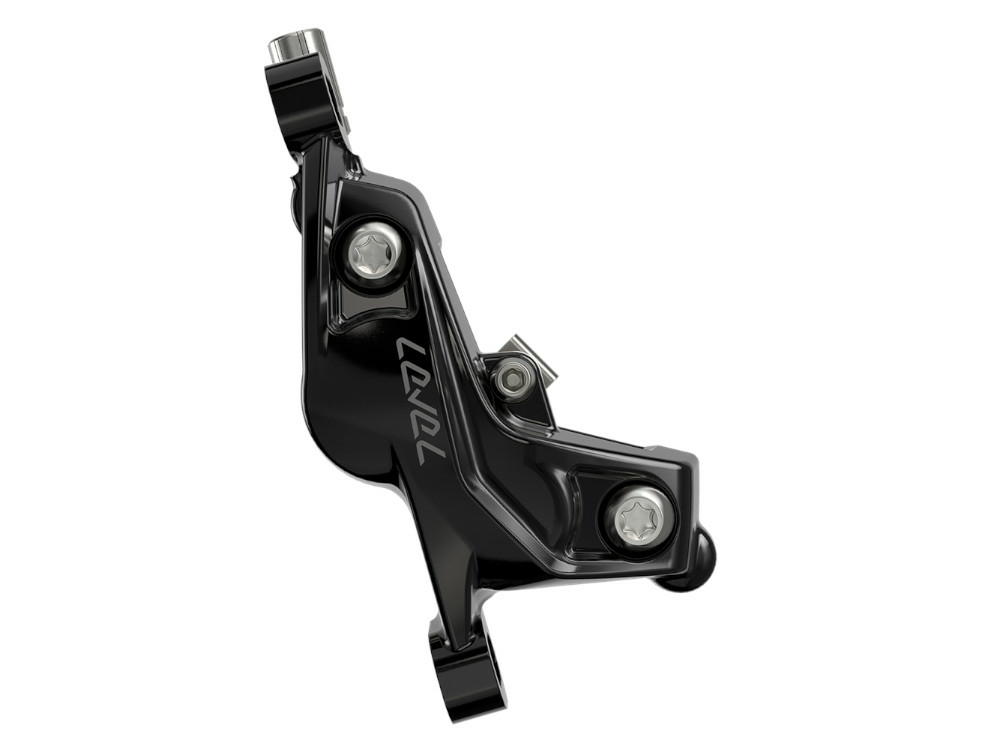

SRAM Disc Brake Level Silver stealth | 4 pistons black anodized set
The Level Silver Stealth scores with a revised encoder and new 4-piston brake calipers. The encoder is adapted to the special conditions of modern XC bikes with their integrated cockpits. A line outlet directed towards the handlebar lets the brake line run directly in the direction of the stem/headset in order to be able to disappear into the frame as quickly and cleanly as possible. Thanks to the 4-piston brake caliper, you have trail-compatible braking power at a weight that is otherwise known from XC brakes. The tool-free reach adjustment enables a quick adjustment to your hand, so that you have everything under control in every situation.
The slim, light design of the encoder was specially developed for cross-country, marathon and trail use and fits perfectly into any cockpit. Thanks to the unique DirectLink technology, you have an unbelievably direct feeling when braking with the Level Silver Stealth, which creates trust and safety from the first meter. The newly designed brake caliper, in conjunction with the DOT 4 brake fluid, offers excellent heat management and helps you to keep a cool head even on the longest descent.
In the Silver version, the Level brake was uncompromisingly trimmed by the SRAM engineers for low weight and maximum braking power. An aluminum brake lever is used which rotates around a special bearing so that you always have a perfect feeling when braking. The hardware is made of steel and is strong and durable. In order to cope with the toughest use on your down country bike, there is the SRAM Level brake with a stable 4-piston brake caliper.
So that everything can be mounted as cleanly as possible, the transmitter on the handlebar is compatible with Sram's proven Matchmaker system. This makes it possible to accommodate your brake, shifter or remote control of your Reverb seat post on just one clamp. Thanks to the Bleeding Edge technology, you can also service and bleed the brake in a short time.
Technical specifications:
Area of intended use : XC, marathon and trail
Material caliper: aluminum
Material brake lever: aluminum
Material brake caliper: aluminum
Material fastening screws: steel
Pistons: 4
Brake Mount: Postmount
recommended brake disc: SRAM HS2, one-piece (not included)
Brake medium: DOT 4
Brake line: plastic
Brake Pads: Organic, Steel Carrier, Top Loading
Design brake lever: 2-finger
Reach adjustment: yes, without tools
Pressure point adjustment: no
Mounting: on both sides (FlipFlop)
Clamp: Removable
Line length: 950 mm and 2000 mm
Colour: Black Anodized (black anodized)
Weight according to manufacturer: ---
Weight weighed:
Scope of delivery:
1x SRAM disc brake Level Silver stealth | 4 piston black anodized set (front wheel and rear wheel)
2x MMX handlebar clamp
2x olive and insert pin
2x bleed block
4x screw for mounting the brake caliper
Modell ID:
DB-LVL-SLV4-C1
