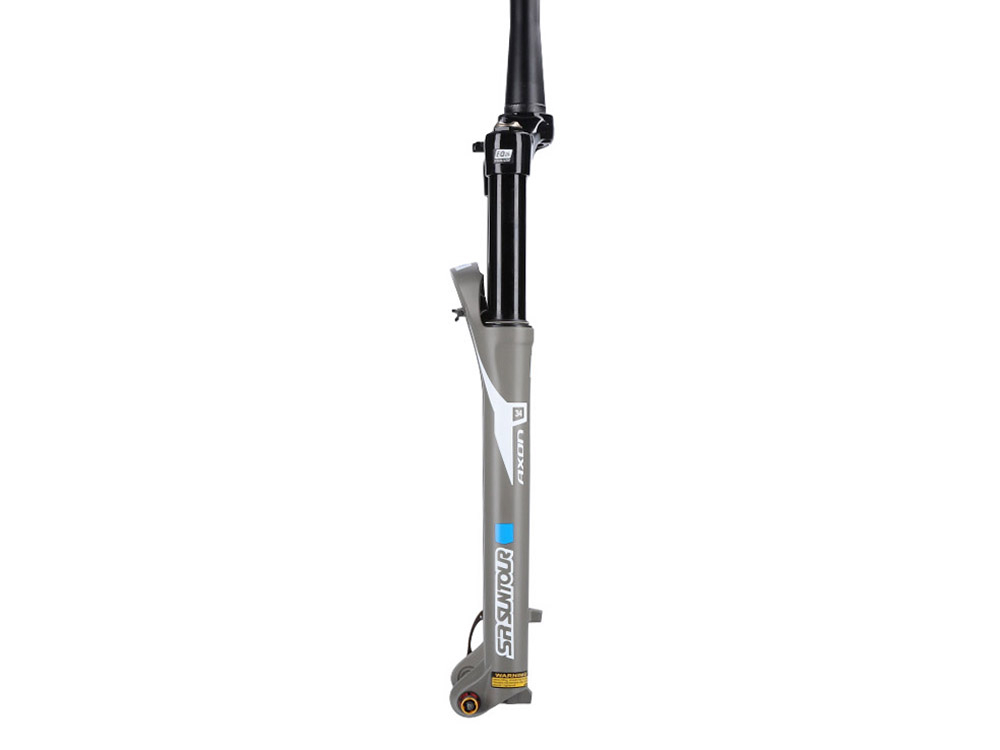

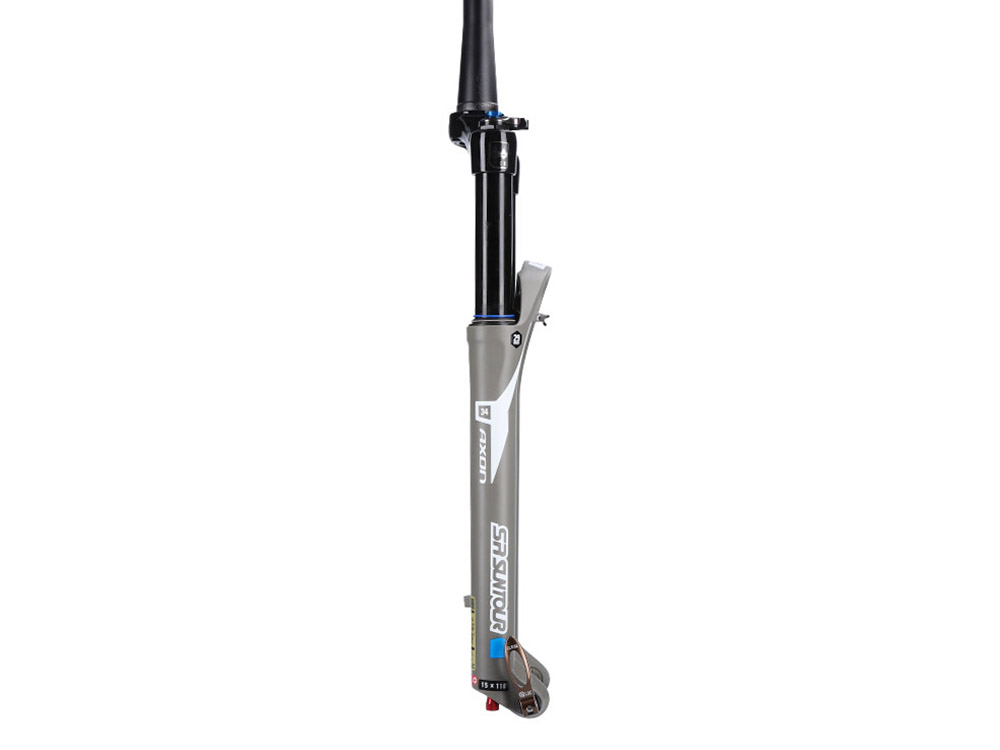

SR SUNTOUR suspension fork AXON Elite34 Air EQ RLRC PCS 120 mm 15x110 mm Q-Loc tapered 51 mm offset grey
XC racing is as much about being strong as it is about mastering the course. At the highest level, like the Olympics, World Championships or World Cup, there is no room for weakness or excuses. The Axon proved that it is successful at this level with Tom Pidcock's victory at the Tokyo 2020 Olympic Games.
The one-piece, hollow aluminum fork crown and the tapered shaft reduce the weight and, in conjunction with the 34 mm stanchions, give the Axon the necessary rigidity to enable precise steering maneuvers even in technically demanding terrain.
The new Air-EQ system perfectly balances the positive and negative air chambers. This allows you to adjust the performance of the suspension fork perfectly to your weight in order to cushion the slightest bumps or hard hits. When developing the Air EQ system, the engineers always worked together with the athletes to achieve the best possible result.
In addition to OEM solutions for the mass market, the largest suspension fork manufacturer in the world offers high-quality premium products that are right at the front. World cup victories, Olympic gold and UCI rainbow jerseys have already been won on an SR Suntour chassis. With new technologies such as the PCS cartridge and the Air EQ equalizer system, the suspension forks offer a consistently high-performance and supple spring feel that is easy to adjust. The steering precision is excellent due to the rigidity.
The lightweight hollow forging technology provides additional rigidity and keeps the weight low. This is 35 grams lighter than the massive crown.
QSP - Quick Service Product
All SR Suntour products are subject to the QSP - Quick Service Product approach. The manufacturer is thus pursuing the principle of bringing simplicity to the design of the products. This ensures fast service without special tools.
EQ - equalization system
With Suntour's EQ system, tuning your fork has never been easier. Just set the right sag and the EQ system will automatically fill the negative spring with the right pressure. This gives you optimal coordination and more time on the trail.
PCS - Piston Compensator System
SR Suntour's PCS system is the result of 17 years of constant development work on the damping cartridges. With this cushioning you have perfect control in every situation.
Q-LOC2 thru axle
Patented quick release system for thru axles, which really deserves the name "fast". A simple push and a small turn of the rotary knob enables the axle to be removed quickly. A clicking sound indicates secure engagement.
intended use : cross country, marathon
E-bike ready: no
Wheel size: 29"
Material fork crown/shaft: aluminium/aluminium
Fork crown diameter: 58 mm
Material standpipes: aluminum, anodized
Standpipe diameter: 34 mm
Material for immersion tubes: magnesium
axle type : 15x110 mm Q-LOC2 thru axle
Steerer tube: 1.5" to 1 1/8" tapered
Steerer tube length: 265 mm
Spring System: Air EQ Equalize System
Adjustment of the spring characteristic: yes, via Air Spring Spacer (optional)
Damping: RLRC-PCS system, low-speed compression and rebound adjustable
Installation height: 531 mm
Brake mount: Postmount (160 mm)
Max. permissible brake disc size: 180 mm
Tire diameter max.: 756
Tire width max.: 63 mm
Colour: grey, black, white-blue glossy decals
Weight according to the manufacturer: 1598g

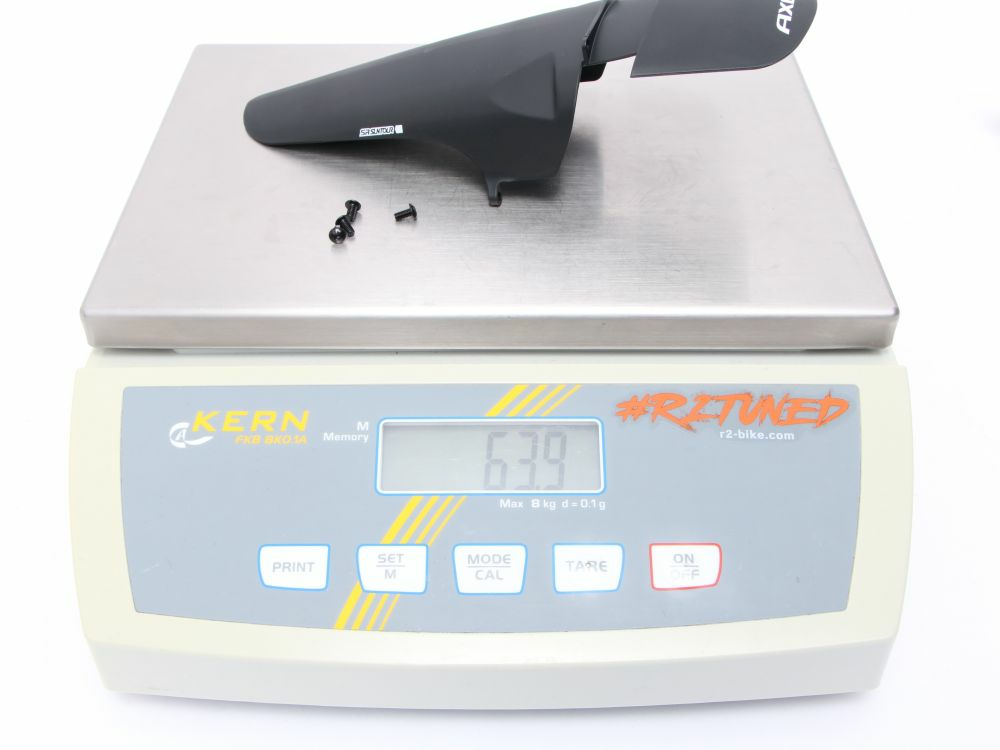

Weight weighed: 1773g (without fender and lockout)

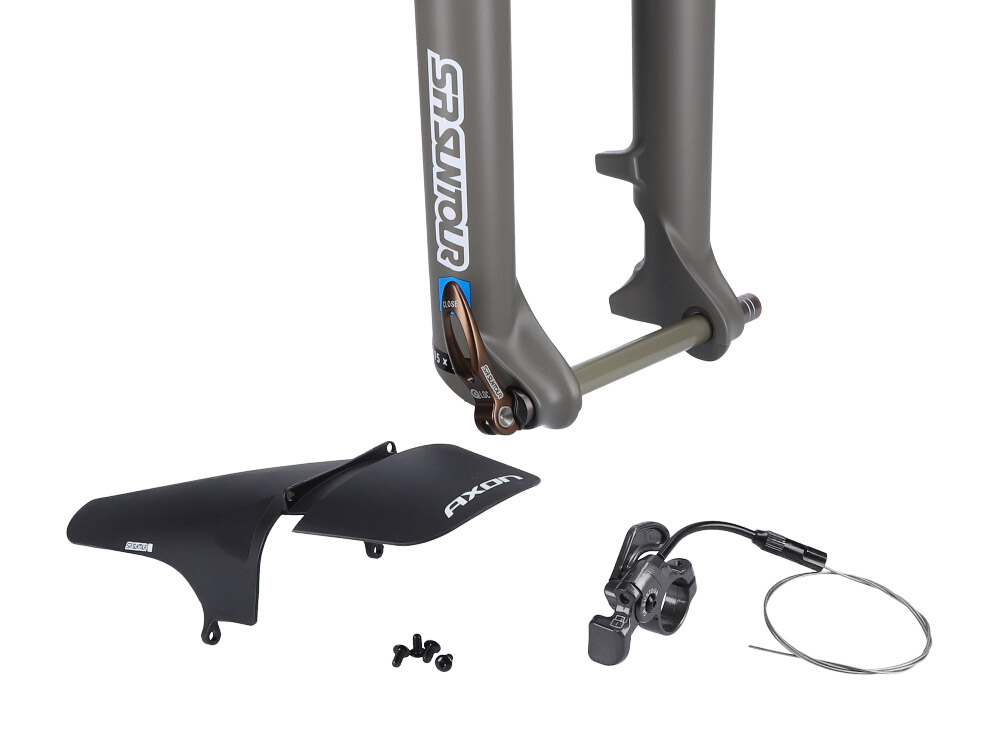

Scope of delivery:
1x SR SUNTOUR suspension fork AXON Elite34 Air EQ RLRC PCS 120 mm 15x110 mm Q-Loc tapered 51 mm offset grey
1x SR SUNTOUR Q-Loc2 titanium thru axle (boost)
1x screw-on mudguard
1x ahead claw

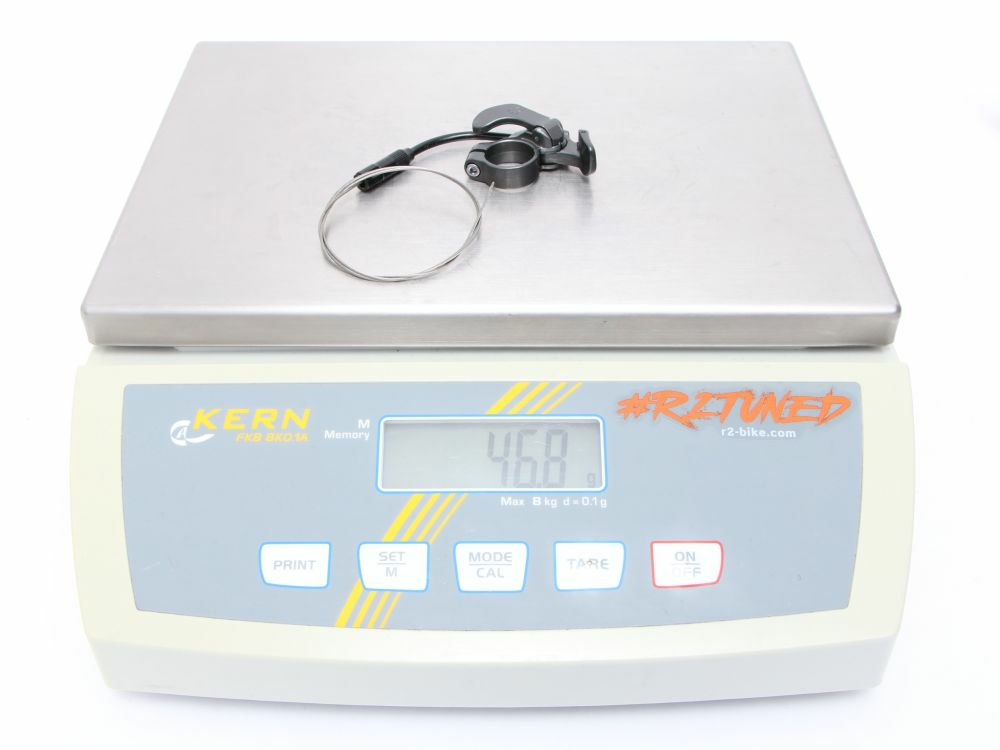

1x SR SUNTOUR Lockout RL handlebar remote
1x user manual
