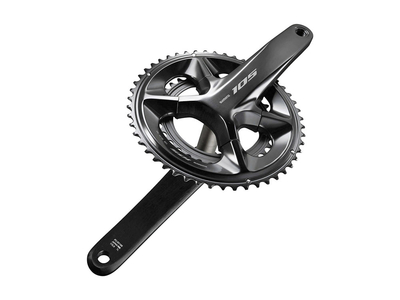

SHIMANO 105 crank FC-R7100 12-speed | 50-34
The wait is finally over. Shimano's racing bike group finally comes for the ambitious hobby cyclist with contemporary Di2 technology and 12-speed speed drive. And all of this at an incredibly affordable price-performance ratio. Nevertheless, no compromises were made in terms of durability and functionality and the Japanese's many years of experience can be seen in every detail.
The 105 crank not only converts your pedal power into propulsion, its high rigidity also ensures extremely fast and precise shifting behavior. This is supported by the optimized tooth design of the chainrings. The latter also increase aerodynamics due to their integrated design. In order to keep the weight as low as possible, the Japanese continue to rely on the tried and tested Hollowtech II design of the crank arms.
Technical data:
intended use : racing bike, gravel
Material crank arms: aluminum
Spider material: aluminum
Crankshaft material: steel
Diameter crankshaft: 24 mm
Crank lengths: 160 mm, 165 mm, 170 mm, 172.5 mm or 175 mm
bolt circle diameter diameter: 110 mm
Spider: 4-arm, asymmetrical
Chainring gradation: 50-34
Chainring screws: aluminum
chain line : 44.5 mm
Q-Factor: 148mm
Compatibility bottom bracket: BSA, ITA, BB30, BB92 etc. (optional, not included)
Compatibility chains: Shimano CN-M9100 12-speed , CN-M8100 12-speed
Driver weight: n/a
Finish: matte
Color: Black
Weight according to manufacturer: kA
Weight weighed: 760g (50-34 teeth; 172.5 mm)
Scope of delivery: 1x SHIMANO 105 crank FC-R7100 12-speed | 50-34 including chainrings, WITHOUT bottom bracket
