Description
ROTOR Power Meter INSpider for Rotor Direct Mount cranks | LK 110 mm
The INSpider power meter fits perfectly into the modular system of the Rotor cranks . With a wide selection of chainrings, crank arms and crankshafts, it is ideal for use on everything from mountain bikes to time trial bikes.
Technically, the INSpider lies between Rotor's 2INpower and INpower power measurement systems. While the INpower only measures the power in one crank arm, the INSpider determines the power of both legs using 4 opposing strain gauges. This enables an exact performance analysis of the pedaling and the possibility to make improvement potential visible. However, the separate analysis of both legs, as is possible with the separate measurement of the 2INpower on both sides, is not possible. The system independently compensates for measurement deviations caused by temperature fluctuations. However, the INSpider should be calibrated manually via a compatible ANT+/Bluetooth bike computer or the Rotor software after mounting or changing the chainrings and at least once a month. Thanks to a completely encapsulated measurement technology, the power meter is insensitive to environmental influences and completely waterproof thanks to a magnetic charging connection. The permanently integrated rechargeable battery ensures an operating time of up to 200 hours.
Another highlight of the system is the TORQUE 360 evaluation option. The torque curve during a pedal revolution can be analyzed using Rotor's in-house software. This measurement technique is particularly valuable for riders who use Rotor's oval Q-ring chainrings. The software can use the OCA (optimized-chainring-angle) system to determine the optimal position of the Q-Rings. So you can put your power even more effectively on the pedal.
Technical specifications:
Area of intended use : road bike, triathlon, MTB, cyclocross, gravel
Material Spider: Aluminum 7075
bolt circle diameter : 110 mm asymmetrical
Chainring mount: 4-hole asymmetrical (Shimano)

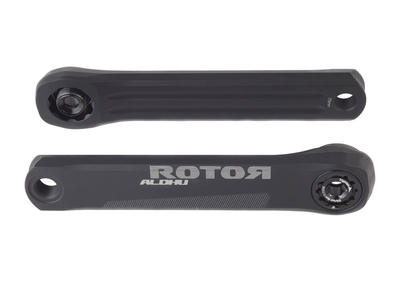

Compatibility crank: Rotor ALDHU | VEGAST | KAPIC | KAPIC Carbon | R-Hawk | R Raptor
Compatibility crankshaft: 24 mm and 30 mm
Compatibility chainrings: Rotor ALDHU 110x4, Rotor 110x4 Aero (1x and 2x), Rotor 110x4 MTB
Technology: Rotor Power Meter, OCP mount
Power meter measuring strips: 4 (counter-rotating)
Transmission standard: Bluetooth, ANT+
Battery: permanently integrated, up to 200 operating hours (can be charged via charging cable)
Color: Black
Weight according to the manufacturer: 149g
Weight weighed: 149g
Scope of delivery:
1x Rotor INSpider power meter
1x charging cable
4x chainring bolts
4x chainring sleeve for 1x chainrings
4x chainring sleeve for 2x chainrings
1x instruction manual
Please note the information on the battery ordinance
