Description
ROCKSHOX suspension fork 700C Rudy Ultimate XPLR Race Day 30 mm 12x100 mm 45 mm offset tapered Kwiqsand | 2022
The new Rudy fork from RockShox is the perfect addition to your gravel bike. It's light, efficient and offers you enough spring travel so you don't lose control off the beaten track. Both the chassis specially designed for Gravel use and the newly designed upper part with 30 mm stanchions, in combination with the SoloAir air spring and the Charger Race Day damper, bring you a perfectly coordinated overall package that reliably gets you to your destination on all your adventures.
solo air
The negative and positive air chambers are filled at the same time using only one valve. Which significantly simplifies the adjustment of the personal set-up.
Charger Race Day
The evolution of the acclaimed Charger damper - the most advanced RockShox technology to date - raises its performance and sophistication to a whole new level of performance. The rebound is individually adjustable and the fork can be locked with the compression. The Charger Race Day is the lightest damping cartridge built by RockShox to date.

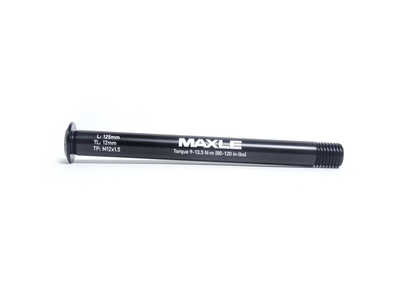

Maxle Stealth
Very light thru-axle, which can be mounted and removed with a 6 mm Allen key. In addition to a clean look, it also saves some weight on the unsprung mass.
Technical specifications:
Area of intended use : Gravel
E-bike ready: yes
Wheel size: 28"
Material fork crown/shaft: aluminum - hollow forged/aluminium
Material standpipes: aluminum, 30 mm straight wall, black anodized (Fast Black)
Material for immersion tubes: magnesium
Axle standard: 12 x 100 mm thru axle type (Maxle Stealth incl.)
Steerer tube: tapered 1.5" to 1 1/8" (28.6 mm to 40 mm)
Steerer tube length: 310 mm
Travel: 30mm
Spring system: SoloAir, adjustment of the spring stiffness via a car valve
Adaptation of the spring characteristic: no
Dampening: Charger Race Day, rebound adjustable
Lockout: on the fork crown
Installation height: 425 mm
Brake mount: Direct Flat Mount (160 mm)
Max. permissible brake disc size: 180 mm
Tire diameter max.: 716 mm
Tire width max.: 50 mm
Offset: 45mm
Color: beige (Kwiqsand,Casting), black anodized stanchions (Fast Black)
Weight according to the manufacturer: 1296g
Weight weighed: 1289g without thru axle
Scope of delivery:
1x ROCKSHOX suspension fork 700C Rudy Ultimate XPLR Race Day 30 mm 12x100 mm 45 mm offset tapered Kwiqsand | 2022
1x Maxle Stealth thru axle
1x Star Nut ahead claw
1x ROCKSHOX fender Rudy XPLR Fender with mounting screws
