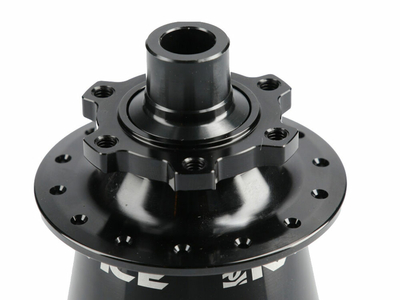

RACE FACE Rear Hub Vault 424J for 12x148 mm BOOST Thru Axle black | Freehub SRAM XD | 28 Hole

Item number:
Product weight: 317 g
Brands: Race Face

337,50 €
MSRP: 399,00 €
You save 15,41%, that is 61,50 €

including 19% VAT. , excl. Shipping costs / shipping time info

1 week
Credit Card, PayPal, Amazon...
Secure Transaction
Refund within 100 Days
Free Return

Product details


RACE FACE rear hub Vault 424J for 12x148 mm BOOST thru axle black | Freewheel SRAM XD | 28 holes

The Race Face Vault hubs not only stand out due to their beefy look, they also impress with their inner values. With 120 locking points per wheel revolution, the Vault hubs are among the finest toothed hubs on the market. This enables an extremely direct start. Especially on technically demanding uphill sections, this can make the difference between pushing and driving. The fine toothing is achieved by means of a pawl freewheel with six double-toothed pawls and a toothed lock washer with 60 locking points, into which three pawls engage at the same time. The low resistance of the pawl springs ensures low mechanical resistance.

The oversized hub shell offers an extremely high degree of rigidity for the construction of robust and durable wheels. It also houses four 6902 industrial bearings, which have a very high durability thanks to their large balls. This is also ensured by the large distance between the bearing seats, which reduces the forces acting on the bearings. The smooth-running labyrinth rubber seals ensure high protection in adverse external conditions. The end caps of the Vault hubs can be exchanged without tools for easy conversion of the hubs to other axle type standards.

Technical specifications:

intended use : Enduro, All Mountain, Trail, Downhill
Material: aluminum, steel
axle type : 12x 148 mm BOOST thru axle
Number of holes: 28 holes
Brake disc mount: 6-hole (IS2000)
Freewheel compatibility: 11-speed and 12-speed SRAM XD (XX1, X01, X1, GX, Eagle)
Freewheel type: 6 pawls with 2 teeth each, 120 locking points
bearing : industrial ball bearing , 4x 6902
Seal: low drag labyrinth seals
Spoke type: Standard spokes (J-Bend)
Spoke tension: max. 1200 N
maximum rider weight: not specified
Color: Black

Weight: 317g

Scope of delivery: 1x Race Face Vault 424J rear hub

quick start Guide

RACE FACE Vault hub
