Description
PROLOGO saddle dimension NDR 143 mm 4.0
The Dimension is an innovative saddle that combines comfort and performance.
It is suitable for many applications thanks to its design, size and ergonomic shape. The combination of a short nose and the PAS system ensures plenty of comfort, even on longer tours. The wider seat area (143 mm) also enables better distribution of body weight. Designed as a unisex saddle, it is equally suitable for men and women.
T4.0 Rail
Frame made of chrome-molybdenum steel with a hardness of HRC 39 and a thickness of +/-2 mm, T4.O represents the high compromise between mechanical properties and high torsional rigidity.
Carbon Fiber Injection saddle shell
A manufacturing process developed by Prologo to create an injection molded carbon fiber saddle shell that forms the base of the saddle. This process increases the stability of the saddle shell with a 15% lower weight and improves the surface of the entire saddle.
PAS system
An ergonomic channel in the saddle shell minimizes peak loads in the sensitive pelvis and crotch area. This also ideally counteracts pressure or friction-related numbness.
Technical specifications:
intended use : road bike & MTB
Saddle Shell: Carbon Fiber Injection
Frame: T4.0 (chromium-molybdenum steel)
Saddle cover: Microfiber
Length: 245mm
Width: 143mm
Height: 65 mm (lower edge of frame/upper edge of shell)
Strut diameter: around 7 x 7 mm
Saddle frame adjustment range: 65 mm
maximum driver weight: kA
Max. permissible tightening torque: 12 Nm
Finish: faux leather
Colour: anthracite, black
Weight according to the manufacturer: 221g

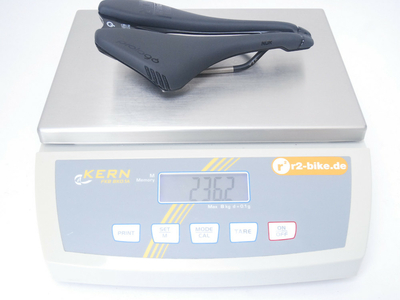

Weight weighed: 236g
Scope of delivery: 1x saddle PROLOGO Dimension NDR 143 mm 4.0
