Description

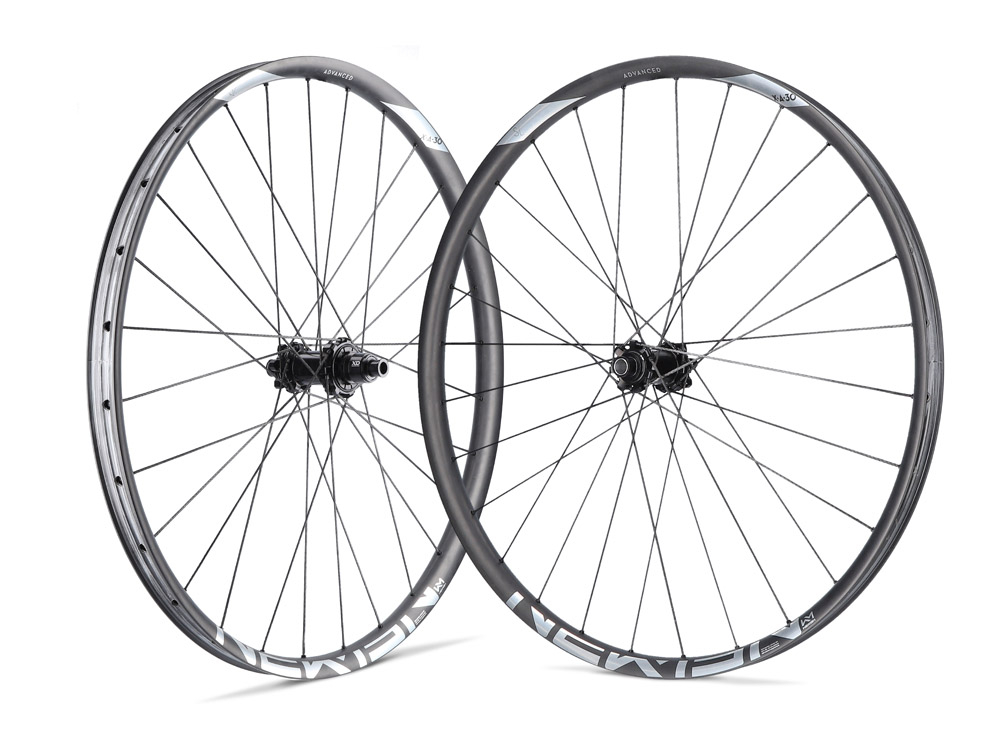

PI ROPE wheelset 29" FADE 6-hole Advanced SL XA30 Carbon | Black Premium Edition
A cross country wheelset with textile spokes, can that work? So far, there have been many approaches from well-known manufacturers, but all of them have produced unsatisfactory results. The young and extremely innovative think tank PI ROPE from Chemnitz, Saxony, has made the impossible possible in cooperation with the Technical University of Chemnitz. The result is a textile spoke made of braided Vectran synthetic fibers.
The material is extremely robust, resistant to aging and weathering, and has better mechanical properties than its steel counterpart. The tensile strength and damping is many times higher, but the weight of the fibers is five times lower. These are optimal prerequisites for a very light, but nevertheless hard-wearing wheel, as the rotating masses are minimized in the important outer areas and the flexibility of the Vectran textile spokes prevents permanent plastic deformation at high peak loads.
Thanks to the new, black PI PROTECT coating of the Vectran yarn before the braiding process, the properties of the textile spokes are improved. The treated surface not only looks good, it also offers better UV protection and reduces the impact of adverse weather conditions.
In addition, the abrasion resistance against external damage, such as that caused by stones and branches on the trail, increases. Mechanical loads that occur are better absorbed and ensure greater durability. The resulting increase in rigidity is particularly noticeable when cornering. Another plus, the processing of the textile spoke could be qualitatively optimized again.

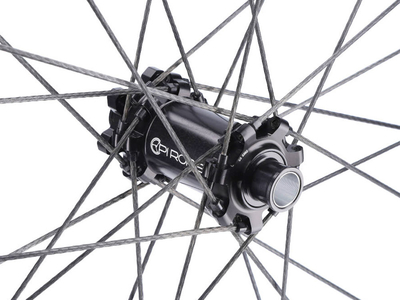

The hubs, which can accommodate the special ends of the PI ROPE spokes, were specially developed in cooperation with the well-known component manufacturer NEWMEN. The long-lasting bearings are pressed in precisely and stress-free at the factory, so that the often tedious adjustment of the axial bearing clearance is no longer necessary. This has increased the level of user-friendliness. The design of the freewheel is completely different from the previous model. The goal was low noise. The result was the FADE ratchet system. 3 pawls engage in a new type of tooth profile. To increase durability, the diameter was enlarged and the individual pawls were short and wide. Thus, the resulting forces are distributed over a larger area and the hub is even released for e-bikes and tough enduro use.
Like all Newmen carbon rims, the built-in Nemwen Advanced SL XA30 rims are made of high-end UD fibers and impress with their first-class mechanical properties and extremely low weight. They are the ideal basis for a lightweight cross country wheelset.
The hookless construction predestines them for tubeless use. The significantly reinforced rim flange withstands possible punctures better and allows driving with little air pressure. In order to avoid weak points and increase the service life, the spoke holes were drilled using a special method. The inner width, which is very large for cross-country rims, also gives wide tires a reliable hold. The shape of the tire is rounder due to the flanks being placed slightly outwards, which means that a significantly better cornering grip and increased safety are achieved.
Technical specifications
intended use : Cross Country
Wheel size: 29" (ETRTO: 622 x 30 mm)
Rim Type: Clincher (clincher and folding)
Brake type: only for disc brake
Material hub: aluminum, steel
Material rim: carbon
Material spoke: Vectran synthetic fiber
Internal width: 30mm
Outer width: n/a
Rim Height: 20mm
Number of holes: 28 holes (per rim)
Spokes: 56x Pi ROPE Vectran PI Protect textile spokes / straight pull (black)
Axle standard front: axle type mm BOOST
Rear axle type standard: 12x148 mm BOOST
Brake disc mount: 6-hole
Front bearing : Industrial deep groove ball bearing
bearing at the back: industrial deep groove ball bearing
Freewheel compatibility: 9-, 10-, 11-speed MTB Shimano | SRAM, 11-, 12-speed SRAM XD or 12-speed Shimano Micro Spline
Freewheel type: 3 pawls, 36 detents
recommended tire width: 58 - 66 mm
maximum tire pressure: 2.5 bar
tubeless capable: yes
maximum system weight: 125 kg (rider, bike, clothing and possibly luggage)
Valve hole: Presta valve (SV)
Color rims: black UD matt with silver-grey decals
Color spokes: black
Color hubs: black, logos grey
Weight according to the manufacturer: 1170g

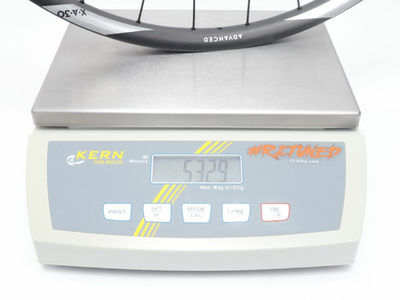

Weight weighed: 1210g (LRS, SRAM XD), 533g (front wheel), 678g (rear wheel)
Scope of delivery:
1x PI ROPE wheelset 29" FADE 6-hole Advanced SL XA30 Carbon | Black Premium Edition
1x spare spoke
1x tube of care oil for textile spokes
