Description
NOTUBES rim 29" ZTR Flow MK4
Since 2007, the Flow rim has helped riders around the world progress, push boundaries and push the boundaries of what's possible on their bikes.
The original Flow was light, wide, tubeless and stable. It redefined enduro mountain bike rims and played a role in the evolution of this type of bike. The current Flow MK4 relies on a rim bed with an inner width of 30 mm, an asymmetrical profile for even spoke tension and the patented Bead Socket Technology for the simplest tubeless setup and the most reliable, airtight performance on the trail.
Durability and an uncanny sense of control on the trail have made Flow rims the preferred choice of numerous Red Bull Rampage riders, and the Flow MK4 goes even further. The Flow MK4's reinforced spoke bed combined with the staggered holes of the asymmetrical design results in an incredibly durable wheel that provides extra confidence on every ride.
Unlike many other asymmetric rims, the Flow MK4's BST asymmetric shape is designed to provide equal resistance to dents and tire beading on both sides of the rim, even in the worst rock gardens and in the hardest corners.
Technical specifications:
intended use : Trail, Enduro, Free Ride
Material: aluminum
Rim Type: Clincher
Brake type: only for disc brake
ETRTO: 622x30
EARTH: 600mm

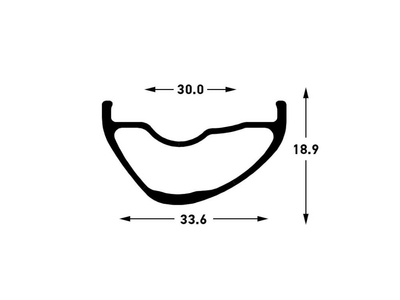

Inner Width: 30mm
External width: 33.6mm
Rim Height: 18.9mm
Offset: 3mm (asymmetric)
Number of holes: 32 holes
tubeless capable: yes
ASTM classification: -
recommended tire width: 2.30" - 2.60"
maximum tire pressure: 2.3" - 39psi | 2.6" - 34psi
maximum system weight: -
maximum spoke tension: 1275N
Features: BST-Asymmetric Technology, WIDERIGHT rim design
Recommended tubeless tape width: 33 mm
Valve hole bore: 6 mm (SV)
Finish: matte
Color: Black
Weight according to the manufacturer: 521g
Weight weighed: 519g
Scope of delivery: NOTUBES rim 29" ZTR Flow MK4
