Description

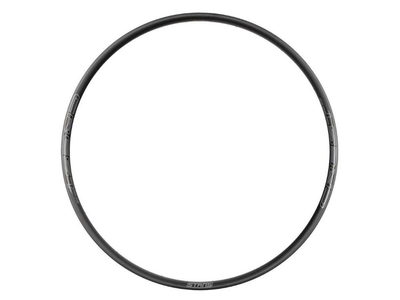

NEWMEN rim 29" Evolution XA25 aluminum | 28 holes
This aluminum rim was developed for riders who want to throw themselves into XC races with extremely stable wheels. Like all Newmen Evolution components, the rim consists of a high-strength 6061 aluminum alloy, is light and impresses with first-class mechanical properties.
25 mm inner width is the ideal compromise between width and weight and allows lower tire pressure, which is reflected in better grip and more comfort. The flared and reinforced rim flanges are more resistant to puncture damage. They also give the tire a rounder shape and thus even better cornering.
The rim profile with the straight nipple contact surface is specially designed for the use of specially developed washers (MG washer) and ensures very high "spoke pull out" values with a low wall thickness in this area.
Technical specifications:
intended use : Cross Country, Trail
Material: 6061 aluminum
Rim Type: Clincher (clincher and folding)
Brake type: only for disc brake
ETRTO: 622x25
EARTH: n/a
Inner width: 25 mm
Outer width: n/a
Rim Height: 17.5mm
Offset: no
Number of holes: 28 holes
tubeless capable: yes
ASTM classification: n/a
recommended tire width: 35 mm (1.4") - 61 mm (2.4")
maximum tire pressure: 3.5 bar (50 psi) with a tire width of 35 mm
Maximum system weight: 130 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: 1200N
Features: optional MG washers are required
Finish: Anodized
Colour: black with white and gray decals
Weight according to the manufacturer: 400g
Weight weighed: 439g
Scope of delivery: 1x NEWMEN rim 29" XA25 aluminum | 28 holes
Note: The special washers (MG washers) required to build a wheel must be ordered separately and are not included in the scope of delivery!
