Description
NEWMEN rim 27.5" Evolution SL EG30 aluminum e-bike | 32 holes
This rim deserves the title indestructible. It is the perfect basis for a stable e-bike or all-mountain wheelset. With this you can plunge into the adventure without any worries.
The resistance to possible damage after punctures is 40% better than the already very solid SL A.30. Compared to rims of the same weight class, the rim flanges are much more massive and therefore more robust. Of course, the EG30 also have a completely edge-free outer contour and flared rim flanks, which give the tire a rounder shape and thus give it even more cornering grip and comfort.

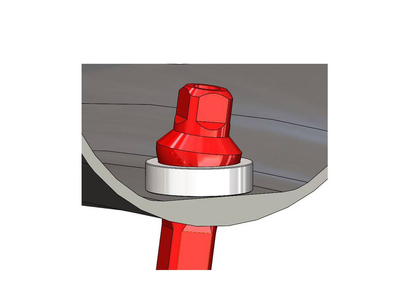

The rim profile with the straight nipple contact surface is specially designed for the use of specially developed washers (MG washer) and ensures very high "spoke pull out" values with very low wall thickness in this area.
Technical specifications:
Area of intended use : e-bike, all-mountain, enduro
Material: aluminum
Rim Type: Clincher (clincher and folding)
Brake type: only for disc brake
ETRTO: 584x30
EARTH: n/a
Inner Width: 30mm
Outer width: n/a
Rim Height: 20mm
Offset: no
Number of holes: 32 holes
tubeless capable: yes
ASTM classification: n/a
recommended tire width: 58 - 66 mm
maximum tire pressure: 2.5 bar
Maximum system weight: 180 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: 1200N
Features: MG Washer
Finish: Anodized
Colour: black with white and gray decals
Weight according to the manufacturer: 550g
Weight weighed: 550g
Scope of delivery: 1x NEWMEN rim 27.5 "Evolution SL EG30 aluminum e-bike | 32 holes, without MG washer
A notice:
The special washers (MG washers) required to build a wheel must be ordered separately and are not included in the scope of delivery!
